Touch Screen Cyclic Salt Spray Test Chamber / Salt Fog Corrosion Test Machine

China Touch Screen Cyclic Salt Spray Test Chamber / Salt Fog Corrosion Test Machine supplier
Touch Screen Cyclic Salt Spray Test Chamber / Salt Fog Corrosion Test Machine supplier Touch Screen Cyclic Salt Spray Test Chamber / Salt Fog Corrosion Test Machine supplier

Large Image :  Touch Screen Cyclic Salt Spray Test Chamber / Salt Fog Corrosion Test Machine

Product Details:

Place of Origin: CHINA MAINLAND
Brand Name: KOMEG
Certification: CE CERTIFICATE
Model Number: HL-90-BS

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: 1100 ~6800 USD / SET
Packaging Details: Packed in carton firstly, and then reinforced with plywood case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 SETS PER YEAR
Contact Now
Detailed Product Description
Power: Electronic Temperature Range (Testing Space): 35±1℃~50±1℃
Testing Room Relative Humidity: > 85% Usage: Salt Spray Test Chamber
PH: 6.5~7.2; 3.0~3.2 Air Compressor: 1/2 HP
Power Supply: AC220V 50Hz Volume: 270L
Test Applicable: NSS, ACSS,CASS,CORK Package: Plywood



Touch-Screen Cyclic Salt Spray Test Chamber Salt Fog Corrosion Test Machine





Configured for your specific tests


KOMEG makes rain and spray testing easier by offering a standard chamber capable of published and OEM proprietary test methods.
The standardized design can be configured for the rain/spray tests you need, eliminating the guesswork in buying a chamber. The system is based on the specification requirements, and can also accomplish individual automaker’s tests, as well as electrical-enclosure tests.



Our Design



KOMEG's modular design allows you to add on additional features, depending on the number and type of tests required. One possible choice is to integrate the spray system with a regular temperature and humidity chamber to save money and floor space, while also creating an opportunity to simulate actual operating conditions your product may experience.

Our system uses multiple control solenoids to vary the water's spray volume/pressure. A holding tank prepares the water to the desired temperature, if required. A pump ensures the water is delivered in the proper pressure range. The water is fed to a motorized manifold that rotates the spray arms. Each spray arm has an adjustable valve to allow finer control of the spray.



Testing capabilities



The specification is modeled after and doesn’t differ greatly. Details about the nozzle types and the rotating nature of the spray arms and product table are also included in the requirements. Additionally, drip and car wash tests are also specified.





Specifications:


Specifications (Note: We reserve the right to change specifications without prior notice)
Model HL-160-NS HL-120-BS HL-90-BS HL-60-SS
Interior dimensions(W*H*D)mm 1600 X 500 X 1000 1200 X 500 X 800 900 X 500 X 600 600 X 400 X 450
Exterior dimensions(W*H*D)mm 2240 X 1500 X 1600 1410 X 1280 X 880 1460 X 1280 X 910 1130 X 1070 X 630
Testspace Volume(L) 800 480 270 108
Salt Water Tank Volume (L) 60 40 25 15
Heater 15KW+1KW 11KW+1KW 7KW+0.75KW 3KW+0.75KW
Air compressor 2HP 2HP 1/2HP 1/2HP
Temp. range (Testing barrel) 35±1℃~50±1℃
Temp. range (Pressure barrel) 47±1℃~63±1℃
Test applicable NSS, ACSS,CASS,CORK
Pressed Air Pressure 1.00±0.01kgf/cm²
Spray Amount 1.0~2.0ml/80cm²/h(Collect at least 16 hours, take the average)
Ambient Relative Humidity More than 85%R.H.
PH Value 6.5~7.2 3.0~3.2
Spraying Manner Programmable Spraying
Power AC220V 1Φ 50Hz

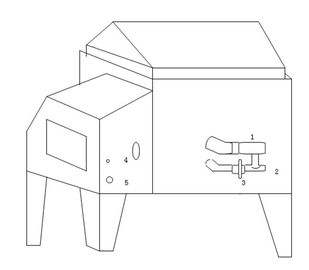

Structure(figure1)



Touch Screen Cyclic Salt Spray Test Chamber / Salt Fog Corrosion Test Machine

Instruction:



(1) Spray tower



(2) Funnel cup



(3) Touch screen controller



(4) Regulator



(5) Pressure gauge



(6) Metering cylinder



Controller(figure 2)



Touch Screen Cyclic Salt Spray Test Chamber / Salt Fog Corrosion Test Machine



Controller instruction:



(1)Chamber real-time temperature



(2)Chamber temperature setting



(3)Actual test time



(4)Test time setting



(5)Accumulative time



(6)Power swithch



(7)Machine start/stop working button



(8)Spray start/pause button



(9)Test chamber low water alarm



(10)Defog after test



(11)Salt water tank low water alarm



(12)Reduce setting value



(13)Increase setting value



(14)Pressure barrel low water alarm



(15)Non-spray time setting



(16)Spray time setting



(17)Pressure barrel temperature setting



(18)Pressure barrel real-time temperature





Control system:



Test chamber temperature control: Control the chamber temperature , according to standard, NSS AASS test is 35℃,and CASS test is 50℃.



Pressure barrel temperature control:Control the saturated air barrel temperature, NSS AASS is 47℃,CASS test is 63℃.



NSS AASS Test:Chamber temperature set 35℃, Pressure barrel temperature set in 47℃(40℃-50℃).



CASS test :Chamber tember temperature set 50℃, Pressure barrel temperature set 63℃(60℃-70℃).



Power switch:Control the whole machine power. Long press for power on or off.



Start/stop switch:Control the heating system of test chamber, heat sink and Pressure barrel.

Spray/pause switch:control the spray system.



Defog switch:control defog system, clear the salt mist in chamber after test.



Test chamber low water alarm:When the water level is low, the light will flicker . Add pure water into the test chamber until the light doesn,t flicker.



Salt water tank low water alarm:When the salt water level is low, the light will flicker.Add salt water into the salt water tank until the light doesn,t flicker.



Pressure barrel low water alarm:When the water level is low, the light will flicker.Add pure water into the pressure barrel nutil the light doesn,t flicker.





Illustration on the back of the salt spray tester



Touch Screen Cyclic Salt Spray Test Chamber / Salt Fog Corrosion Test Machine



Touch Screen Cyclic Salt Spray Test Chamber / Salt Fog Corrosion Test Machine



Company information



KOMEG offers the newest and most modern salt fog testing chambers for your testing requirements. KOMEG salt spray test chambers are offered in 60 Liter, 270 Liter, 800 Liter and 960 Liter models and are cost effective solutions to acceleratedcorrosion testing of samples in salt fog. Models have an uncomplicated design that has optimized the openarea to maximize the number of test coupons while providing headroom for testing large and bulky objects



Touch Screen Cyclic Salt Spray Test Chamber / Salt Fog Corrosion Test Machine



Our Services


We are on line 24 hours, your any questions will get timely effective treatment and recovery.





Transport



Depending on the size of the order and its destination, we will find the most efficient way of delivering your order. Collect shipments through your account at UPS, FedEx, freight forwarder of choice or other can also be arranged. Let us know of such arrangements with your Purchase Order.

Quotes and Orders do not include customs duties and taxes as they vary from country to country and are the sole responsibility of the buyer.





FAQ



1. Q: Have your machine met relevant standards, and with relevant TEST CERTIFICATE?

A: Yes, our machines are manufactured according to International Standards. If TEST CERTIFICAT required, it can be offered.



2. Q: How-to vedio provided?

A : Yes, if required, our engineers will record a specialize how-to video for you.



3. Q: Is the machine made in your own plant?

A: Yes, welcome to visit our plant(factory), also we support OEM and ODM.



4. Q:How you do the maintenance oversea?

A: In the way you are convenient, by Telephone or E-mail or Vedio meeting etc.



Touch Screen Cyclic Salt Spray Test Chamber / Salt Fog Corrosion Test Machine



SALT SPRAY TEST CHAMBER Brochure -KOMEG.pdf
