Electronic Salt Spray Test Machine , Astm Corrosion Testing Environmental Test Chambers

China Electronic Salt Spray Test Machine , Astm Corrosion Testing Environmental Test Chambers supplier
Electronic Salt Spray Test Machine , Astm Corrosion Testing Environmental Test Chambers supplier Electronic Salt Spray Test Machine , Astm Corrosion Testing Environmental Test Chambers supplier

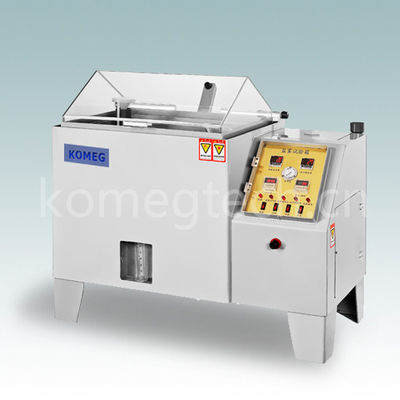

Large Image :  Electronic Salt Spray Test Machine , Astm Corrosion Testing Environmental Test Chambers

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: ISO,
Model Number: HL-90-BS

Payment & Shipping Terms:

Minimum Order Quantity: 1 units
Price: 1100 ~1800 USD / SET
Packaging Details: Packed in carton firstly, and then reinforced with plywood case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, negotiable
Supply Ability: 1000 SETS PER YEAR
Contact Now
Detailed Product Description
Material: PVC Temperature Range (Testing Space): 35±1℃~50±1℃
Volume: 270L Air Compressor: 1/2 HP
Power: AC220V 50Hz Type: Simulation Test Chamber
Temp. Range (Pressure Barrel): 47±1℃~63±1℃ Test Applicable: NSS, ACSS,CASS,CORK


Electronic salt spray testing machine Simulation Test Chamber





KOMEG offers the newest and most modern salt fog testing chambers for your testing requirements. KOMEG salt spray test chambers are offered in 60 Liter, 270 Liter, 800 Liter and 960 Liter models and are cost effective solutions to acceleratedcorrosion testing of samples in salt fog. Models have an uncomplicated design that has optimized the openarea to maximize the number of test coupons while providing headroom for testing large and bulky objects.

Ergonomic design
The KOMEG Salt Spray Chambers are floor standing units with lockable wheels (big models) to allow easy andsecure repositioning. Height and reach distances provide easy access for loading and unloading couponsamples into removable slotted racks. An optional reinforced false floor is available to easily locate bulkyand heavy test items.

Accessibility
The Salt Spray chambers have an uncomplicated design that optimizes the open area tomaximize the number of test samples while providing ample room for testing large and bulky items.

Visibility
There are two kinds of material for the gabled canopy. One is the transparent material for the small model allowing full visibility inside the chamber. The other is the fully insulated covering with inspection window that will ensure the chamber achieves maximum operating temperature if thechamber is located in a cool laboratory environment.


Clean operation
The combined water drain and fog vent removes the test water and fog from thechamber to prevent salt fog escape into the test lab atmosphere when the canopy is opened.

Long chamber life
The chambers are made of hard PVC that stands up to the relentlessattack of the corrosive test environment.

Price
These chambers are one of the most cost effective corrosion test models in the marketplace.



2. Specifications:


Specifications (Note: We reserve the right to change specifications without prior notice)
Model HL-160-NS HL-120-BS HL-90-BS HL-60-SS
Interior dimensions(W*H*D)mm 1600 X 500 X 1000 1200 X 500 X 800 900 X 500 X 600 600 X 400 X 450
Exterior dimensions(W*H*D)mm 2240 X 1500 X 1600 1410 X 1280 X 880 1460 X 1280 X 910 1130 X 1070 X 630
Testspace Volume(L) 800 480 270 108
Salt Water Tank Volume (L) 60 40 25 15
Heater 15KW+1KW 11KW+1KW 7KW+0.75KW 3KW+0.75KW
Air compressor 2HP 2HP 1/2HP 1/2HP
Temp. range (Testing barrel) 35±1℃~50±1℃
Temp. range (Pressure barrel) 47±1℃~63±1℃
Test applicable  NSS, ACSS,CASS,CORK
Pressed Air Pressure 1.00±0.01kgf/cm²
Spray Amount 1.0~2.0ml/80cm²/h(Collect at least 16 hours, take the average)
Ambient Relative Humidity More than 85%R.H.
PH Value 6.5~7.2   3.0~3.2
Spraying Manner Programmable Spraying
Power AC220V 1Φ 50Hz





3. Standards implemented and met:
1) GB/T 2423.17-1993 salt spray test
2) GB/T 2423.18-2000 salt spray test
3) GB/T 10125-1997 salt spray test
4) ASTM.B117-97 salt spray test
5) JIS H8502  salt spray test
6) IEC68-2-11 salt spray test
7) IEC68-2-52 1996 salt spray test
8) GB.10587-89 salt spray test
9) CNS.4158 salt spray test
10) CNS.4159 CASS Copper accelerated acid salt spray test
11) GB/T 12967.3-91 CASS Copper accelerated acid salt spray test


4. Salt Water Spray Test Chamber's Features:

A. The whole part of the device is made of P.V.C. Sheet and the inside of the device is reinforced by using a special lining material. Hence, it is sturdily made and will not transform forever.
B. The test chamber is heated from five directions in order to ensure the temperature difference in the chamber may be kept within (± 1℃).
C. Spray nozzle: The nozzle is specially made to enable it to suck up the salt water and then spray it out in the shape of mist with considerable high speed. When it falls on the surface of the item being tested, the difference of fallen mist may be controlled within ± 0.3ml / 80 cm2h.
D. HUNTER PRINCIPLE is used to make the saturated air hot and moist and to keep the humidity in the test chamber required for test.
E. Temperature is the pre-requisite condition that with have direct impact on corrosion rate. We use P.I.D. temperature control unit to limit the temperature difference within the range of ± 0.5℃.
F. A warning device is used to indicate the low level of the test fluid, when the fluid is only enough for being sprayed for five hours, a buzzer will remind the user to replenish the liquid to ensure continuous spray test.
G. Use full automatic detecting system, test stopped automatic, and lighting display when trouble.

5. Combined Cycle Tester System Diagram

Electronic Salt Spray Test Machine , Astm Corrosion Testing Environmental Test Chambers




6. Salt Spray Test Chamber System Diagram
Electronic Salt Spray Test Machine , Astm Corrosion Testing Environmental Test Chambers



7. Salt Spray Testing working Principle

  • Salt Spraying Process

Electronic Salt Spray Test Machine , Astm Corrosion Testing Environmental Test Chambers





  • Humidifying Process

Electronic Salt Spray Test Machine , Astm Corrosion Testing Environmental Test Chambers





  • Drying Process


Electronic Salt Spray Test Machine , Astm Corrosion Testing Environmental Test Chambers
