|Power:||Electronic||Temperature Range (Testing Space):||35±1℃～50±1℃|
|Testing Room Relative Humidity:||> 85%||Usage:||Salt Spray Test Chamber|
|PH:||6.5~7.2; 3.0~3.2||Air Compressor:||1/2 HP|
|Power Supply:||AC220V 50Hz||Volume:||270L|
|Test Applicable:||NSS, ACSS,CASS,CORK||Package:||Plywood|
Vertical Type Anti-aging Salt Spray Test Universal Testing Machine HL-90-BS
Salt cycle corrosion chamber is used to create and maintain the salt spray (fog) test environment, and test the anti-corosion quality of the materials surfaces, and is suitable for researching materials, light industry, electronics, instrumentation and other industries a variety of products
|Specifications (Note: We reserve the right to change specifications without prior notice)|
|Interior dimensions(W*H*D)mm||1600 X 500 X 1000||1200 X 500 X 800||900 X 500 X 600||600 X 400 X 450|
|Exterior dimensions(W*H*D)mm||2240 X 1500 X 1600||1410 X 1280 X 880||1460 X 1280 X 910||1130 X 1070 X 630|
|Salt Water Tank Volume (L)||60||40||25||15|
|Temp. range (Testing barrel)||35±1℃～50±1℃|
|Temp. range (Pressure barrel)||47±1℃～63±1℃|
|Test applicable||NSS, ACSS,CASS,CORK|
|Pressed Air Pressure||1.00±0.01kgf/cm²|
|Spray Amount||1.0~2.0ml/80cm²/h(Collect at least 16 hours, take the average)|
|Ambient Relative Humidity||More than 85%R.H.|
|PH Value||6.5~7.2 3.0~3.2|
|Spraying Manner||Programmable Spraying|
|Power||AC220V 1Φ 50Hz|
(1) Spray tower
(2) Funnel cup
(3) Touch screen controller
(5) Pressure gauge
(6) Metering cylinder
(1)Chamber real-time temperature
(2)Chamber temperature setting
(3)Actual test time
(4)Test time setting
(7)Machine start/stop working button
(8)Spray start/pause button
(9)Test chamber low water alarm
(10)Defog after test
(11)Salt water tank low water alarm
(12)Reduce setting value
(13)Increase setting value
(14)Pressure barrel low water alarm
(15)Non-spray time setting
(16)Spray time setting
(17)Pressure barrel temperature setting
(18)Pressure barrel real-time temperature
Test chamber temperature control: Control the chamber temperature , according to standard, NSS AASS test is 35℃,and CASS test is 50℃.
Pressure barrel temperature control:Control the saturated air barrel temperature, NSS AASS is 47℃,CASS test is 63℃.
NSS AASS Test:Chamber temperature set 35℃, Pressure barrel temperature set in 47℃(40℃-50℃).
CASS test :Chamber tember temperature set 50℃, Pressure barrel temperature set 63℃(60℃-70℃).
Power switch:Control the whole machine power. Long press for power on or off.
Start/stop switch:Control the heating system of test chamber, heat sink and Pressure barrel.
Spray/pause switch:control the spray system.
Defog switch:control defog system, clear the salt mist in chamber after test.
Test chamber low water alarm:When the water level is low, the light will flicker . Add pure water into the test chamber until the light doesn,t flicker.
Salt water tank low water alarm:When the salt water level is low, the light will flicker.Add salt water into the salt water tank until the light doesn,t flicker.
Pressure barrel low water alarm:When the water level is low, the light will flicker.Add pure water into the pressure barrel nutil the light doesn,t flicker.

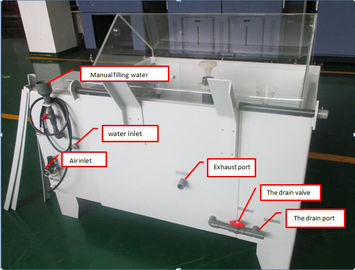

Illustration on the back of the salt spray tester
