Stainless Steel Thermal Shock High Low Test Chamber Driving Force Temperature Equipment

China Stainless Steel Thermal Shock High Low Test Chamber Driving Force Temperature Equipment supplier
Stainless Steel Thermal Shock High Low Test Chamber Driving Force Temperature Equipment supplier Stainless Steel Thermal Shock High Low Test Chamber Driving Force Temperature Equipment supplier

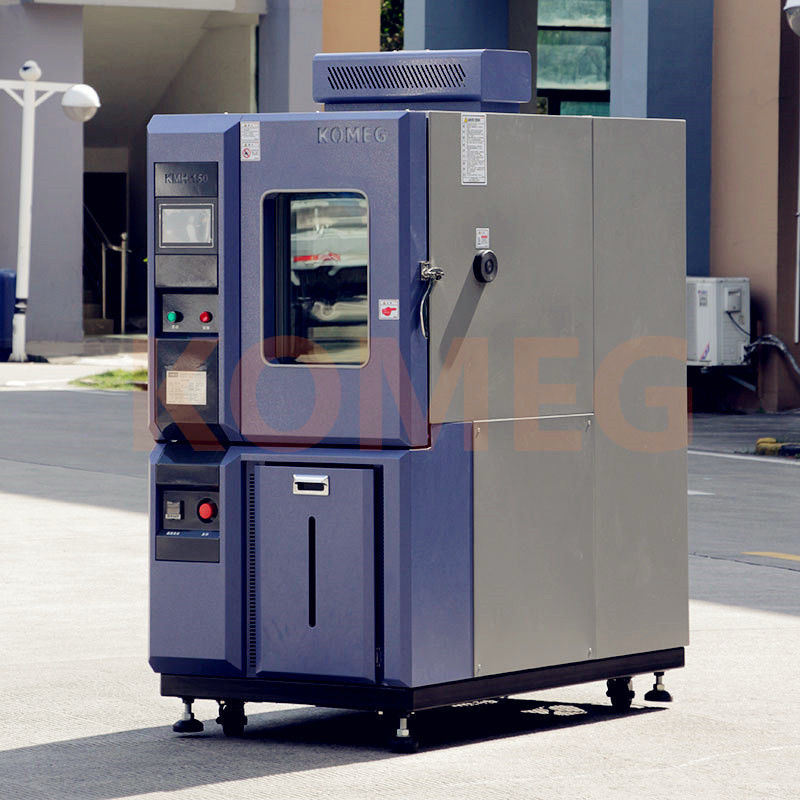

Large Image :  Stainless Steel Thermal Shock High Low Test Chamber Driving Force Temperature Equipment

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: KOMEG
Certification: CE, ISO
Model Number: KMH-1000L

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: 10000-50000USD PER SET
Packaging Details: Packed with film firstly, and then reinforced with wooden case for outer packing
Delivery Time: 25 days upon your deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1, 000 SETS / YEAR
Contact Now
Detailed Product Description
Usage: Temperature Change Test Chamber Insulation Material: Rigid Polyurethane Foam And Glass Fiber Wool
Cooling Mode: Water Cooled Heater: Iron-chrome Wire Heater
Controllor: Touch Screen Programmable Controller Temperature Range: -40 °C To 150 °C
Material: SUS304 Stainless Steel Power Supply: AC 380V±10% 50Hz ,3 Phase 4 Wires +Ground Wires
Exterior Material: Baked Painting Steel Workspace Volume (W X H X D): 1000*1000*1000mm



Stainless Steel Thermal Shock High Low Test Chamber Driving Force Temperature Equipmen





Product Description



Suitable for aerospace products, information electronic instrumentation, materials, electrical, electronic products, all kinds of electronic components in high temperature or in hot and humid environment, test the performance indexes





Main features:



1. LCD touch screen display controller. A lighted Controlpad displays the operating mode.



2. Optimal network: Using interface and web server the authorized user can reach current tests via internet.



3. Test Data, reports, etc. can be managed in the network and the software Simpati can connect and utilize tests.



4. Security, comfort and performance: This chamber is able to maintain demanding climate values also under considerably strain, eg, by midsummer-like ambient temperatures.



5. Reduced upkeep and maintenance costs: Humidity bath purging prevents contamination of humidifier water - cleaning intervals become much longer.



6. The large water tank allows independent operation for several days - even longer test can be realised through an automatic feeding of additional water without interruption.



7. The optimum air flow in combination with an auto-adaptive control system ensures a very homogenous temperature distribution in the test space.



8. The control unit has the functions of multiples segment program editing, and with temperature ramp



9. Temperature heating and cooling rate is from 3°C/min to 15°C/min, as per your specific request.





Parameter Specifications



KMH-R series















Model

KMH-R series

150R

225R

408R

800R

1000R

Temp. range

-20°C ~150°C

Interior size

W(mm)

600

700

700

1000

1000

H(mm)

600

700

750

1000

1000

D(mm)

460

480

800

800

1000

Exterior size

W(mm)

880

980

980

1280

1280

H(mm)

1730

1890

1940

2160

2160

D(mm)

1400

1460

1740

1750

1950

Power(KW)

5.8

6

7.5

12.8

12.8

Weight(KG)

240

280

400

500

580

Humidity uniformity

±3.0%R.H

±5.0%R.H

Heat up time

-20°C ~+100°C ,within 35 min

Pull down time

+20°C ~-20°C , within 45 min

Humidity Range

20~98%R.H

Temp. constancy

±0.5ºC

Humidity constancy

±2.5%R.H

Temp. uniformity

±2.0ºC

Safety device (standard)

NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection

Interior material

Stainless Steel Plate(SUS 304)

Exterior material

Baked Painting Steel Or Stainless steel(SUS304)

Insulation material

Rigid polyurethane Foam and Glass Fiber Wool

Ambient Temp.

+5°C ~+35°C

Wiring method

AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires

Controller

LCD Touch Screen, Chinese or English display selectable

Operation model :Program or fix point running

Memory capacity :120programs,1200steps,

All repeat 999 cycles, part repeat 99 cycles





Secifications ( at +20℃ room temp. Or+25℃ water temp with empty load)

Model

KMH-L series

KMH-150L

KMH-225L

KMH-408L

KMH-800L

KMH-1000L

Interrior material(cm)

60*60*46

70*70*48

70*75*80

100*100*80

100*100*100

Exterrior material(cm)

88*173*140

98*189*146

98*194*174

128*216*175

128*216*195

Weight(Kg)

250

300

420

530

600

Equipment power(KW)

7.5

7.5

8.5

14.5

14.5

Tempeture range

-40 ℃ ~ +150 ℃

Humidity range

20 ~ 98%R.H

Tempeture constancy

±0.5℃

Humidity constancy

±2.5% R.H

Tempeture uniformity

±2.0 ℃

Humidity uniformity

±3.0% R.H(>75%) ±5.0% R.H (≤75%)

Heating rate

-40℃~+100℃ Within 45 minutes

Cooling rate

+20℃~-40℃ Within 60 minutes

Controllor

Touch screen controller English menu Operation mode:setting or program

Refrigeration system

Air cooled (Water Cooled Type is option)

Hermetic compressor, stage refrigeration system

Interior material

Stainless Steel Plate ( SUS 304 )

Exterior material

Baked Painting Steel Or Stainless steel(SUS304)

Insulation material

Rigid polyurethane Foam and Glass Fiber Wool

System

Balanced & Humidity Control System

Wiring method

AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires

Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available



Technical parameters:

Environmental Temperature and Humidity Chamber

Secifications ( at +20°C room temp. Or+25°C water temp with empty load)

Model

KMH-S series

225S

408S

800S

1000S

Interior sizel

W(mm)

700

700

1000

1000

H(mm)

700

750

1000

1000

D(mm)

480

800

800

1000

Exterior size

W(mm)

980

980

1280

1280

H(mm)

1890

1940

2160

2160

D(mm)

1460

1740

1750

1950

Weight(KG)

330

450

550

650

Temp. range

-70 °C ~+150°C

Humidity Range

20 ~ 98&R.H.

Temp. constancy

±0.5ºC

Humidity constancy

±2.5%R.H

Humidity uniformity

±3.0%R.H

±5.0 % R.H

Heat up time

-70°C ~ +100°C , within 60 min

Pull down time

+20°C ~ -70°C , within 80 min

Equipment Power

9.5KW

10.6KW

18.5KW

18.5KW

Ambient Temp.

5ºC ~+35ºC

Standard accessories

Sight window*1, cable port(port 50mm)*1, shelves*2, chamber lamp*1, power cable *2m

Safety device (standard)

No fuse breaker, over pressure over heat and over current protection for compressor,

Over temp. protect, over load protect of blower, dry heat protection

Control System

Balanced Temperature & Humidity Control System

Refrigeration system

Air Cooled (Water Cooled Type is option)

Hermetic compressor,Cascsde Refrigeration

CFC-Free refrigerant(HFC-507/HFC-23)

Controller

Panel:7-inch LCD Touch panel, Chinese or English display selectable

Operation model :Program or fix point running

Memory capacity :120programs,1200steps,

All repeat 999 cycles, part repeat 99 cycles

Interior material

Stainless Steel Plate ( SUS 304 )

Exterior material

Baked Painting Steel Or Stainless steel(SUS304)

Insulation material

Rigid polyurethane Foam and Glass Fiber Wool

System

Balanced & Humidity Control System

Wiring method

AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires

Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available





Company information



Being a first-class supplier and reliable partner, we are certified to ISO 9001 and got CE approval for all our products. All equipment are 7 x 24 hours tested before delivery. That explains why Komeg is the private brand of choice for many well-known brand enterprises, and also one of the very few designated suppliers who were recognized by many top 500 enterprises. Let Komeg's 26 years of professional experience work for you too.

1. Dedicate touch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide range of temperature and humidity environments
4. Capable of testing large components, assemblies and finished products
5. Customized sizes and configurations available
6. One year warranties





Besides this, we have a lot of other chamber for your reference:



3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Vibration Testing Machine( mechanical and electromagnetic)





FAQ





Q1: What is the Warranty for the accelerated aging machine ?



A1: For the accelerated aging machine, we offer 1 years warranty service. If any quality problems on our side occured in this period ,we will send you replacement and cover the cost of shipping and component parts.



Q2: What's the delivery term?



A2: Usually, it takes us 20 - 25 days after order confirmation to produce the equipment and a little bit longer for customization service. While if you are in urgent need, we can make special arrangement to speed up the proceedings. Then we start the shipped by sea, by air freight or by air express.



Q3:What’s the payment term?



A3: T/T, L/C and other payment terms could be negotiated.



Q4:Is it ok for customization service?



A4: Yes, the inner chamber dimensions, structure, color, some special parameters can be customized as per your specific request.
