|Usage:||Universal Testing Machine||Type:||Air-ventilatiion Testing Machine|
|Controller:||LCD Touch Panel Controller||Insulation:||PU&Fiberglass Wool|
|Service:||Customization||Air Change Rate:||5 To 200 (3 To 250) Times/ Hour|
|Warranty:||12 Months||Temp. Range:||Room Temp. +20～+100℃|
|Power:||AC 380±10%50Hz ,3 Phase 4 Wires +Ground Wires||Interior Material:||Stainless Steel Plate(SUS 304)|
Customizable Air Ventilation Aging Test Machine / Air Exchange Type Aging Oven
Ventilation aging chamber for electrical insulating materials, heat resistance test, electronic parts, plastic products, aging tests of ventilation, assessment and determine their storage and use under conditions of high temperature environment adaptability sample simulation after measuring the performance of air at high temperature and atmospheric pressure in aging and unaged sample to be compared with the performance.
Suitable for all kinds of electronic products,expecially for products with heating characteristics
Product and loading area should be separated
|Interior dimensions(W*H*D) mm||1500*1280*550|
|Exterior dimensions(W*H*D) mm||1720*1980*750|
|Temp. range||Room Temp. +20～+100℃|
|Test. capacity||88PCS/CYCLE(Custom made available)|
|Test range||FAN(full machines number)|
|The detection speed||7-12sec/cycle|
1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
1, adopts multi-fin, centrifugal horizontal heat exchange circulation system, fresh air change rate can be adjusted.
2, Internal rotating pan can be conveniently removed or switch to loading shelves, motor rotating speed of hanging shelf is8-10rpm.
3, Equipped with digital watt-hour meter, be able to measure air changing volume.
You are warmly welcomed to KOMEG.
We hope to be your reliable business partner in China.
For our new design can achieve high temp. Unifornity (± 0.5 C ).

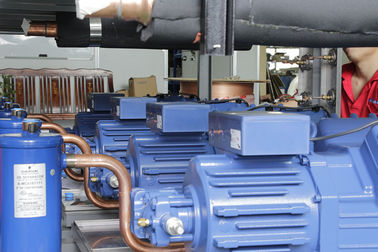

Tecumseh or Danfoss compressor for your alternative choice.
Germany imported wall material make sure the reliability and good performace.
1. Empty burn prevent protection
2. Overtemperature protection
3. Circulating fan overload protection
4. Exhaust fan overload protection
5. Circuit breaker
6. No fuse switch
7. Phase sequence protection
Programmable Temperature & humidity testing Chamber
Triple layer Type Temperature & humidity Chamber
Temperature & humidity Control Host
Air Thermal Shock Tester
Liquid Thermal Shock Tester
Salt Spray Tester
Walk In environmental Testing Room
Temperature & humidity & Vibration Combined Testing Chamber
Aging Oven Tester
Rain/Spray Testing Chamber
Burn-in testing equipment, Dust Tester
Steam Aging Tester, Dispensing Robots
Electromagnetic High Frequency Vibration Tester
Tensile Tester, Drop Tester, Precision Oven Tester, etc.
Q1: What is the Warranty?
Generally, 12 months warranty. But for drying oven, the warranty is 18 months. If any quality problems on our side occured in this period ,we will take on the cost of shipping and component parts.
Q2: What's the delivery term?
Usually, 20 - 25 days after order confirmation. It will be took more time for customization service. If you are in urgent need, we can make special arrangement for you. It could be shipped by sea, by air or by air express.
Q3: What’s the payment term?
Accept different kinds of payment terms, such T/T, L/C, Paypal.
Q4: Is it ok for customization service?
Of course you can. We are manufacturer of environmental test equipment. Once with your detailed requests, we could make environmental test chamber accordingly.
