Product Details:
Payment & Shipping Terms:
|
| Exterior Material: | Baked Painting Steel Or Stainless Steel | Interior Material: | SUS 304 Stainless Steel Plate |
|---|---|---|---|
| Internal Volume: | 150L | Application: | Laboratory, Testing Center, Production Line |
| Heating Speed: | 3℃/min | Humidity Range: | 20%~98% |
| Temperature Range: | -40℃/-70℃~+150℃ | H.S. Code: | 9032100000 |
| Warranty: | 12 Months Free Parts Warranty | Trade Terms: | EXW, FOB, CIF, DDU, DDP |
| Highlight: | temperature and humidity chamber,temperature test chamber |
||

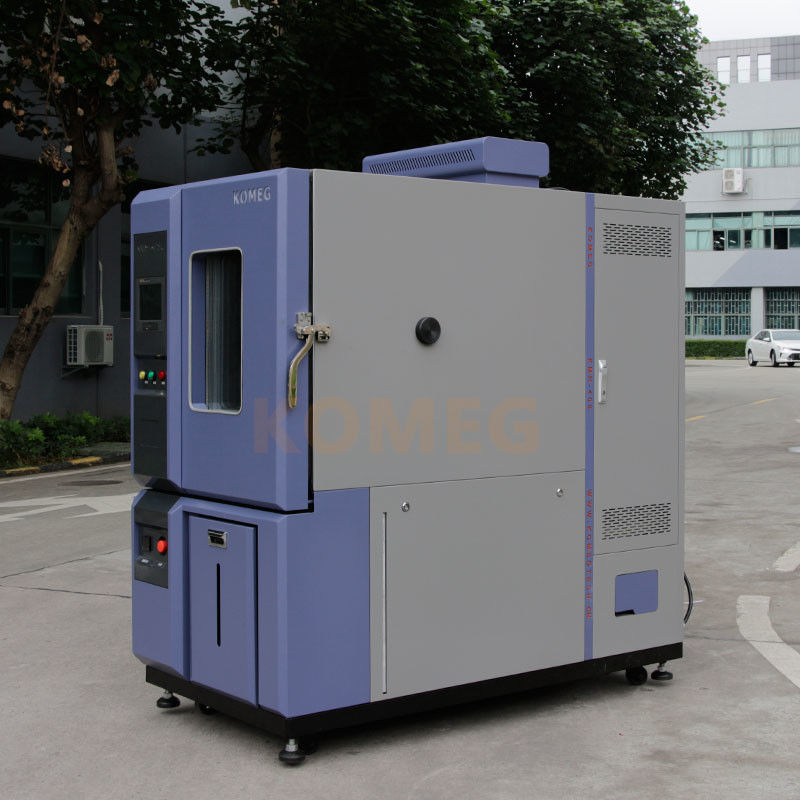

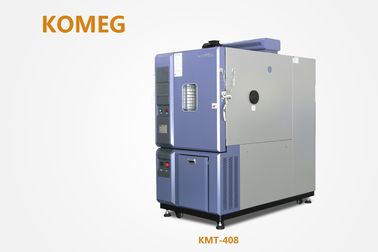

Thermal Cyclic and Damp Heat Temperature Test Chamber for PV specific Testing
Product Application
The Temperature humidity test chamber is applied to test the capabilities of heat-resistance,cold-resistance of materials.With precise temperature and humidity control system, this equipment provides variety of environmental simulate conditions that industrial research and biological test need. It is used in medicine, textile and food production experiment, as well as in product stability, raw material, packing and lifetime test.
Technical Specification for KMH-36L and KMH-64L
| Model | KMH-36L(Benchtop) | KMH-64 series | |||
| 64 R | 64 L | 64 S | |||
| Temp. range | -40°C ～150°C | -20°C ～150°C | -40°C ～150°C | -70°C ～150°C | |
| Interior size | W(mm) | 300 | 400 | 400 | 400 |
| H(mm) | 400 | 400 | 400 | 400 | |
| D(mm) | 300 | 400 | 400 | 400 | |
| Exterior size | W(mm) | 460 | 600 | 600 | 600 |
| H(mm) | 780 | 1526 | 1526 | 1526 | |
| D(mm) | 1002 | 1200 | 1200 | 1200 | |
| Power(KW) | 5.8 | 5.8 | 5.8 | ||
| Weight(KG) | 300 | 300 | 300 | ||
Specification for Other Model
KMH-R series
| Model | KMH-R series | |||||
| 150R | 225R | 408R | 800R | 1000R | ||
| Temp. range | -20°C ～150°C | |||||
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 240 | 280 | 400 | 500 | 580 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -20°C ～+100°C ,within 35 min | |||||
| Pull down time | +20°C ～-20°C , within 45 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
KMH-L series
| Model | KMH-L series | |||||
| 150 L | 225 L | 408 L | 800 L | 1000 L | ||
| Temp. range | -40°C ～150°C | |||||
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 250 | 300 | 420 | 530 | 600 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -40°C ～+100°C ,within 45 min | |||||
| Pull down time | +20°C ～-40°C , within 60 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
KMH-S series
| Model | KMH-S series | |||||
| 150S | 225S | 408S | 800S | 1000S | ||
| Temp. range | -70°C ～150°C | |||||
| Interior sizel | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 280 | 330 | 450 | 550 | 650 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -70°C ～+100°C ,within 60 min | |||||
| Pull down time | +20°C ～-70°C , within 80 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
Features
1. Microprocessor controller for temperature and humidity ensures of precise and reliable control.
2. Simulate changing temperature and light in day/night
3. Independent temperature-limiting alarm system ensures experiments run safely.
4. Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.
5. Even air circulation
6. Imported compressor
7. RS485 connector is option which can connect computer to record the parameters and the variations of temperature.(option)
