Product Details:
Payment & Shipping Terms:
|
| Usage: | Temperature Change Test Chamber | Insulation Material: | Rigid Polyurethane Foam And Glass Fiber Wool |
|---|---|---|---|
| Cooling Mode: | Water Cooled | Heater: | Iron-chrome Wire Heater |
| Controllor: | Touch Screen Programmable Controller | Temperature Range: | -40 °C To 150 °C |
| Material: | SUS304 Stainless Steel | Power Supply: | AC 380V±10％ 50Hz ,3 Phase 4 Wires +Ground Wires |
| Exterior Material: | Baked Painting Steel | Workspace Volume (W X H X D): | 1000*1000*1000mm |
| High Light: | humidity and temperature controlled chamber,temperature test chamber |
||
Components and Materials by Constant Desktop Temperature Humidity Chamber Environmental simulation reliability test
Applications:
This equipment is widely applied for electronic and electric products,components and materials by constant high and low temperature,temperature change,rapid rate temperature change, damp heat etc environmental simulation reliability test.
Main features:
1. With high precision percision perfect external design,external with double sides cold rolled plate electrostatic power coated material, internal with SUS#304 high temperature resistant stainless steel.
2. Insulation material adopt fire resistant high strength PU polyurethane foaming thermal insulating material.
3. More than 20% energy saving is achieved & thanks to the introducting of Japan & German advanced refrigerator control technology.
4. Control system and control circuit components are introduced with famous brand.
Parameter Specifications
|
KMH-R series
|
||||||
| Model |
KMH-R series
|
|||||
| 150R | 225R | 408R | 800R | 1000R | ||
| Temp. range | -20°C ～150°C | |||||
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 240 | 280 | 400 | 500 | 580 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -20°C ～+100°C ,within 35 min | |||||
| Pull down time | +20°C ～-20°C , within 45 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
|
Secifications ( at +20℃ room temp. Or+25℃ water temp with empty load)
|
|||||
| Model |
KMH-L series
|
||||
| KMH-150L | KMH-225L | KMH-408L | KMH-800L | KMH-1000L | |
| Interrior material(cm) | 60*60*46 | 70*70*48 | 70*75*80 | 100*100*80 | 100*100*100 |
| Exterrior material(cm) | 88*173*140 | 98*189*146 | 98*194*174 | 128*216*175 | 128*216*195 |
| Weight(Kg) | 250 | 300 | 420 | 530 | 600 |
| Equipment power(KW) | 7.5 | 7.5 | 8.5 | 14.5 | 14.5 |
| Tempeture range | -40 ℃ ～ +150 ℃ | ||||
| Humidity range | 20 ～ 98%R.H | ||||
| Tempeture constancy | ±0.5℃ | ||||
| Humidity constancy | ±2.5% R.H | ||||
| Tempeture uniformity | ±2.0 ℃ | ||||
| Humidity uniformity | ±3.0% R.H(＞75%) ±5.0% R.H (≤75%) | ||||
| Heating rate | -40℃～+100℃ Within 45 minutes | ||||
| Cooling rate | +20℃～-40℃ Within 60 minutes | ||||
| Controllor | Touch screen controller English menu Operation mode:setting or program | ||||
| Refrigeration system | Air cooled (Water Cooled Type is option) | ||||
| Hermetic compressor, stage refrigeration system | |||||
| Interior material | Stainless Steel Plate ( SUS 304 ) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| System | Balanced & Humidity Control System | ||||
| Wiring method | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||
|
Technical parameters:
|
|||||
|
Environmental Temperature and Humidity Chamber
|
|||||
|
Secifications ( at +20°C room temp. Or+25°C water temp with empty load)
|
|||||
| Model | KMH-S series | ||||
| 225S | 408S | 800S | 1000S | ||
| Interior sizel | W(mm) | 700 | 700 | 1000 | 1000 |
| H(mm) | 700 | 750 | 1000 | 1000 | |
| D(mm) | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 980 | 980 | 1280 | 1280 |
| H(mm) | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1460 | 1740 | 1750 | 1950 | |
| Weight(KG) | 330 | 450 | 550 | 650 | |
| Temp. range | -70 °C ~+150°C | ||||
| Humidity Range | 20 ~ 98&R.H. | ||||
| Temp. constancy | ±0.5ºC | ||||
| Humidity constancy | ±2.5%R.H | ||||
| Humidity uniformity | ±3.0%R.H | ±5.0 % R.H | |||
| Heat up time | -70°C ~ +100°C , within 60 min | ||||
| Pull down time | +20°C ~ -70°C , within 80 min | ||||
| Equipment Power | 9.5KW | 10.6KW | 18.5KW | 18.5KW | |
| Ambient Temp. | 5ºC ~+35ºC | ||||
| Standard accessories | Sight window*1, cable port(port 50mm)*1, shelves*2, chamber lamp*1, power cable *2m | ||||
| Safety device (standard) | No fuse breaker, over pressure over heat and over current protection for compressor, | ||||
| Over temp. protect, over load protect of blower, dry heat protection | |||||
| Control System | Balanced Temperature & Humidity Control System | ||||
| Refrigeration system | Air Cooled (Water Cooled Type is option) | ||||
| Hermetic compressor,Cascsde Refrigeration | |||||
| CFC-Free refrigerant(HFC-507/HFC-23) | |||||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | ||||
| Operation model :Program or fix point running | |||||
| Memory capacity :120programs,1200steps, | |||||
| All repeat 999 cycles, part repeat 99 cycles | |||||
| Interior material | Stainless Steel Plate ( SUS 304 ) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| System | Balanced & Humidity Control System | ||||
| Wiring method | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||

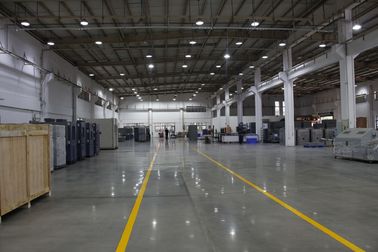

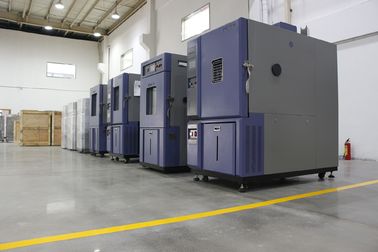

Company information
Being a first-class supplier and reliable partner, we are certified to ISO 9001 and got CE approval for all our products. All equipment are 7 x 24 hours tested before delivery. That explains why Komeg is the private brand of choice for many well-known brand enterprises, and also one of the very few designated suppliers who were recognized by many top 500 enterprises. Let Komeg's 26 years of professional experience work for you too.
1. Dedicate touch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide range of temperature and humidity environments
4. Capable of testing large components, assemblies and finished products
5. Customized sizes and configurations available
6. One year warranties
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Vibration Testing Machine( mechanical and electromagnetic)
FAQ
Q1: What is the Warranty for the accelerated aging machine ?
A1: For the accelerated aging machine, we offer 1 years warranty service. If any quality problems on our side occured in this period ,we will send you replacement and cover the cost of shipping and component parts.
Q2: What's the delivery term?
A2: Usually, it takes us 20 - 25 days after order confirmation to produce the equipment and a little bit longer for customization service. While if you are in urgent need, we can make special arrangement to speed up the proceedings. Then we start the shipped by sea, by air freight or by air express.
Q3:What’s the payment term?
A3: T/T, L/C and other payment terms could be negotiated.
Q4:Is it ok for customization service?
A4: Yes, the inner chamber dimensions, structure, color, some special parameters can be customized as per your specific request.
