Product Details:
Payment & Shipping Terms:
|
| Application: | Laboratory, Testing Center, Production Line | Internal Volume: | 225L |
|---|---|---|---|
| Exterior Material: | Baked Painting Steel Or Stainless Steel | Warranty: | 12 Months Free Parts Warranty |
| Trade Terms: | EXW, FOB, CIF, DDU, DDP | H.S. Code: | 9032100000 |
| High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |
||

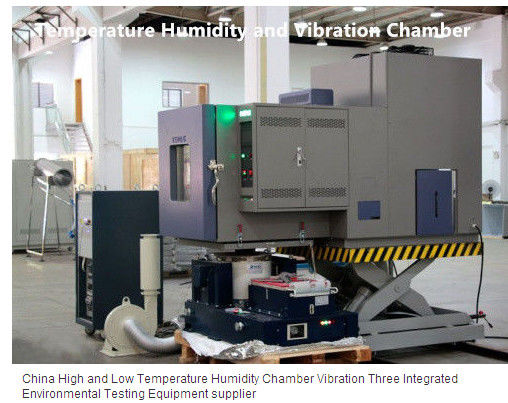

KMH-225R High and Low Temperature Humidity Chamber Vibration Three Integrated Environmental Testing Equipment
KMH-225L Temperature Humidity and Vibration three integrated Test Chamber
Environmental test chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance. They are able to perform test under extreme conditions, variable temperatures and humidity environmentals ensuring high performance testing and superior quality of products. It is suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
| Model | KMH-36L(Benchtop) | KMH-64 series | |||
| 64 R | 64 L | 64 S | |||
| Temp. range | -40°C ～150°C | -20°C ～150°C | -40°C ～150°C | -70°C ～150°C | |
| Interior size | W(mm) | 300 | 400 | 400 | 400 |
| H(mm) | 400 | 400 | 400 | 400 | |
| D(mm) | 300 | 400 | 400 | 400 | |
| Exterior size | W(mm) | 460 | 600 | 600 | 600 |
| H(mm) | 780 | 1526 | 1526 | 1526 | |
| D(mm) | 1002 | 1200 | 1200 | 1200 | |
| Power(KW) | 5.8 | 5.8 | 5.8 | ||
| Weight(KG) | 300 | 300 | 300 | ||
(1) KMH-R series
| Model | KMH-R series | |||||
| 150R | 225R | 408R | 800R | 1000R | ||
| Temp. range | -20°C ～150°C | |||||
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 240 | 280 | 400 | 500 | 580 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -20°C ～+100°C ,within 35 min | |||||
| Pull down time | +20°C ～-20°C , within 45 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
(2)KMH-L series
| Model | KMH-L series | |||||
| 150 L | 225 L | 408 L | 800 L | 1000 L | ||
| Temp. range | -40°C ～150°C | |||||
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 250 | 300 | 420 | 530 | 600 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -40°C ～+100°C ,within 45 min | |||||
| Pull down time | +20°C ～-40°C , within 60 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
(3)KMH-S series
| Model | KMH-S series | |||||
| 150S | 225S | 408S | 800S | 1000S | ||
| Temp. range | -70°C ～150°C | |||||
| Interior sizel | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 280 | 330 | 450 | 550 | 650 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -70°C ～+100°C ,within 60 min | |||||
| Pull down time | +20°C ～-70°C , within 80 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
Specification for Vibration Chamber
| DE-50-400 Body Parameter | |
| Rated Sine Force (peak): | 50 kN |
| Rated Random Force (peak): | 50 kN |
| Impact vibration force (peak): | 120 kN |
| Frequency Range: | DC～2800 Hz |
| Max Displacement(p-p): | 76mm |
| Max Velocity: | 2 m/s |
| Max Acceleration: | 800m/s2 |
| One class resonant frequency: | 2400 Hz±5% |
| Max. weight of the test item Load: | 1200 kg |
| Vibration Isolation Frequency: | 3 Hz |
| Turntable Diameter: | Ф400 mm |
| Equivalent mass of moving parts: | 30 kg |
| Leakage flux: | ＜1.0 mT |
| Body Size(L×W×H): | 1692mm×1104mm×1288mm |
| Body Weight (kg), include packing weight | About 4500 |
1. Programmable setup is available, max 120 sets, 1200 segments and 999 cycles.
2. The refrigeration units are supplied by Tecumseh(France).
3. A large TEMI 1500 LCD touch screen controller helps to perform operations more conveniently.
4. A test graph indicator provides a continuous performance progress report.
5. A P.l.D auto counter enables continuous immediate temperature and humidity error correction.
6. A microprocessor control unit enables temperature and humidity fluctuation to be applied dividedly.
7. An OD 5 cm port is centered on the left side of the chamber for ease of cable routing.
8. Mist-free viewing window and interior light provide a hassle free viewing workspace.
9. Swivel casters provide easy mobility and flexibility in a variety of laboratory conditions.
10. Four-tiered safety protection system.
● GB-2423. 1-89 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423. 2-89 (IEC68-2-2)Test B: High Temperature Test
● GJB360. 8-87 (MIL-STD. 202F) High Temperature Life Test
● GBJl50. 3 (MIL-STD-810D) High Temperature Test
● GJBl50. 4 (MIL-STD-810D) Low Temperature Test
● GB2423. 3-93 (IEC68-2-3)Test Ca: Constant Heat Test
● GB2423. 4-93 (IEC68-2—30)Test Db: Damp Heat Alternative Test
● GJBl50. 9-93 (MIL-STD-810D) Damp Heat Test
