| Temperature Range: | -40℃~+150℃ | Humidity Range: | 20~98%R.H |
|---|---|---|---|
| Certificate: | CE ISO | Heat Up Time: | +20℃~-40℃(within 60 Min) |
| Application: | Testing , Industrial | ||
| High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |
||

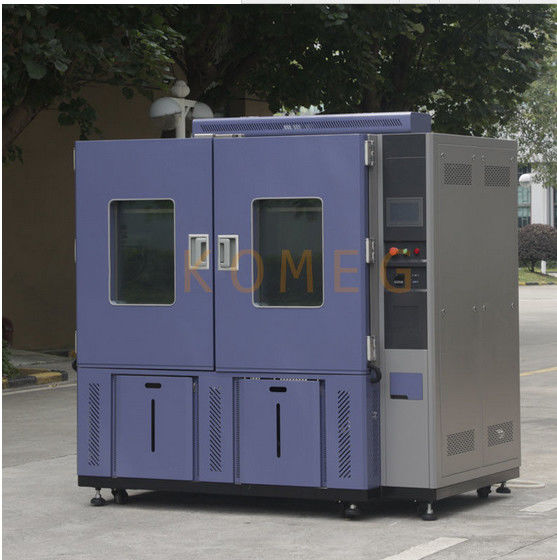

Variety Size ISO High Speed Stability Temperature Humidity Chamber For Battery Testing
Application
The following industry areas suitable use of this product:
electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building and quarantine bureau, university etc.
1. Temperature And Humidity Chamber Market
Good quality and versatile temperature testing equipment in the test industry market is ideal for large specimen applications.
The product standard is equipped with user-friendly, comprehensive programming interface, through USB data retrieval and other functions.
Other user options include rooftop ports and water cooling units.
2. Temperature Chambers Types
Using our products to perform high and low extreme temperature tests can change the mechanical and electrical properties of the product, such as component brittleness, lubricant viscosity, conductivity and oscillator frequency. At the same time, the TRaC temperature test can simulate temperature limits from -70 ° C to + 180 ° C (and up to + 500 ° C constant) cycle temperature limits.
3. Other Test Chambers
Laboratory temperature threshold:
The test chamber typically has a wire heater made of a material called Nichrome. By placing a continuous ring of heater wires, a greater amount of heat is generated. The results look much like the inside of the toaster. The fan circulates the air through the heater, so the sample in the room is not exposed to radiant heat. It is very easy to add the heater and increase the speed and / or ceiling of the chamber.
Our products usually have a high temperature limit at 200 ° C
Room high temperature limit exists:
150 ° C: For two reasons, we may limit the chamber to 150 ° C. First, the use of indoor materials may be limited. Secondly, for extremely fast chambers, we can limit the high temperature to avoid accidental trip overheat protection devices.
170-180 ° C: Most models are stopped within this temperature range. There is a risk of burning oil in the cooling and cooling coil.
4. Parameter Specifications:
| Model | KMH-1500L | ||||
| 1500L chamber volume | |||||
| Temp. range | -40°C ～150°C | ||||
| Display resolution | 0.1°C | ||||
| Temperature stability | High±0.5°C ,low ±1.0°C | ||||
| Temperature uniformity | ±2.0°C | ||||
| Heat up time | -40°C ～+100°C, within 45 min | ||||
| Pull down time | +20°C ～-40°C, within 65 min | ||||
| Humidity range | 20～98％R.H,(standard) | ||||
| Humidity constancy | ±2.5％R.H | ||||
| Humidity uniformity | ±2.0％R.H | ||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| Total power | 4.5KW(heater 2KW included) | ||||
| Max current | 9.1A | ||||
| Water Consumption | 0.35L/hr | ||||
| Power Supply | AC 380V±10％ 50Hz ,3 phase 4 wires +Ground Wires | ||||
| Sample holder | 2 pcs | ||||
| Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m | ||||
| Safety device (standard) | No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect |
||||
| Control System | Balanced Temperature & Humidity Control (BTHC)System | ||||
| Refrigeration system | Air Cooled (Water Cooled is option) | ||||
| Hermetic compressor | |||||
| Hermetic compressor Single stage refrigeration system, CFC-Free refrigerant(HFC-507/HFC-23) |
|||||
| Controller | 7-inch LCD Touch Screen panel | ||||
| Operation model :Program or fix point running | |||||
| Memory capacity :120programs,1200steps, | |||||
| All repeat 999 cycles, part repeat 99 cycles | |||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||
5. Features:
1. Customers are free to choose to use the interface, integrated data logger and automatic control software programming and record various options.
2. Inner box with corrosion-resistant SUS # 304 stainless steel.
3. The concept of heating / cooling for specific products for accurate and uniform temperature control, independent of chamber volume and load.
4. Cavity size and temperature range can be customized according to your requirements.
5. Measure the temperature of the climate chamber according to the relevant standards.
6. Each room in the work before the first safety test, and CE test standards.
7. Fast and precise temperature control, no evaporator-dependent dry samples, no cooling unit icing, no dehumidification of the studio.
8. One year warranty period.
Our company has a variety of test cases, can reproduce a wide range of climatic conditions, including high and low temperature, as well as the combination of temperature and humidity conditions. It also supports climate testing facilities dedicated to testing telecommunications and radio products. You can choose according to the user's own requirements configuration.
7.Details
