Product Details:
Payment & Shipping Terms:
|
| Interior Size: | Stainless Steel Plate | Exterior Size: | Stainless Steel |
|---|---|---|---|
| Insulation Material: | Rigid Foam And Wooden Box | Temp Rage: | -20℃～150℃ |
| System: | Balanced &Humidity Control System | Heat Up Time: | -20℃～+100℃ Within 35 Min |
| High Light: | temperature and humidity chamber,temperature test chamber |
||
Custom Constant Temperature Humidity Chamber For Electronic / Rubber Products
Description
Our company focuses on development and production of Temperature Humidity Test Chamber, The machine specifically testing the materials in resistance of heat, cold, dry and moisture. Constant temperature and humidity testing machine is small size and not take up space.
Applicable industries:
Applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Features
● GB-2423. 1-89(IEC68-2-1)Test A: Low Temperature Test
● GB-2423. 2-89(IEC68-2-2)Test B: High Temperature Test
● GJB360. 8-87(MIL-STD. 202F) High Temperature Life Test
● GBJl50. 3(MIL-STD-810D) High Temperature Test
● GJBl50. 4(MIL-STD-810D) Low Temperature Test
● GB2423. 3-93(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423. 4-93(IEC68-2—30)Test Db: Damp Heat Alternative Test
● GJBl50. 9-93(MIL-STD-810D) Damp Heat Test
Specification
| 1. Chamber | |
| 1.1 Workspace volume |
IW 700 × IH 750 × ID 800 mm
|
| 1.2 Exterior size |
EW 980 × EH 1936 × ED 1735 mm
|
| 2. Temperature | |
| 2.3 Temperature range |
-40 ℃ ~ +150 ℃
|
| 2.4 Temp Deviation |
±0.5℃
|
| 2.5 Temp Constancy |
±2.0℃
|
| 2.6 Temp Uniformity |
±2.0℃
|
| 2.7 Ramping and soaking rate |
+20℃↓ -40℃ 1°C/min (no-load)
-40℃↑ +40℃ 3°C/min (no-load) |
| 3. Humidity | |
| 3.1 Humidity range |
20%R.H.～98%R.H
|
| 3.2 Control range |
|
| 3.3 Humidity deviation |
±2％RH
|
| 3.4 Humidity uniformity |
3.0％RH
|
| 3.5 Humidity deviation |
±2.0％RH
|
| The above specifications is measured in the environment of + 25 ℃, temperature and humidity performance measurement comply with related regulation of IEC60068-3-5 standard; Sensors placed in the air outlet. | |
Control system
|
Interface |
Can be connected to the computer display curve, data acquisition;
Can be used as monitoring and remote control system;
Can do more than one machine synchronization control;
RS-232, RS-485 and Ethernet. |
|
USB function |
1G-32G available for downloading historical curve and data, control system parameters,
pluggable |
|
Record way |
RAM with battery protection, setting (SV), Practical(PV) and sampling time can be saved;
curve recording cycle can be set 30 ~ 300 sec,
Maximum historical data and curve memory continuous storage is 90 days (when the
sampling time is 1 min)
no continuous use 10 years data are available. |
|
Power off memory |
Power recovery mode can be set as hot start, cold start and stop |
|
Software environment |
Windows XP or Windows 7 / WIN8 operating system |

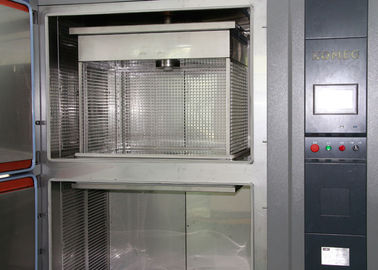

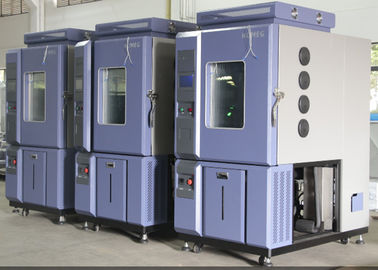

Photos show
