| Temp Range: | -20℃ ～ +150℃ | Temp Deviation: | ≦ ± 2.0℃ |
|---|---|---|---|
| Temp Fluctuation: | ±0.5℃ | Interior Material: | Stainless Steel |
| Exterior Material: | Baked Painting Steel | Heat Up Time: | -20℃ ～ +100℃ Within 35 Min |
| Highlight: | humidity and temperature controlled chamber,temperature test chamber,Climatic Test Chamber For Gule Parts |
||
New 1000L Programmable Temperature Humidity Climatic Test Chamber For Gule
Different size (OEM )are welcome , anna@komegtech.com
|
Ⅳ. Technical specification (Air cooled, room temperature +25℃, no load )
|
|
|
1. Temperature
|
|
| 1.1 Temperature range |
L style : -20℃ ～ +150℃
R style : -40℃ ～ +150℃
S style : -70℃ ～ +150℃ |
| 1.2 Temp Deviation |
≦ ± 2.0℃
|
| 1.3 Temp Fluctuation |
±0.5℃
|
| 1.4 Temp Uniformity |
±2.0℃
|
| 1.5 Ramping and soaking rate |
Heating up rate: -20℃↑ +100℃ about 35min (no-load, ambient
temperature +25℃)
Cooling rate: 20 ℃to -20℃ about 45min (no-load, ambient temperature
+25℃) |
|
2. Humidity
|
|
| 2.1 Humidity range |
20%R.H～98%R.H
|
| 3.3 Humidity deviation |
±3.0％RH(＞75％RH)
±5.0％RH(≤75％RH)
|
| 3.4 Humidity uniformity |
3.0％RH (no-load)
|
| 3.5 Humidity fluctuation |
±2.0％RH
|
|
Temperature and humidity performance test is in accordance with the relevant provisions of the
IEC60068 -3 standard measurement; sensor placed in the unit outlet. |
|
|
Ⅴ. Chamber Structure
|
|
|
Overall structure and chamber was composed of three parts as below.
Insulation box, separate refrigeration units, and electrical control cabinet. |
|
|
|
| 2. Insulation box |
Wall material: high-quality carbon steel with static color spray
Inner wall material: SUS304 # matte stainless steel plate
Insulation materials: rigid polyurethane foam insulation layer + glass
fiber. |
|
Ⅲ. Features
|
|
|
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test |
|
| 1．Energy conservation |
Bypass mode to adjust cooling capacity to achieve a constant
temperature and humidity effectively |
| 2．Easy Operation |
※Using company owned brand KOMEG KM-5166 LCD touch screen
controller with PID control parameters setting
Flexible approach for data collection and recording |
| 3．High reliability |
Key parts are imported, ensuring the service life and high reliability
Efficient oil separator to ensure the service life of the compressor
|
Product Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability
test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing
equipment and test methods for the basic parameters of electric and electronic products under the condition
of humidity, low temperature, high temperature, and constant heat.
Application
It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and
materials under the conditions of high and low temperature and high temperature and humidity. For quality
and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and
other products, parts and materials.

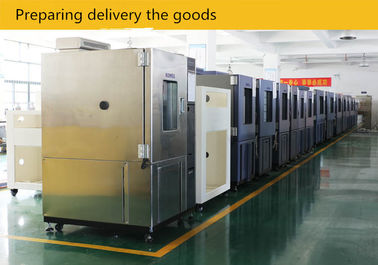

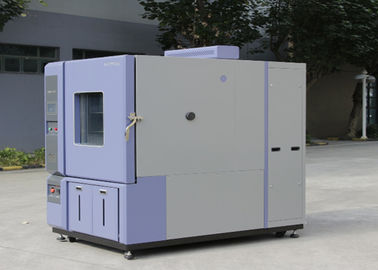

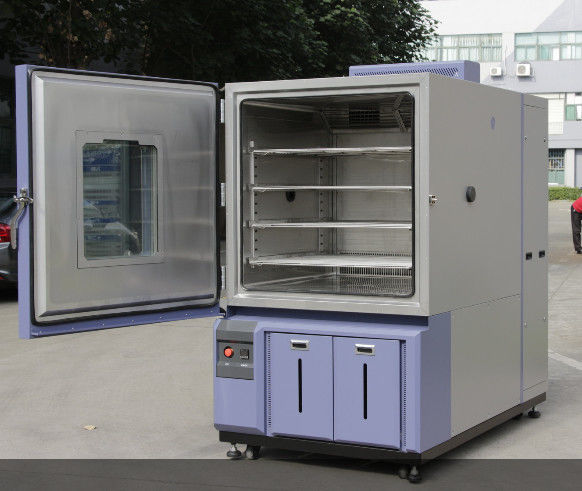

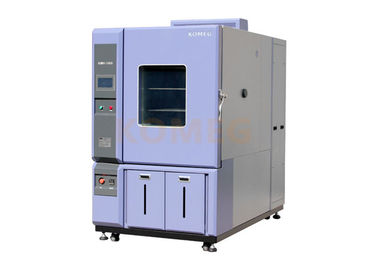

Photos show
