Product Details:
Payment & Shipping Terms:
|
| Humidity Range: | 40% To 98%RH Xenon Arc Test Machine | Test Size: | H 550 × W 750 × D 550mm |
|---|---|---|---|
| External Size: | H 1800 ×W 1200 × D 1200mm | Usage: | Weather Resistence Xenon Lamp Climatic Aging Test Chamber |
| Temperature Range: | Rt+10°C ~80°C | Light Source: | Full Spectrum Xenon Lamp (air-cooled) |
| Spray Cycle: | 1-240min, Interval Adjustable | Spray Time: | 1 To 9999min, Abjustable |
| Xenon Lamp Wavelength: | 340～400nm | Xenon Lamp Radiation Intensity: | 0.25～0.55W/m2 |
| High Light: | accelerated aging chamber,climatic test chambers |
||

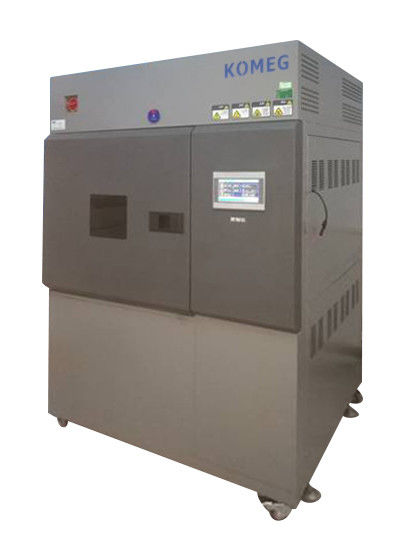

Accelerated Weather Resistence Xenon Lamp Integrated Climatic Aging Test Chamber
Equipment summary:
Xenon accelerated weathering test chamber is a comprehensive climate testing machine, can do climatic aging test and the lightfastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition;
| Model | KM-XD-3F1800 | |
| Testing room D×W×H | 550*750*550mm | |
| Index | Temperature range | RT+10°C~80°C |
| Humidity range | 40% to 95%R·H | |
| Spray time | 1 to 9999min, abjustable | |
| Spray cycle | 1-240min, interval adjustable | |
| spectral wavelength | 340～400nm (550w/m2) | |
| light source | Full spectrum xenon lamp (air-cooled) | |
| Xenon lamp power | 1.8kw (longevity: 1200H) | |
|
Control system |
Time controller | Import controller from Moeller |
| Accourate range | Temperature: ±0.1 degree / humidity: ±0.1R·H | |
| Sensor | Platinum resistance Pt 100Ω/mv | |
| Heating system | Independent system, nickel chromium alloy electric heating type heater | |
| Humidity system | stainless steel, external Isolated humidifier | |
| Blackboard temperature | Bimetal thermometer blackboard 55~75 degree | |
| Water supply | Humidification water supply with automatic control, xenon lamp cooled by water recycling | |
| Temperature controller | Import controller | |
| humidity | Irradiation: 30%~65%RH darkly: up to 90%RH | |
| Cycle system | low-noise air-conditioning-type motors, multi-leaf-type centrifugal wind wheel | |
| Material | Outside material | Advanced spray color plate /SUS304 stainless steel |
| Inside material | SUS304 stainless steel | |
| Sample holder material | SUS304 stainless steel | |
| insulation | High and low temperature aging of silicone rubber | |
| standard | a set of radiation-proof glass window, dynamic testing sample shelf 1, xenon lamp tube 2 | |
| protector | Leakage, short circuit, over-temperature, water shortages, motor overheating, over-current protection. | |
| Power | AC380V±10% 50±0.5HZ , Three-phase five-wire system | |
| Environmental temperature | ±5+30 ≤85%R·H | |
Equipment meets standard GB/T16422.2-1999,GB/T2423.24-1995,SAEJ1885,SAEJ19960,ISO4892-2,AATCC,JASOM,ASTM and so on
Applicable industries of the climatic chamber:
Accelerated Weather Resistence Xenon Lamp Climatic Aging Test Chamber is applied to control the product quality, such as electronic, plastic products, electricalappliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ..and so on.
Our Services
We are here to help you. Services available:
Implementation Assistance
Installation
Training
Calibration
Preventive Maintencance
Technical Support
Relocation Assistance
Upgrade
Repair & Parts
F A Q
1.Are your company a trading one or a factory?
Factory + trade (integration),27 years focusing on test instruments field,10 years exporting experience.
2.After an order is placed, when to deliver?
Generally about 25 days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product,handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product use training, each of our product provide video training to show you how to install & operate.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
