|Humidity Range:||40% To 98%RH Xenon Arc Test Machine||Test Size:||H 800 × W 800 × D 800mm|
|External Size:||H 2000 ×W 1450 × D 1500mm||Usage:||Weather Resistence Xenon Lamp Climatic Aging Test Chamber|
|Temperature Range:||Rt+10°C ~80°C||Light Source:||Full Spectrum Xenon Lamp (air-cooled)|
|Spray Cycle:||1-240min, Interval Adjustable||Spray Time:||1 To 9999min, Abjustable|
|Xenon Lamp Wavelength:||340～400nm||Xenon Lamp Radiation Intensity:||0.25～0.55W/m2|

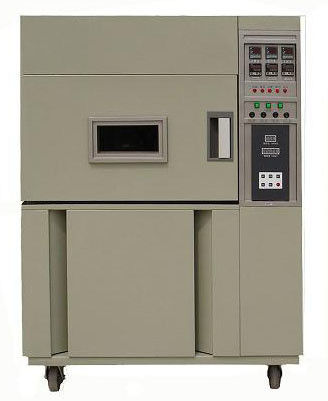

Xenon Lamp Solar Simulator Arc Weatherometer Weathering Aging Test Chamber
Solar radiation xenon lamp exposure aging test chamber for paint , also known as "sunshine radiation protection test device", simulates full sunlight spectrum xenon arc lamp to represent the destructive waves under different environment. It is used for scientific research, product development and quality control to provide the corresponding environmental simulation and acceleration test. According to test standard and test method, It is devided into air cooling xenon lamp, air cooling xenon lamp and bench top xenon lamp. The differences for the three types are test temperature, test humidity, test time, etc.
|Internal Dimension (W*D*H)||800*800*800mm|
|External Dimension (W*D*H)||1450*1500*2000mm|
|Inner chamber material||SUS 304 # Stainless Steel, Anti-rust, easy to clean|
|Outer chamber material||Stainless steel|
|Blank panel temperature||65±3℃|
|Irradiated intensity||0.35±0.02w/m²at 340nm (within±10%)|
|Xenon lamp power||6.KW water-cooled xenon lamp x 1pc|
|Control system||Siemens PLC controller, auto display irradiance|
|Distance from specimen to arc center||250~300mm, Effective exposure area 6400cm2|
|Filter||Borosilicate filter inside and outside|
|Water pressure at nozzle||1 - 1.5 bar|
|Sample rack||Stainless steel rotary sample rack, 3-7rpm|
|Door seal||Silicone rubber seal|
|Temperature sensor||PT100 high precision temperature sensor|
|Air circulation system||Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity|
|Cooling ventilator||Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system|
|Cooling ventilator||France Tecumseh compressor|
|Power||AC380V, 50Hz, three phase|
Over heat protection for fan,
Over load protection for cooling system,
Over pressure protection for cooling system,
Over temperature protection,
Over heat and over flow protection for water pump,
Leakage protection, Water shortage protection,
Auto stop after failure warning
1 equipped with blackboard thermometer to adjust the test temperature in the chamber.
2 can control xenon arc lamp light time.
3 Control water spray cycle.
4 Water circulation.
5 automatic constant temperature(circulating water cooling)
6 LCD touch screen controller can independantly control water spray, light, temperature, humidity, rotary table.
7 large glass observation window
8 water shortage and over temperature faulty alarm.
9 irradiation meter displays light intensity in the chamber.
10 Customization is welcomed and available.
11 Equipped with castors and feet, which helps users to move the test chamber easily.
12 One year free accessories maintenance.
Equipment meets standard GB/T16422.2-1999,GB/T2423.24-1995,SAEJ1885,SAEJ19960,ISO4892-2,AATCC,JASOM,ASTM and so on
Applicable industries of the climatic chamber:
Accelerated Weather Resistence Xenon Lamp Climatic Aging Test Chamber is applied to control the product quality, such as electronic, plastic products, electricalappliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ..and so on.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
F A Q
1.Are your company a trading one or a factory?
Factory + trade (integration),27 years focusing on test instruments field,10 years exporting experience.
2.After an order is placed, when to deliver?
Generally about 25 days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product,handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product use training, each of our product provide video training to show you how to install & operate.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
