800L Large Sight Window Constant Temperature / Humidity Test Chamber KMH800R
More detail technical specification ,kindly contact :anna@komegtech.com or wechat:+86-18098281986 ,skype:anna09231
Ⅰ. Product Overview
|
|
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat. |
|
Ⅱ. Application
|
|
It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and
materials under the conditions of high and low temperature and high temperature and humidity. For
quality and reliability test of simulating temperature and humidity changes in electrical, electronic,
mechanical and other products, parts and materials. |
|
Ⅲ. Features
|
|
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test |
|
1.Energy conservation |
Bypass mode to adjust cooling capacity to achieve a constant
temperature and humidity effectively |
2.Easy Operation |
Using company owned brand KOMEG KM-5166 LCD touch screen
controller with PID control parameters setting
Flexible approach for data collection and recording |
3.High reliability |
Key parts are imported, ensuring the service life and high reliability

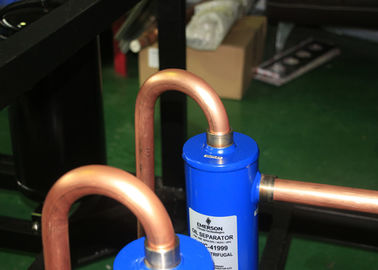

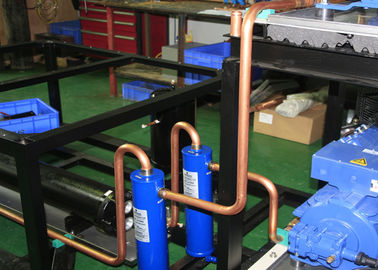

Efficient oil separator to ensure the service life of the compressor |
Ⅳ. (Air cooled, room temperature +25℃, no load )
|
|
1. Temperature
|
|
1.1 Temperature range |
-20℃ ~ +150℃
|
1.2 Temp Deviation |
≦ ± 2.0℃
|
1.3 Temp Fluctuation |
±0.5℃
|
1.4 Temp Uniformity |
±2.0℃
|
1.5 Ramping and soaking rate |
Heating up rate: -20℃↑ +100℃ about 35min (no-load, ambient temperature +25℃)
Cooling rate: 20 ℃to -20℃ about 45min (no-load, ambient temperature +25℃) |
2. Humidity
|
|
2.1 Humidity range |
20%R.H~98%R.H
|
3.3 Humidity deviation |
±3.0%RH(>75%RH)
±5.0%RH(≤75%RH) |
3.4 Humidity uniformity |
3.0%RH (no-load)
|
3.5 Humidity fluctuation |
±2.0%RH
|
Temperature and humidity performance test is in accordance with the relevant provisions of the
IEC60068 -3 standard measurement; sensor placed in the unit outlet. |
|
Ⅴ. Chamber Structure
|
|
Overall structure and chamber was composed of three parts as below.

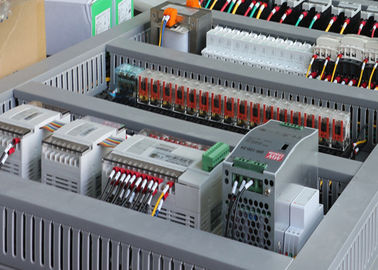

Insulation box, separate refrigeration units, and electrical control cabinet. |
|
|
Interrior: W 100 × H 100 × D 80Cm
Exterior size: W 120× H 203.5 × D 181.5 cm (about) |
2. Insulation box |
※ Wall material: high-quality carbon steel
※ Inner wall material: SUS304 # matte stainless steel plate
※ Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |

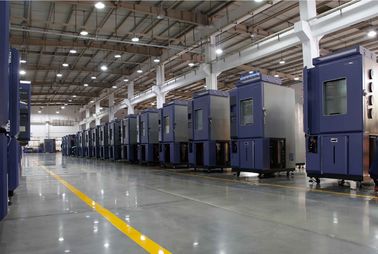

Photos show
