Product Details:
Payment & Shipping Terms:
|
| High Temp Chamber: | -70℃ ～+100℃ | Ambient Temp: | +5℃ ～+35℃ |
|---|---|---|---|
| Interior Material: | SUS 304 | Exterior Material: | Baked Painting Steel |
| Compressor: | Semi-Hermetic Compressor | Cooling Mode: | Water Cooled |
| Highlight: | Vehicle Mounted High low Temperature Testing Machine,Vehicle Mounted High low Temperature Test Chamber |
||
Description:
The chamber design advanced and reasonable structure, functional components and
supporting products with the advanced international level, able to adapt to long-term, stable
production of safe and reliable demand. To meet the user to engage in such applications
processing requirements, and the use, operation, easy maintenance, long life, beautiful
shape, has a good user interface, allowing users to monitor the operation and are more
simple and intuitive.
Parameter Specifications
| KMH-R series | ||||||
| Model | KMH-R series | |||||
| 150R | 225R | 408R | 800R | 1000R | ||
| Temp. range | -20°C ～150°C | |||||
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 240 | 280 | 400 | 500 | 580 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -20°C ～+100°C ,within 35 min | |||||
| Pull down time | +20°C ～-20°C , within 45 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
| Secifications ( at +20℃ room temp. Or+25℃ water temp with empty load) | |||||
| Model | KMH-L series | ||||
| KMH-150L | KMH-225L | KMH-408L | KMH-800L | KMH-1000L | |
| Interrior material(cm) | 60*60*46 | 70*70*48 | 70*75*80 | 100*100*80 | 100*100*100 |
| Exterrior material(cm) | 88*173*140 | 98*189*146 | 98*194*174 | 128*216*175 | 128*216*195 |
| Weight(Kg) | 250 | 300 | 420 | 530 | 600 |
| Equipment power(KW) | 7.5 | 7.5 | 8.5 | 14.5 | 14.5 |
| Tempeture range | -40 ℃ ～ +150 ℃ | ||||
| Humidity range | 20 ～ 98%R.H | ||||
| Tempeture constancy | ±0.5℃ | ||||
| Humidity constancy | ±2.5% R.H | ||||
| Tempeture uniformity | ±2.0 ℃ | ||||
| Humidity uniformity | ±3.0% R.H(＞75%) ±5.0% R.H (≤75%) | ||||
| Heating rate | -40℃～+100℃ Within 45 minutes | ||||
| Cooling rate | +20℃～-40℃ Within 60 minutes | ||||
| Controllor | Touch screen controller English menu Operation mode:setting or program | ||||
| Refrigeration system | Air cooled (Water Cooled Type is option) | ||||
| Hermetic compressor, stage refrigeration system | |||||
| Interior material | Stainless Steel Plate ( SUS 304 ) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| System | Balanced & Humidity Control System | ||||
| Wiring method | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||
|
Technical parameters:
|
|||||
|
Environmental Temperature and Humidity Chamber
|
|||||
| Secifications ( at +20°C room temp. Or+25°C water temp with empty load) | |||||
| Model | KMH-S series | ||||
| 225S | 408S | 800S | 1000S | ||
| Interior sizel | W(mm) | 700 | 700 | 1000 | 1000 |
| H(mm) | 700 | 750 | 1000 | 1000 | |
| D(mm) | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 980 | 980 | 1280 | 1280 |
| H(mm) | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1460 | 1740 | 1750 | 1950 | |
| Weight(KG) | 330 | 450 | 550 | 650 | |
| Temp. range | -70 °C ~+150°C | ||||
| Humidity Range | 20 ~ 98&R.H. | ||||
| Temp. constancy | ±0.5ºC | ||||
| Humidity constancy | ±2.5%R.H | ||||
| Humidity uniformity | ±3.0%R.H | ±5.0 % R.H | |||
| Heat up time | -70°C ~ +100°C , within 60 min | ||||
| Pull down time | +20°C ~ -70°C , within 80 min | ||||
| Equipment Power | 9.5KW | 10.6KW | 18.5KW | 18.5KW | |
| Ambient Temp. | 5ºC ~+35ºC | ||||
| Standard accessories | Sight window*1, cable port(port 50mm)*1, shelves*2, chamber lamp*1, power cable *2m | ||||
| Safety device (standard) | No fuse breaker, over pressure over heat and over current protection for compressor, | ||||
| Over temp. protect, over load protect of blower, dry heat protection | |||||
| Control System | Balanced Temperature & Humidity Control System | ||||
| Refrigeration system | Air Cooled (Water Cooled Type is option) | ||||
| Hermetic compressor,Cascsde Refrigeration | |||||
| CFC-Free refrigerant(HFC-507/HFC-23) | |||||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | ||||
| Operation model :Program or fix point running | |||||
| Memory capacity :120programs,1200steps, | |||||
| All repeat 999 cycles, part repeat 99 cycles | |||||
| Interior material | Stainless Steel Plate ( SUS 304 ) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| System | Balanced & Humidity Control System | ||||
| Wiring method | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | ||||
Company information
Being a first-class supplier and reliable partner, we are certified to ISO 9001 and got CE approval for all our products. All equipment are 7 x 24 hours tested before delivery. That explains why Komeg is the private brand of choice for many well-known brand enterprises, and also one of the very few designated suppliers who were recognized by many top 500 enterprises. Let Komeg's 26 years of professional experience work for you too.
1. Dedicate touch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide range of temperature and humidity environments
4. Capable of testing large components, assemblies and finished products
5. Customized sizes and configurations available
6. One year warranties
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Vibration Testing Machine( mechanical and electromagnetic)

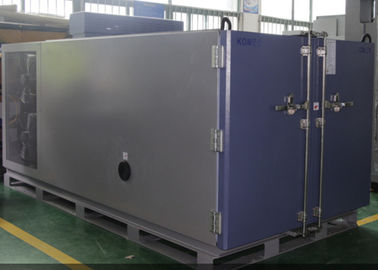

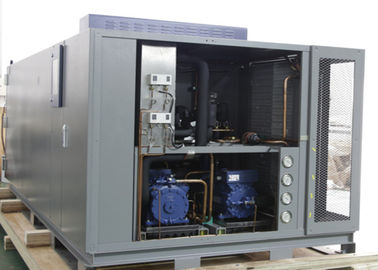

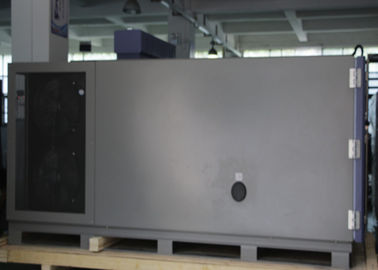

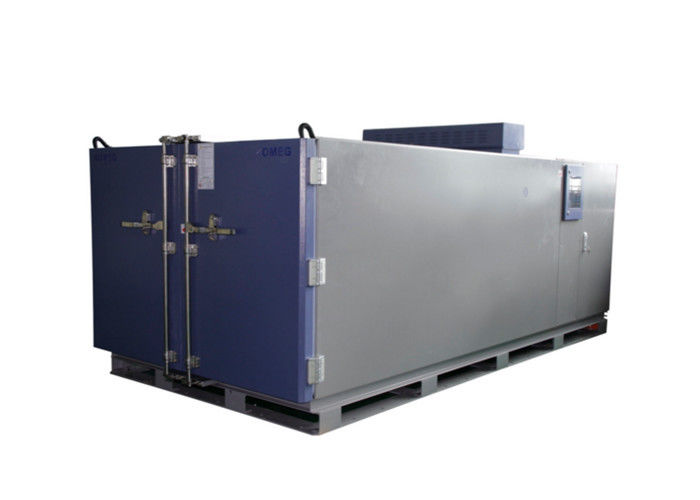

Photos show
