Customized Size High Low Temperature Test Chamber IEC Standards Aerospace Products

China Customized Size High Low Temperature Test Chamber IEC Standards Aerospace Products supplier
Customized Size High Low Temperature Test Chamber IEC Standards Aerospace Products supplier Customized Size High Low Temperature Test Chamber IEC Standards Aerospace Products supplier Customized Size High Low Temperature Test Chamber IEC Standards Aerospace Products supplier Customized Size High Low Temperature Test Chamber IEC Standards Aerospace Products supplier

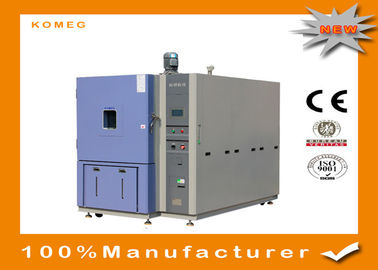

Large Image :  Customized Size High Low Temperature Test Chamber IEC Standards Aerospace Products

Product Details:

Place of Origin: China
Brand Name: Komeg
Certification: CE approval
Model Number: KU576

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: rigid poly foam and wooden box
Delivery Time: 35 day after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs /day
Contact Now
Detailed Product Description
Temp Range: -70℃ ~ +180℃ Temp Deviation: ≦ ± 0.5℃
Pressure Range: Normal Pressure ~1k Pa Interior Material: Stainless Steel
Exterior Material: Baked Painting Steel Heating Uptime: 0.7℃~1.0℃/minutes(Average )



High Low Temperature Low Pressure Test Chamber IEC Standards Aerospace Products





Main Technical specification



Model KU-216S KU-1000S KU-4500L
Internal volume 216L 1000L 4.5M
Inside Dimension W60xH60xD60CM W100xH100xD100CM W150xH174xD173CM
Outer Dimension according to design W181xH209xD266CM according to design
Temp range -70℃ ~ +100℃ -70℃ ~ +100℃ -40℃ ~ +100℃
Temp fulctuation ± 0.5℃ ≦±0.5℃(no load ) ±0.5℃(with load )
Heating up time Heating and cooling rate 0.7~ +1.0℃/min(Average )
cooling time Heating and cooling rate 0.7~ +1.0℃/min(Average )
Pressure range Normal pressure~0.5kPA Normal pressure~0.5kPA Normal pressure~0.5kPA
Blood pressure rate Normal pressure~1kPA ≦30 min(Normal temp status ) Normal pressure~1kPA ≦30 min(with load ,inner chamber dry ) Normal pressure~1kPA ≦30 min(with load ,inner chamber dry
Recovery time ≦10kPA /min ≦10kPA /min ≦10kPA /min





. Cooling System
1. Working mode Mechanical compression refrigeration
2. Compressor Europe and the United States imported hermetic compressor
3. Refrigerant Environmental-friendly refrigerant: R404A
4. Condenser Shell and Tube condenser(air -cooled)
5. Evaporator Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of low temperature and humidity conditions
6. Other accessories Use internationally-known brand, such as high precise expansion valve, oil extractor, dryer and many other accessories.
7.Refrigerant flow control Adjust energy consumption output and control automatically to the refrigeration system.





High altitude climate chamber can simulate the temperature /humidity condition of envieronment to evaluat potential success or failure of a product in the field. This kind of device come in a variety of sizes, from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large batches of product simultaneously.





Application



It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and materials under the conditions of high and low temperature and high temperature and humidity. For quality and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and other products, parts and materials.



Standards Implement and Met



GB11159-89
GB10590-89
GB15091-89
GB/T2423.25-1992
GB/T2423.26-1992
GJB150.0-86



Specifications



1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties

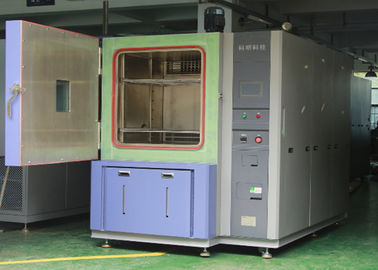

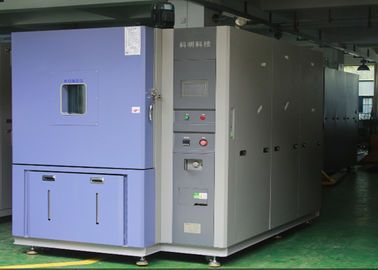

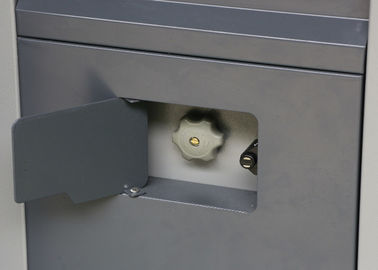

Photos show



Customized Size High Low Temperature Test Chamber IEC Standards Aerospace Products



Customized Size High Low Temperature Test Chamber IEC Standards Aerospace Products
