Medicine Stability Test Chamber , Water Cooled Temperature Humidity Testing equipment

Medicine Stability Test Chamber , Water Cooled Temperature Humidity Testing equipment
Medicine Stability Test Chamber , Water Cooled Temperature Humidity Testing equipment Medicine Stability Test Chamber , Water Cooled Temperature Humidity Testing equipment Medicine Stability Test Chamber , Water Cooled Temperature Humidity Testing equipment Medicine Stability Test Chamber , Water Cooled Temperature Humidity Testing equipment Medicine Stability Test Chamber , Water Cooled Temperature Humidity Testing equipment

Large Image :  Medicine Stability Test Chamber , Water Cooled Temperature Humidity Testing equipment

Product Details:
Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: KMH
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs/day
Detailed Product Description
High Temp Chamber: +60℃ ~200℃ Low Temp Chamber: -55℃ ~-10℃
Interior Material: SUS 304 Exterior Material: Baked Painting Steel
Compressor: Semi-Hermetic Compressor Cooling Mode: Water Cooled
High Light:

temperature and humidity chamber

,

temperature test chamber


Medicine Stability Test Chamber , Water Cooled Temperature Humidity Testing equipment



. Product Overview



Able to accurately simulate a wide range of complicated natural environments, and is suitable for



reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental



testing equipment and test methods for the basic parameters of electric and electronic products under



the condition of humidity, low temperature, high temperature, and constant heat.

. Application



It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and



materials under the conditions of high and low temperature and high temperature and humidity. For



quality and reliability test of simulating temperature and humidity changes in electrical, electronic,



mechanical and other products, parts and materials.

. Features



● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test

● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test

● GJBl50.3-2009(MIL-STD-810D) High Temperature Test

● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test

● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test

● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test

● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test

1.Energy conservation

Bypass mode to adjust cooling capacity to achieve a constant



temperature and humidity effectively

2Easy Operation

※Using company owned brand KOMEG KM-5166 LCD touch screen



controller with PID control parameters setting



※Flexible approach for data collection and recording

3High reliability

※Key parts are imported, ensuring the service life and high reliability



※Efficient oil separator to ensure the service life of the compressor



. Main technical parameters(Air cooled, room temperature +25℃, no load )



1. Temperature
1.1 Temperature range

-20℃ ~ +150℃



1.2 Temp Deviation

≦ ± 2.0℃



1.3 Temp Fluctuation

±0.5℃



1.4 Temp Uniformity

±2.0℃



1.5 Ramping and soaking rate

Heating up rate: -20℃↑ +100℃ about 35min (no-load, ambient temperature +25℃)

Cooling rate: 20 ℃to -20℃ about 45min (no-load, ambient temperature +25℃)

2. Humidity
2.1 Humidity range 20%R.H~98%R.H
3.3 Humidity deviation

±3.0%RH(>75%RH)

±5.0%RH(≤75%RH)

3.4 Humidity uniformity 3.0%RH (no-load)
3.5 Humidity fluctuation ±2.0%RH
Temperature and humidity performance test is in accordance with the relevant provisions of the IEC60068 -3 standard measurement; sensor placed in the unit outlet.
. Chamber Structure

Overall structure and chamber was composed of three parts as below.

Insulation box, separate refrigeration units, and electrical control cabinet.

  • Chamber size

Interrior: W 100 × H 100 × D 80Cm

Exterior size: W 128 × H 216 × D 175 cm (about)

2. Insulation box

※ Wall material: high-quality carbon steel with static color spray

※ Inner wall material: SUS304 # matte stainless steel plate

※ Insulation materials: rigid polyurethane foam insulation layer + glass fiber.



Packaging:

Medicine Stability Temperature Humidity​ Test Chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.


Company introduction:



Since 1990, manufacturers of custom environmental chambers and standard environmental chambers, Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude chambers, temperature chambers, temperature and humidity chambers, environmental test chamber manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in chambers, laboratory test chambers, environment test rooms.

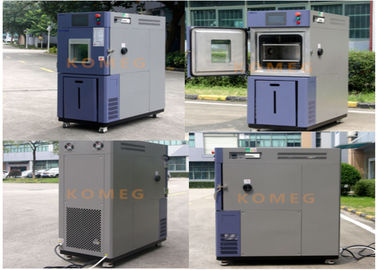

Photos show

Medicine Stability Test Chamber , Water Cooled Temperature Humidity Testing equipment 0

Medicine Stability Test Chamber , Water Cooled Temperature Humidity Testing equipment 1
