Product Details:
Payment & Shipping Terms:
|
| Cable Port: | Φ50mm*1 Located On Each Side Of Chamber, With Rubber Stopper And Stainless Steel Cover | Humidity Uniformity: | 3.0％RH (no-load) |
|---|---|---|---|
| Interior Material: | SUS 304 | Ramping And Soaking Rate: | Heating Up Rate: -20℃↑ +100℃ About 35min (no-load, Ambient Temperature +25℃) Cooling Rate: 20 ℃to -20℃ About 45min (no-load, Ambient Temperature +25℃) |
| Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） | Cooling Mode: | Water Cooled |
| High Light: | humidity and temperature controlled chamber,temperature test chamber |
||
Specification
| Capacity(L) |
408L
|
| Temperature range |
-40℃ ～ +150℃
|
| Temp Deviation |
≦ ± 2.0℃
|
| Temp Fluctuation |
±0.5℃
|
| Ramping and soaking rate |
Heating up rate: -40℃↑ +100℃ about 45min (no-load, ambient temperature +25℃)
Cooling rate: 20 ℃to -40℃about 60min (no-load, ambient temperature +25℃) |
| Humidity range |
20%R.H～98%R.H
|
| Humidity deviation |
±5.0％RH(≤75％RH) |
| Humidity uniformity |
3.0％RH (no-load)
|
| Humidity fluctuation |
±2.0％RH
|
| Humidifier |
Water basin heating and humidification method;
Stainless steel sheathed heater;
Heater control: no-contact control (SSR);
Water level control device, heater anti-dry device |
Cooling System
| Working mode |
Mechanical compression refrigeration
|
| Compressor |
Europe and the United States imported hermetic compressor
|
| Refrigerant |
Environmental-friendly refrigerant: R404A
|
| Condenser |
Shell and Tube condenser(air -cooled)
|
| Ambient temp. and humidity | 5 ～ 35℃ |
| Evaporator |
Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of
low temperature and humidity conditions |
| Other accessories |
Use internationally-known brand, such as high precise expansion valve, oil extractor,
dryer and many other accessories. |
| Refrigerant flow control |
Adjust energy consumption output and control automatically to the refrigeration system.
|
| Refrigeration Technology |
Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable.
water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber.
|
| Pre-set function |
Boot time can be set freely and machine runs automatically when turning on power
|
The chambers is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Programmable Temperature Humidity Climatic Test Chamber Price applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Feathers
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test

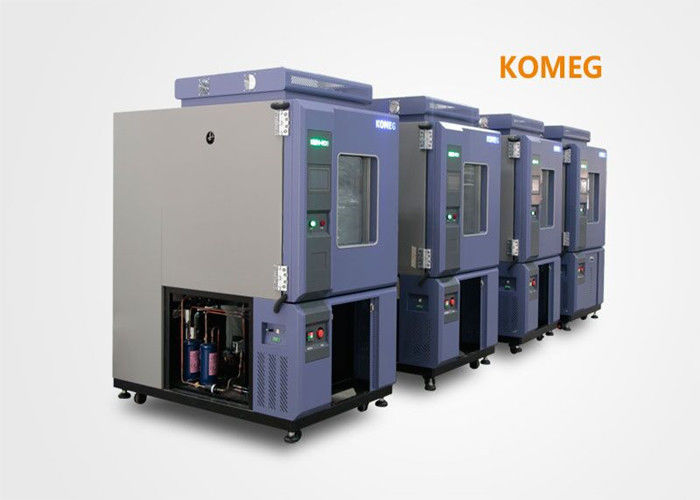

KOMEG brand of temperature and humidity test chamber is the ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range. Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 150 °C and 10% to 98% RH.Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 150 °C with humidity.
For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18029096856

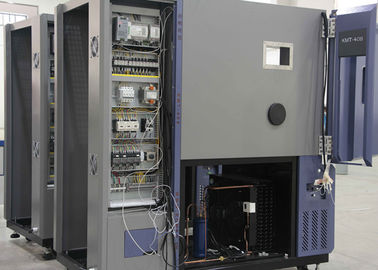

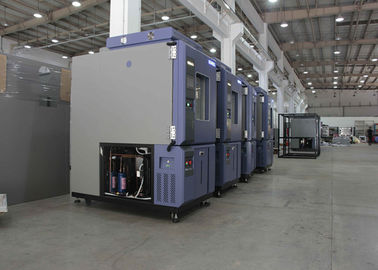

Photos show
