High Temperature Drying Ovens With Trays For Printing Trial Molding

China High Temperature Drying Ovens With Trays For Printing Trial Molding supplier
High Temperature Drying Ovens With Trays For Printing Trial Molding supplier High Temperature Drying Ovens With Trays For Printing Trial Molding supplier High Temperature Drying Ovens With Trays For Printing Trial Molding supplier

Large Image :  High Temperature Drying Ovens With Trays For Printing Trial Molding

Product Details:

Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: KNO-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: rigid poly foam and wooden box
Delivery Time: 30 day after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs /day
Contact Now
Detailed Product Description
Interior Size: 60W*65H*50D Exterior Size: 90WX170HX64D
Temp Range: 50℃~200℃ Approx 50Min Interior Material: Stainless Steel
Exterior Material: Baked Painting Steel Insulation Material: Glass Wool

Description



High Temperature Drying Ovens With Trays For Printing Trial Molding



OEM and ODM are welcome



Specification



Industiral Oven
SPECIFICATIONS Note: We reserve the right to change specifications without prior notice
MODEL Kov-500
Temp. range 50°C ~ 200 °C
Temp. constancy ±1.0 °C
Temp. uniformity ±2.0°C
Heat up time ±20 ~ + 200 °C about 50 Min
Interior dimension 60W*65H*50D
Exterior dimensions 90W*170H*64D
Interior material Stainless steel
Exterior material Baking painted steel
Insulation material Glass wool
Safety devices No Fuse Breaker, Over Temp. relay, ceramic fuse
Accessories Recorder 30hr isolating layer *2, N2 or CO2 flow meter
Capacity (KVA) 3 4.2 5.1 9
Power AC220V±10% 1Φ 50Hz/60Hz




Other specification



Door Sealing Silicone, double wing door
Material Inner material:SUS304# stainless steel ;Exterior size:cooling baked painting
Insulation material Glass wool
Heater High quality nickel-chromium alloy wire electric heaters,
Temperature Controller

ST-570 South Korea imported thermostat ST-570

*high precision(0.1%), high performance

*Support multiple input (T / C, RTD, DCV)

*Can finish multiple output and simultaneous output (Max 4 points)

*Simple parameter operation , available text settings

*Supports suppressing system Overshoot function

*Alarm output 1 point

Auxiliary output status operation screen displayed

*Each zone input adjustment function (Max 4 Zone)

To achieve control heating and cooling function

*PID automatic adjustment function (AT Gain)

(AT Gain)

*Supports multiple communication protocols (Modbus, etc.)

*To achieve high quality, high reliability (CE, CUL, ISO, etc.)

Temperature body K thermoelectric
ventilator Ventilator 1 type, displacement of 130 ~ 250m3 / h (from the exhaust fan to the duct outside the laboratory to be handled by the customer)
Protection System Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch.
Work timer Digital working timer 1type, the timer starts when the temperature reaches the set value, , 0 ~ 9999 hours
Control panel

Controller ;‚Over-temperature protection;ƒwork timer; ④ emergency stop switch; ⑤ power switch;⑥ timer switch; ⑦ fault lights.





Application


The Ovens are mostly used for drying, baking, sterilization of non - volatile items and heat treatment test
For mining enterprises, schools, medical and scientific research. Expecially for simultaneous drying of different kinds of polymers .
In small quantities for drying materials for trial molding. They can also be applied in electronic engineering, electroplating,
And pharmacy, paint baking, printing industries, etc. For preheating or drying related products.


Features



● GB-2423.2-89(IEC68-2-2)Test B:High Temperature Test

● GJB360.8-87(MIL-STD.202F) High Temperature Life Test

● GJBl50.3(MIL-STD-810D)High temperature test

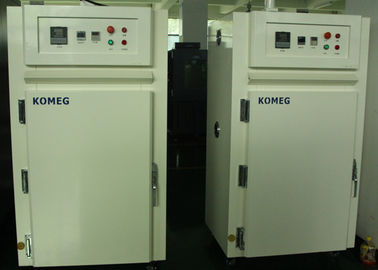

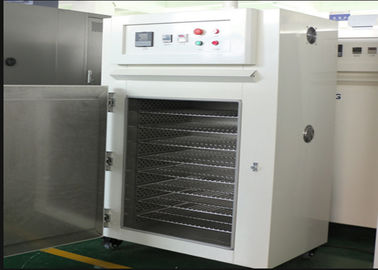

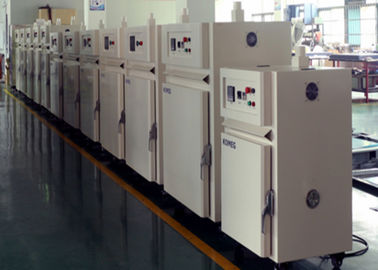

Photos show



High Temperature Drying Ovens With Trays For Printing Trial Molding
