Power: | AC 380±10% 50Hz ,3 Phase 4 Wires +Ground Wires | Ambient Temp: | +5ºC~+35ºC |
---|---|---|---|
Temp Range: | -20℃ ~ +150℃ | Temp Uniformity: | ±2.0℃ |
Exterior Material: | Baked Painting Steel | Insulation Material: | Glass Wool |
High Light: | temperature and humidity chamber,temperature test chamber |
Large Capacity Low And High Temperature Chamber / Climatic Cycle Test Chamber
Description
Able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing equipment and test methods for the basic parameters of electric and electronic products under the condition of humidity, low temperature, high temperature, and constant heat.
Specification
Workspace volume | IW 700 × IH 750 × ID 800 mm |
Exterior size | EW 980 × EH 1936 × ED 1735 mm |
Temperature range | -70 ℃ ~ +150 ℃ |
Temp Deviation | ±0.5℃ |
Temp Constancy | ±2.0℃ |
Temp Uniformity | ±2.0℃ |
Camping and soaking rate |
+20℃↓ -70℃ Within 80 min -70℃↑ +100℃ Within 60 min |
Humidity range | 20%R.H.~98%R.H |
Humidity deviation | ±2%RH |
Humidity uniformity | 3.0%RH |
Chamber Structure
Overall structure and chamber was composed of three parts as below.
Insulation box, separate refrigeration units, and electrical control cabinet.
Insulation box |
※ wall material: high-quality carbon steel with Static color spray ※ inner wall material: SUS304 # matte stainless steel plate ※ Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |

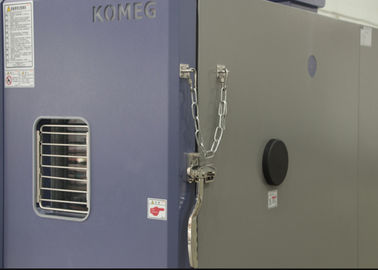

Door | Heating wire was installed at the door frames to prevent condensation at low temperatures. |

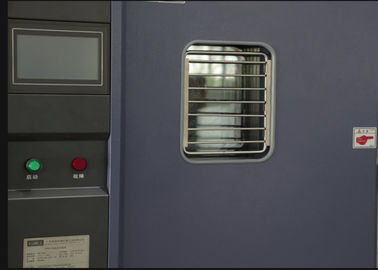

Lighting device | 11W/AC220V *1 located on observation window |
Water outlet hole | Available for drain the condensate water |
Sample holder | Two layers of stainless steel sample holder |
Mobile Casters | Mobile Casters *4 with foot cups |
Electric control box | Total power circuit breaker, over-temperature protection. |
Application
It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and materials under the conditions of high and low temperature and high temperature and humidity. For quality and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and other products, parts and materials.
Features
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test

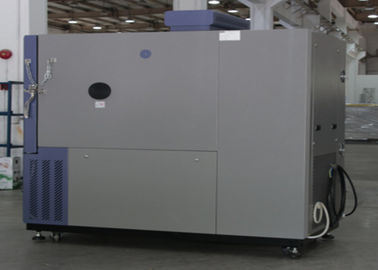

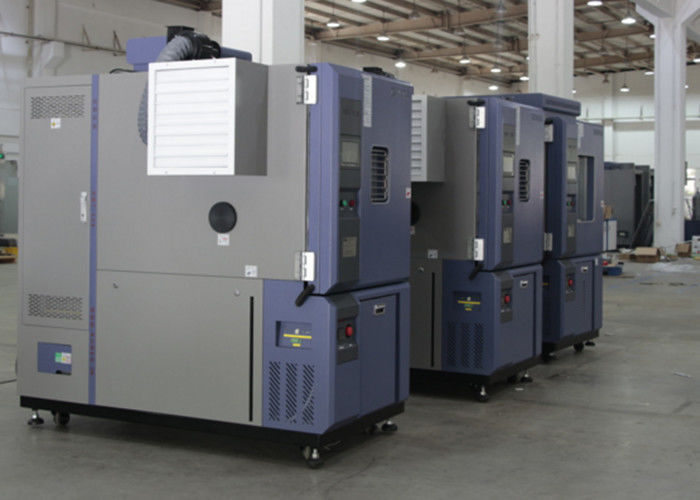

Photos show
|
