| Cable Port: | Φ50mm*1 Located On Each Side Of Chamber, With Rubber Stopper And Stainless Steel Cover | Humidity Uniformity: | 3.0％RH (no-load) |
|---|---|---|---|
| Interior Material: | SUS 304 | Ramping And Soaking Rate: | Heating Up Rate: -20℃↑ +100℃ About 35min (no-load, Ambient Temperature +25℃) Cooling Rate: 20 ℃to -20℃ About 45min (no-load, Ambient Temperature +25℃) |
| Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） | Packing: | Rigid Foam And Wooden Box |
| Highlight: | humidity and temperature controlled chamber,temperature test chamber |
||
The chambers is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-
resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Programmable Temperature Humidity Climatic Test Chamber Price applied to test the prodcuts quality, such
as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building
materials, aerospace, medical care and so on.
Feathers
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
Specification
| Capacity(L) |
800L Model no :KMH-800
|
|
Temperature range |
L :-20℃ ～ +150℃ R : -40℃ ～ +150℃ S : -70℃ ～ +150℃
|
|
Temp Deviation |
≦ ± 2.0℃
|
|
Temp Fluctuation |
±0.5℃
|
|
Ramping and soaking rate |
Heating up rate: -40℃↑ +100℃ about 45min (no-load, ambient temperature +25℃)
Cooling rate: 20 ℃to -40℃about 60min (no-load, ambient temperature +25℃) |
|
Humidity range |
20%R.H～98%R.H
|
|
Humidity deviation |
±5.0％RH(≤75％RH)
|
|
Humidity uniformity |
3.0％RH (no-load)
|
|
Humidity fluctuation |
±2.0％RH
|
|
Humidifier |
Water basin heating and humidification method;
Stainless steel sheathed heater;
Heater control: no-contact control (SSR);
Water level control device, heater anti-dry device |
Main Material List imported from famous brand
|
Name |
Brand
|
|
Compressor |
French Tecumseh
|
|
Oil separator |
American Emerson, ALCO, Temprite
|
|
Plate heat exchanger |
GEA, Xingsuneng, Guoxing
|
|
press switch |
Denmark DANFOSS, Saginomiya
|
|
Condenser |
Guangzhou Yongqiang, Klean Air
|
|
Evaporator |
Yongqiang
|
|
Dry filter |
Denmark DANFO SS, USA SPORLAN |
|
Capillary tube |
KOMEG
|
|
Expansion valve |
Denmark DANFOSS, USA SPORLAN
|
|
Magnetic valve |
Japan SAGLNOMLYA
or Nickideu /
Denmark DANFOS |
|
Controller |
KOMEG
|
|
Residual current circuit breaker |
Taiwan SHIHLIN
|
|
No-fuse switch |
French Schneider
|
|
AC contactor |
Japan French Schneider
|

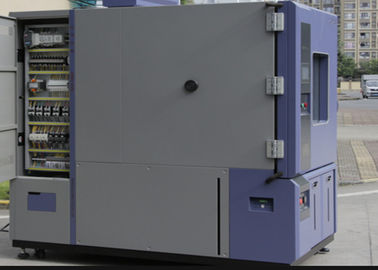

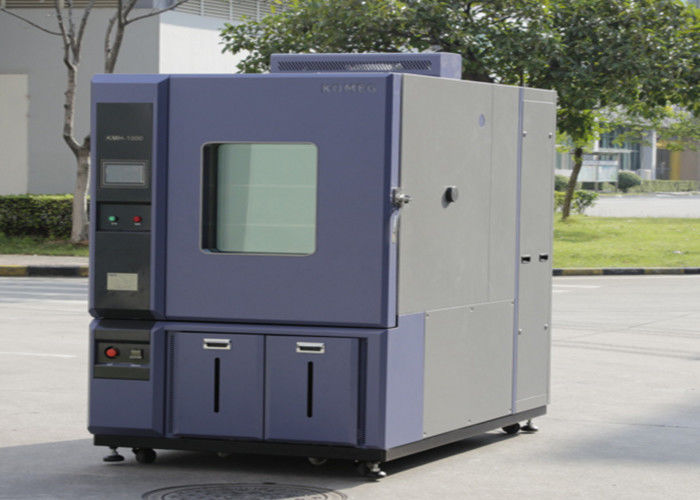

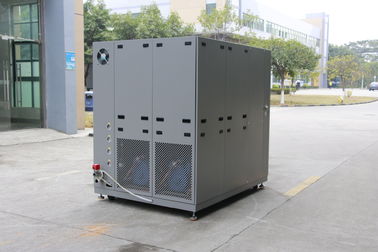

Photos show
