Product Details:
Payment & Shipping Terms:
|
| Temp Range: | -70℃ ～ +150℃ | Temp Deviation: | ≦ ± 0.5℃ |
|---|---|---|---|
| Pressure Range: | Normal Pressure ～1k Pa | Interior Material: | Stainless Steel |
| Exterior Material: | Baked Painting Steel | Heating Uptime: | 0.7℃～1.0℃/minutes(Average ) |
| High Light: | large industrial ovens,vacuum drying oven |
||
Double Layer Lab Drying Oven Electric Vacuum Heat Chamber Vacuum Drying Oven
OEM &ODM are welcome ,kindly contact :anna@komegtech.com
Application
Vacuum Drying Oven is widely used in biochemistry, chemical and pharmaceutical, health care, agricultural research, environment protection and other areas of research and application for powder drying, baking and all kinds of glass containers’ disinfection and sterilization. Especially for those drying heat-sensitive, labile, oxidizing material and decompounded to carry on fast and effective drying process.
Standards Implement and Met
This type of product can meet the following criteria:
● GB-2423．2-89(IEC68-2-2)Test B: High Temperature Test
● GJB360．8-87(MIL-STD．202F) High Temperature Life Test
● GBJl50．3(MIL-STD-810D) High Temperature Test
Specifications
1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties
| Model no | kov-210A |
|
Air supply mode |
Forced air circulation |
|
Temp Range |
+50℃ ～ +200℃ |
|
Temp fluctuation |
±1.0℃ |
|
Heat up time |
+50℃ ～ +250℃ About 70min |
|
Control mode |
PID+SSR output |
|
Door Seal |
Single door with silica |
Temperature controller
|
Sensor |
High precision DIN A class,Dry ball φ4.8mm SUS #304 PT 100Ω |
|
Controller |
Color touch screen controller with PID control |
|
Display function |
Temp and humidity setting (SV) The actual (PV) value is displayed directly; Support executive program number, Paragraph, remaining time, number of cycles, running time display; Program editing and graphical curve display; Fixed point or program action status display; 7-inch resolution: 800 * 480, 65535 true color, LED backlight display screen. |
|
Control resolution |
Temp: + 0.01℃；Humidity: + 0.1%；time: 0.01min |
|
Setting range |
Temp Condition:–100～200 ℃； According to the temperature of the chamer to adjust the working range (upper limit +5 ℃, lower limit -5 ℃) Humidity Condition:0～100 %RH |
|
Operating mode |
Programmable running, constant running |
|
Program capacity |
Running time up to 999999 h 59 m (also can be set to continue running without time limit); Available program capacity: up to 269 groups, a total of 13450 paragraphs; Usable memory capacity: 50 steps per group; Repeatable commands: Up to 32000 cycles per command |
|
Setting way |
Man-machine dialogue mode, using touch input and control |
|
Communication Interface |
RS-232,RS-485 and Ethernet. Data collection and curve display when connected with a computer Can be used as monitoring and remote control system Multi machines synchronization control available |
|
U Disk Memory Card |
1G-8G available for downloading historical curve and data, pluggable |
| Ⅵ. Cooling System | |
| 1. Working mode | Mechanical compression refrigeration |
| 2. Compressor | Europe and the United States imported hermetic compressor |
| 3. Refrigerant | Environmental-friendly refrigerant: R404A |
| 4. Condenser | Shell and Tube condenser(air -cooled) |
| 5. Evaporator | Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of low temperature and humidity conditions |
| 6. Other accessories | Use internationally-known brand, such as high precise expansion valve, oil extractor, dryer and many other accessories. |
| 7.Refrigerant flow control | Adjust energy consumption output and control automatically to the refrigeration system. |
KOMEG brand of temperature and humidity test chamber is the ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range. Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 150 °C and 10% to 98% RH.Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 150 °C with humidity.
For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18098281986

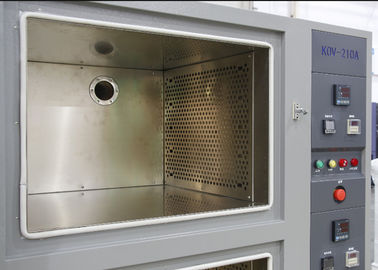

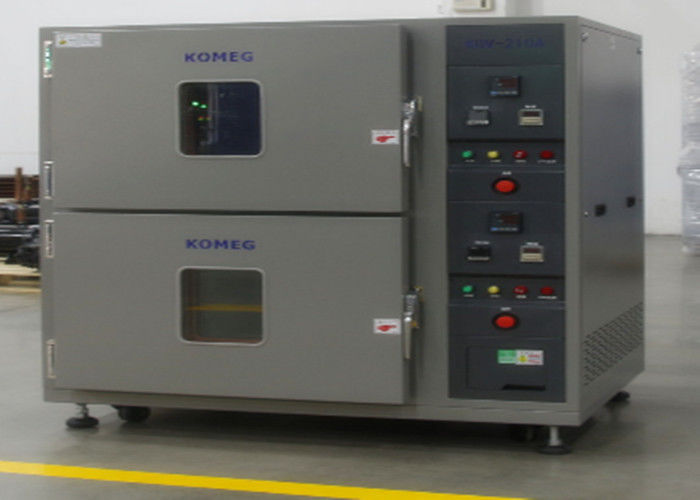

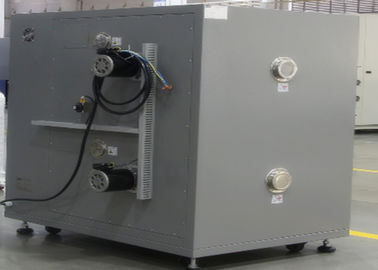

Photos show
