| Temp Range: | +15℃ ～ +50℃ | ||
|---|---|---|---|
| High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |
||

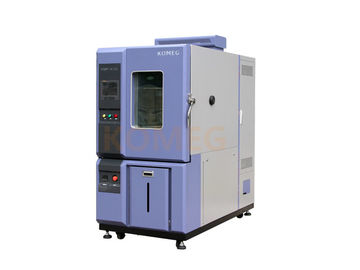

Temperature and humidity chamber KMH-408
Product Application
Temperature and humidity test chamber is also called temperature and humidity
testing machine, constant temperature and humidity experimental chamber, programmable wet heat
alternating test chamber, or constant temperature machine. The Temperature and humidity test chamber
is used to inspect equipments quality and test performance of materials in various environments,
and all kinds of materials properties of heat resistance, cold resistance, dry resistance and
moisture resistance, which is fit for Electronics, electrical appliances, mobile phones, communications,
meters, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and
other products quality inspection.
1.Material quality of inner box is SUS304 # mirror-face stainless steel imported, and outer box is steel
plate and the paint. Box body is processed shape using CNC machine tool, its shape is beautiful and
fine.
2.Heat preservation material used glass fiber cotton of high-intensity PU foam and high density, which
can avoid unnecessary energy loss.
3.Large glass window design, viewing angle in all directions, hollow electric plating film and anti-
condensation design, built-in lights to facilitate the test sample state of real-time observation in the
course of testing.
4.Large-size LCD display screen, simple operation, easy to edit programs. PID with automatic calculation
function, show failure message .
5.An RS-232 communication interface, matching recorder, strong expandability.
6.with timing contact, and be able to cope with dynamic testing and measure test.
7.The system-wide multi-security protection and power-cut memory.
8.Freezer imported by the French original armored warrior compressor and use environmental-friendly
refrigerant (R134a, R404a, R23).
9.Frozen system uses units or low-temperature dual-loop system design.
10.Use more powerful wing-blower air supply cycle, to avoid any dead end, temperature and humidity are
evenly distributed in the test region.
11.Wind-road cycle adopted the design of blowing side wind and return wind. Wind pressure and wind
speed are in accord with test standards, and make the door instantaneous temperature and humidity
open that is stabilized time soon.
12.Heating, cooling, humidification and dehumidification system is totally unaided to improve efficiency,
reduce testing cost, increase life expectancy and lower failure rate.
Prouduct Specifications
| Model | KMH-408R/L/S | |||||
| Inside Dimension | 70*75*80 | |||||
| Outer Dimension | 90*178.5*182 | |||||
| Temp range | R-20 ℃~+150 ℃ , L-40 ℃~+150 ℃ , S-70 ℃~150 ℃ | |||||
| Temp deviation | ±20 ℃ | |||||
| Temp fluctuation | ±0.5 ℃ | |||||
| Temp uniformity | ±2 ℃ | |||||
| Humidity range | 20-98%R.H | |||||
| Humidity deviation | ±3.0%RH(>75%RH)±5.0%RH(≤75%RH) | |||||
| Humidity uniformity | ±3.0%RH | |||||
| Humidity constancy | ±2.0%RH | |||||
| Heating and cooling rate | R+20 ℃↓-20 ℃Within45min L+20℃↓-40℃Within60min S+2020℃↓-70℃WITHIN80min | |||||
| -20 ℃↑+100℃D19Within35min -40 ℃↑+100℃D19Within45min -70 ℃↑+100℃D19Within60min | ||||||
| System | Balanced&Humidity Control System | |||||
| Interior material | vPlate(SUS304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Refrigeration system | Hermetic compressor,Single stage refrigeration CFC free refrigerant system | |||||
| (HFC-507/HFC-23)Hermetic Compressor,Cascsde Refrigeration CFC free refrigerant | ||||||
| Controllor | LCD Toch panel,Chinese or English display selectabile | |||||
| Safety Devices | No fuse breaker,over pressure,over heat and over current protectors | |||||
| for compressor,over temp.protector,over load protectoroffan,dry heat prtechto | ||||||
| Standard Accessories | Sightwindow*1,cable port(portØ50mm)*1,shelves*2,chamberlamp*1,power cable2m | |||||
| Weight(Kg) | 520 | |||||
| Ambient Temp | +5℃~+35℃ | |||||
| Power | AC380±10%50Hz 3phase 4 wires+Groud Wires | |||||
Environmental test chamber Standard
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
FAQ:
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about
the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link
power in your lab, then can start to operate;
Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it;
Thirdly, some of customized chambers we should to install and teach your team to operate.
