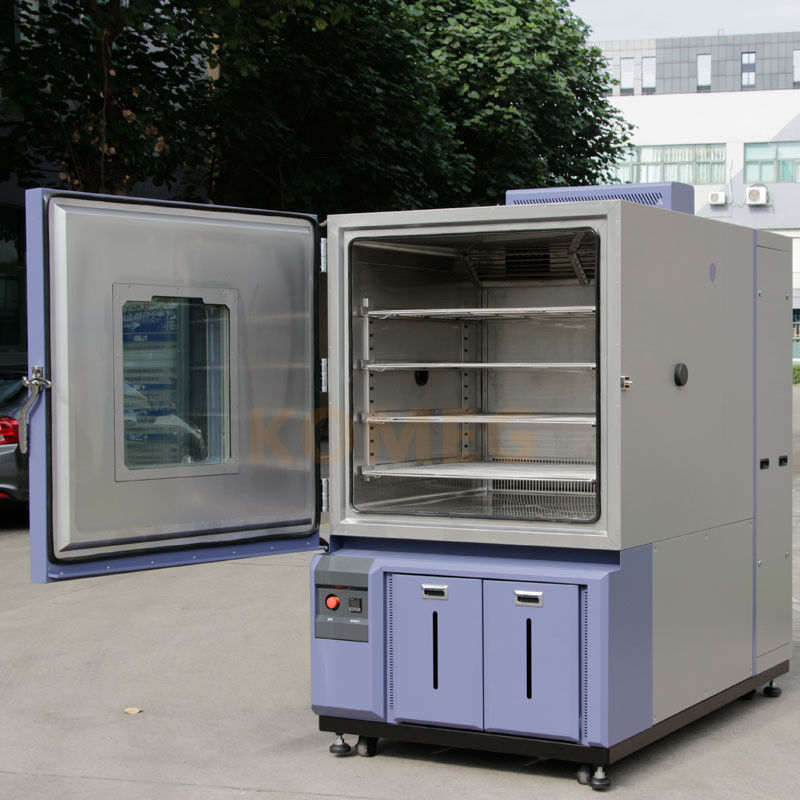

Temperature Humidity Climate Stability Testing Chamber with LCD Touch Screen

China KOMEG Technology Ind Co., Limited certification
China KOMEG Technology Ind Co., Limited certification
Fast delivery and quality products.

—— Gozia

Friendly and pleasant cooperator, "I like the factory, I like the design, I like the workstyle"

—— Wagner

The design and quality impress me a lot.

—— Mr Yee

" A trustworthy supplier of climatic test chamber".

—— Denis

I'm Online Chat Now

Temperature Humidity Climate Stability Testing Chamber with LCD Touch Screen

Temperature Humidity Climate Stability Testing Chamber with LCD Touch Screen
Temperature Humidity Climate Stability Testing Chamber with LCD Touch Screen Temperature Humidity Climate Stability Testing Chamber with LCD Touch Screen

Large Image :  Temperature Humidity Climate Stability Testing Chamber with LCD Touch Screen

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: KOMEG
Certification: CE, ISO9001
Model Number: KMH-1000R
Payment & Shipping Terms:
Minimum Order Quantity: ONE SET
Price: 10000-20000USD / SET
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual inside
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 SETS PER YEAR
Detailed Product Description
Exterior Material: Baked Painting Steel Or Stainless Steel Interior Material: SUS 304 Stainless Steel Plate
Internal Volume: 1000L Application: Laboratory, Testing Center, Production Line
Heating Speed: 3℃/min Humidity Range: 20%~98%
Temperature Range: -40℃/-70℃~+150℃ Function: Battery Climate Test
Warranty: 12 Months Free Parts Warranty Temperature Rate: Heating 3 Degree/min Cooling 1 Degree/min
High Light:

temperature and humidity chamber

,

humidity and temperature controlled chamber



Temperature Humidity Climate Stability Testing Chamber with LCD Touch Screen





Product Application





Able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing equipment and test methods for the basic parameters of electric and electronic products under the condition of humidity, low temperature, high temperature, and constant heat.





Technical Specification for KMH-36L and KMH-64L





Model KMH-36L(Benchtop) KMH-64 series
64 R 64 L 64 S
Temp. range -40°C ~150°C -20°C ~150°C -40°C ~150°C -70°C ~150°C
Interior size W(mm) 300 400 400 400
H(mm) 400 400 400 400
D(mm) 300 400 400 400
Exterior size W(mm) 460 600 600 600
H(mm) 780 1526 1526 1526
D(mm) 1002 1200 1200 1200
Power(KW)   5.8 5.8 5.8
Weight(KG)   300 300 300





Specification for Other Model



KMH-R series



Model KMH-R series
150R 225R 408R 800R 1000R
Temp. range -20°C ~150°C
Interior size W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 240 280 400 500 580
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -20°C ~+100°C ,within 35 min
Pull down time +20°C ~-20°C , within 45 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles





KMH-L series



Model KMH-L series
150 L 225 L 408 L 800 L 1000 L
Temp. range -40°C ~150°C
Interior size W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 250 300 420 530 600
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -40°C ~+100°C ,within 45 min
Pull down time +20°C ~-40°C , within 60 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles



KMH-S series



Model KMH-S series
150S 225S 408S 800S 1000S
Temp. range -70°C ~150°C
Interior sizel W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 280 330 450 550 650
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -70°C ~+100°C ,within 60 min
Pull down time +20°C ~-70°C , within 80 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles





Features



1. Microprocessor controller for temperature and humidity ensures of precise and reliable control.


2. Simulate changing temperature and light in day/night


3. Independent temperature-limiting alarm system ensures experiments run safely.


4. Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.


5. Even air circulation


6. Imported compressor


7. RS485 connector is option which can connect computer to record the parameters and the variations of temperature.(option)



Temperature Humidity Climate Stability Testing Chamber with LCD Touch Screen 0



Chamber Design Features



1. High performance and quiet operation (68 dBA)

2. Space-saving designed for flush installation to wall

3. Full thermal break around doorframe

4. One 50mm diameter cable port o left, with flexible silicone plug

5. Accurate wet/dry-bulb humidity measurement system for easy maintain



Programmable Controller



1. PLC controller for test chamber

2. Step types include: ramp, soak, jump, auto-start, and end

3. RS-232 interface to connect computer for output
