Temp Range: | -20℃~ +150℃ | Temp Deviation: | ≦ ± 0.5℃ |
---|---|---|---|
Lighting Device: | LED Light | Interior Material: | Stainless Steel |
Exterior Material: | Baked Painting Steel | Heator: | SSR |
High Light: | humidity and temperature controlled chamber,temperature test chamber |
Description:
408L Powder Coated Temperature Humidity Chamber With CE Mark Stainless Steel
OEM and ODM are welcome
Technical Specifications
1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties
Temp range |
-20 ~ +150 ℃
|
Temp Deviation |
≦ ± 2.0℃
|
emp Fluctuation |
±0.5℃
|
Temp Uniformity |
±2.0℃
|
Heating up rate |
-20℃↑ +100℃ about 45min (no-load, ambient temperature +25℃)
|
cooling rate |
20 ℃ down to -40℃ about 45min (no-load, ambient temperature +25℃
|
Chamber size |
Workspace volume: W 700 × H 700 × D 480 mm
Exterior size: W 900 × H 1735× D 1500 mm (about) |
Insulation box |
Wall material: high-quality carbon steel
Inner wall material: SUS304 # matte stainless steel plate
Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
Door |
Observation window door, . Heating wire was installed at the door frames to
prevent condensation at low temperatures. |
Lighting device |
LED
|
Heating |
High quality nickel-chromium alloy wire electric heaters,
Non-contact control mode(SSR) |
Cable port |
Φ100mm*1 located on each side of chamber, with rubber stopper and stainless steel cover
|
Shelf for samples |
Two layers of stainless steel sample holder. Adjustable, load capacity 30kg/ layer
|
Mobile Casters |
Mobile Casters with foot cups
|
Explosive pressure relief device |
When the pressure in the equipment or pipe over the safety valve,
automatically open the pressure relief
a. When the test box in the product explosion, there is a pressure release pipe
b. Protection of test equipment,
C. protection human |
Ⅵ. Cooling System
|
|
1. Working mode |
Mechanical compression refrigeration
|
2. Compressor |
Europe and the United States imported hermetic compressor
|
3. Refrigerant |
Environmental-friendly refrigerant: R404A
|
4. Condenser |
Shell and Tube condenser(air -cooled)
|
5. Mobile Casters |
Mobile Casters with foot cups
|
6. Shelf for samples |
Two layers of stainless steel sample holder. Adjustable, load capacity 30kg/ layer
|
7.Humidifier
|
Water basin heating and humidification method;
Stainless steel sheathed heater;
Heater control: no-contact control (SSR);
Water level control device, heater anti-dry device. |
Application
It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and materials under the conditions of high and low temperature and high temperature and humidity. For quality and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and other products, parts and materials.
Standards Implement and Met
● GB-2423.1-2008(IEC68-2-1)Test A: Low Temp test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temp test
● GJB360.8-2009(MIL-STD.202F) High Temp Lifetime test
● GJBl50.3-2009(MIL-STD-810D) High Temp Test
● GJBl50.4-2009(MIL-STD-810D) Low Temp Test

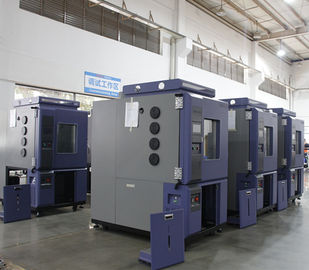

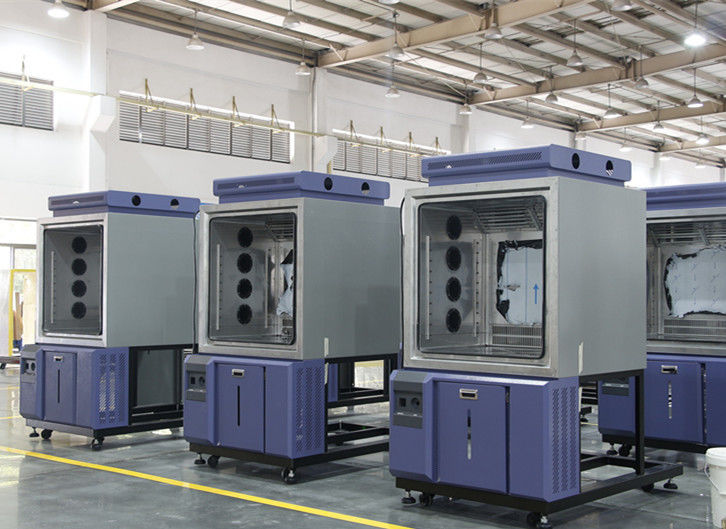

Photos show
