Product Details:
Payment & Shipping Terms:
|
Usage: | Temperature Change Test Chamber | Insulation Material: | Rigid Polyurethane Foam And Glass Fiber Wool |
---|---|---|---|
Cooling Mode: | Water Cooled | Heater: | Iron-chrome Wire Heater |
Controllor: | Touch Screen Programmable Controller | Temperature Range: | -40 °C To 150 °C |
Material: | SUS304 Stainless Steel | Power Supply: | AC 380V±10% 50Hz ,3 Phase 4 Wires +Ground Wires |
Exterior Material: | Baked Painting Steel | Workspace Volume (W X H X D): | 1000*1000*1000mm |
High Light: | high temperature test chamber,low temperature test chamber |
General description:
An environmental chamber, also called climatic chamber or climate chamber, is an enclosure used to test the effects of specified environmental conditions on biological items, industrial products, materials, and electronic devices and components.
Such a chamber can be used:
as a stand-alone test for environmental effects on test specimens;
as preparation of test specimens for further physical tests or chemical tests;
as environmental conditions for conducting testing of specimens;
This equipment is widely applied for aviation, communication, electronic, etc. industries, instruments and meters electric products, materials, high temperature, low temperature separate or synchronous simulate environment adaptability and reliability test.
Main features:
1.SUS#304 stainless steel interior, powder coated finishing for the exterior chamber.

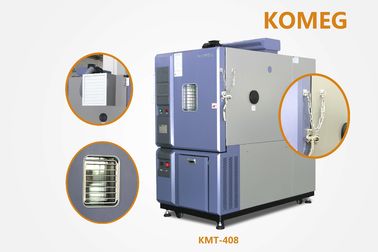

2. With a glass window to view testing samples, equipped with a sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness bulbs to provide light inside the box.
3.Double-layer-insulated gastight doors, able to insulate the internal temperature effectively.
4.The water supply system is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh compressor is used for the cooling system, capable of removing the lubricant between the condensation pipes and capillaries. environment-friendly coolant is (R23, R404A)
6.Precise touch screen controller, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and with a temperature ramp
8. Floor standing with casters for ease of mobility, with strong positioning screws.
9. The heating and cooling rate are from 5°C/min 10°C/min to 15°C/min, as per your specific request.
Parameter Specifications
KMH-R series | ||||||
Model | KMH-R series | |||||
150R | 225R | 408R | 800R | 1000R | ||
Temp. range | -20°C ~150°C | |||||
Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 240 | 280 | 400 | 500 | 580 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat uptime | -20°C ~+100°C, within 35 min | |||||
Pull downtime | +20°C ~-20°C, within 45 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, overpressure,overheat and over current protection for compressor, Over temp. protect, overload protect of the blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model: Program or fixpoint running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
Specifications ( at +20℃ room temp. Or+25℃ water temp with empty load) | |||||
Model | KMH-L series | ||||
KMH-150L | KMH-225L | KMH-408L | KMH-800L | KMH-1000L | |
Interior material(cm) | 60*60*46 | 70*70*48 | 70*75*80 | 100*100*80 | 100*100*100 |
Exterior material(cm) | 88*173*140 | 98*189*146 | 98*194*174 | 128*216*175 | 128*216*195 |
Weight(Kg) | 250 | 300 | 420 | 530 | 600 |
Equipment power(KW) | 7.5 | 7.5 | 8.5 | 14.5 | 14.5 |
Temperature range | -40 ℃ ~ +150 ℃ | ||||
Humidity range | 20 ~ 98%R.H | ||||
Temperature constancy | ±0.5℃ | ||||
Humidity constancy | ±2.5% R.H | ||||
Temperature uniformity | ±2.0 ℃ | ||||
Humidity uniformity | ±3.0% R.H(>75%) ±5.0% R.H (≤75%) | ||||
Heating rate | -40℃~+100℃ Within 45 minutes | ||||
Cooling rate | +20℃~-40℃ Within 60 minutes | ||||
Controller | Touch screen controller English menu Operation mode: setting or program | ||||
Refrigeration system | Air-cooled (Water Cooled Type is an option) | ||||
Hermetic compressor, stage refrigeration system | |||||
Interior material | Stainless Steel Plate ( SUS 304 ) | ||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
System | Balanced & Humidity Control System | ||||
Wiring method | AC 380±10 % 50Hz,3 phase 4 wires +Ground Wires | ||||
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
Technical parameters: | |||||
Environmental Temperature and Humidity Chamber | |||||
Specifications ( at +20°C room temp. Or+25°C water temp with empty load) | |||||
Model | KMH-S series | ||||
225S | 408S | 800S | 1000S | ||
Interior size | W(mm) | 700 | 700 | 1000 | 1000 |
H(mm) | 700 | 750 | 1000 | 1000 | |
D(mm) | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 980 | 980 | 1280 | 1280 |
H(mm) | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1460 | 1740 | 1750 | 1950 | |
Weight(KG) | 330 | 450 | 550 | 650 | |
Temp. range | -70 °C ~+150°C | ||||
Humidity Range | 20 ~ 98&R.H. | ||||
Temp. constancy | ±0.5ºC | ||||
Humidity constancy | ±2.5%R.H | ||||
Humidity uniformity | ±3.0%R.H | ±5.0 % R.H | |||
Heat uptime | -70°C ~ +100°C, within 60 min | ||||
Pull downtime | +20°C ~ -70°C, within 80 min | ||||
Equipment Power | 9.5KW | 10.6KW | 18.5KW | 18.5KW | |
Ambient Temp. | 5ºC ~+35ºC | ||||
Standard accessories | Sight window*1, cable port(port 50mm)*1, shelves*2, chamber lamp*1, power cable *2m | ||||
Safety device (standard) | No fuse breaker, overpressure overheat and over current protection for compressor, | ||||
Over temp. protect, overload protect of the blower, dry heat protection | |||||
Control System | Balanced Temperature & Humidity Control System | ||||
Refrigeration system | Air Cooled (Water Cooled Type is an option) | ||||
Hermetic compressor, Cascade Refrigeration | |||||
CFC-Free refrigerant(HFC-507/HFC-23) | |||||
Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | ||||
Operation model: Program or fixpoint running | |||||
Memory capacity :120programs,1200steps, | |||||
All repeat 999 cycles, part repeat 99 cycles | |||||
Interior material | Stainless Steel Plate ( SUS 304 ) | ||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
System | Balanced & Humidity Control System | ||||
Wiring method | AC 380±10 % 50Hz,3 phase 4 wires +Ground Wires | ||||
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
Company information
Komeg is a well established environmental test chamber company, with over 27 years’ experience in developing, and building a range of specialized instruments. Years’ experience in developing, and building a range of specialized instruments.
These include climatic test chamber, thermal shock test chamber, walk-in test chamber, drive-in test chamber, burn-in rooms, aging test chamber, drying ovens, salt spray test chamber, and medical laboratory test chamber, etc.
Now our products are widely used in some well-known companies,
Such as LG, Huawei, Foxconn, ul nz, Suzuki, Junior, STC in hong kong ,and in many universities in China, such as buaa, PKU, etc.
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt Spray Chamber
Vibration Testing Machine( mechanical and electromagnetic)
FAQ
Q1: What is the Warranty for the accelerated aging machine ?
A1: For the accelerated aging machine, we offer 1 years warranty service. If any quality problems on our side occurred in this period ,we will send you replacement and cover the cost of shipping and component parts.
Q2: What's the delivery term?
A2: Usually, it takes us 20 - 25 days after order confirmation to produce the equipment and a little bit longer for customization service. While if you are in urgent need, we can make special arrangement to speed up the proceedings. Then we start the shipped by sea, by air freight or by air express.
Q3:What’s the payment term?
A3: T/T, L/C and other payment terms could be negotiated.
Q4:Is it ok for customization service?
A4: Yes, the inner chamber dimensions, structure, color, some special parameters can be customized as per your specific request.
