Temperature Range: | RT+10℃~70℃ | Accuracy: | 0.1 ℃ (display Range) |
---|---|---|---|
Resolution:: | ± 0.1 ℃ | Radiation Intensity Resolution: | 0.1W / ㎡ |
Temperature And Humidity Sensor: | Integrated Temperature And Humidity Sensor | LElectrical Control System: | With 7-inch Color LCD Touch Screen Controller |
High Light: | accelerated aging chamber,climatic test chambers |
OEM &ODM are welcome ,more information ,pls kindly contact :anna@komegtech.com
Product Description

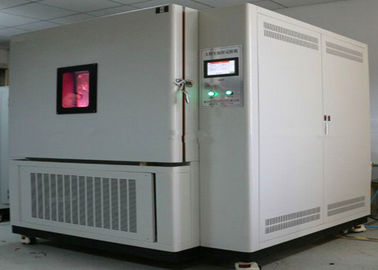

UV Xenon Aging Test Chamber ,The destruction of materials by the sunshine and moisture in nature creates an estimated annual economic loss. The damage caused mainly include fading, yellowing, discoloration, decreased strength, embrittlement, oxidation, decreased brightness, cracking, fading and chalking. The risk of light damage is greatest for products and materials that are exposed to sunlight directly or through glass windows. Long-term exposure to fluorescent, halogen or other light-emitting materials, the same will also be affected by photodegradation.
Main technical specification
Model |
KMH-900 |
External dimension(mm) |
800*800*800mm |
Temperature range |
RT+10℃~70℃ |
Humidity range |
40~90% RH(no water spray during drying) |
Temperature fluctuation |
±0.5℃ |
Light adjustment |
automatic dimming type |
Hub diameter |
750mm, speed: 1r / min |
Blackboard temperature |
63 ~ 100 ℃ ± 3 ℃ |
Other Techinical information
Xenon lamp source |
6KW water-cooled lamp 1, a random spare |
Black panel temp. fluctuation |
±1℃ |
Wavelength |
300 ~ 800nm |
Light/Shower cycle |
continuously adjustable |
Test records |
Automatically saved, USB export print |
Temperature, humidity, irradiance |
other functions are displayed in an interface operation |
Power: |
about 11KW |
Exterior wall |
elegant arc shape, A3 steel electrostatic spray |
Interior wall: |
SUS304 stainless steel plate |
Door |
A reasonable position of the door to set a transparent window (220 × 320mm)to observe changes in the indoor sample (with UV film), the observation window with multi-layer tempered glass |
Low noise |
Multi-wing axial fan strong air supply to avoid any dead ends, the test area can be evenly distributed temperature and humidity. Wind loop air return air design, wind pressure, wind speed are in line with test standards, and can make the door open temperature and humidity fast stabilization time |
Test door and body |
Adopt double high temperature silicone rubber seal |
Refrigeration system |
installed in the studio below, the compressor imported from France, "Taikang" brand |
Heating system |
Heating with far-infrared nickel-chromium alloy heating wire heating speed |
Heating power |
3KW |
Site floor load-bearing capacity |
not less than 600kg / m2 |
Temperature |
5 ℃ ~ 30 ℃ |
