Product Details:
Payment & Shipping Terms:
|
| Temp Range: | +20～+100℃ | Insulation Material: | Rigid Foam +glass Fiber |
|---|---|---|---|
| Interior Material: | Stainless Steel Plate(SUS 304) | Air-change Rate: | 100～200 Times/hr , Adjustable |
| Power: | AC 380±10%50Hz ,3 Phase 4 Wires +Ground Wires | Controller: | LCD Touch Panel Controller |
| High Light: | accelerated aging chamber,uv aging test chamber |
||

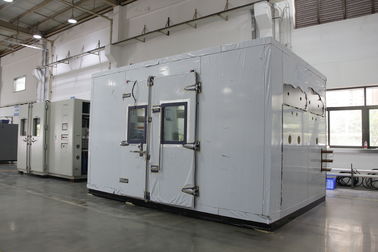

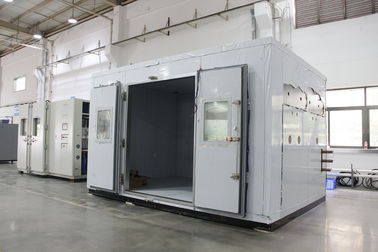

Large-scale double open door aging test chamber for electronic products
Description
Burn in test room is a common device used in all kinds of aging tests in electronic, computer and
communicationindustries. Aging Room is normally composed of the enclosure structure, air duct system,
control system, indoor test frame and other components.
Applicationg
Suitable for all kinds of electronic products,expecially for products with heating characteristics
Product and loading area should be separated
Large-scale production
Specifications
| Model | KMHW-4 |
| Volume(m³) | 9CBM |
| Interior Dimensions | W2100 x H2100 x D2050mm |
| Exterior Dimensions | W3250 x H2350 x D2250mm |
| Safety Devices(standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection |
| Standard accessories | Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator |
| Control System | Balanced Temperature & Humidity Control System |
| Refrigeration system | Water Cooled Semi-hermetic compressor, single stage or cascade refrigeration system, CFC free refrigerant ( HFC-507 and HFC-23 ) |
| Controller | Panel: 7-inch LCD Touch panel, Chinese or English display selectable Operation model : Program or fix point running Memory capacity:120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles |
| Temp. range | Maximum: 80 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC |
| Humidity Range | 10%, 20%, 30% ~ 95% |
| Temp. constancy | ±0.5 ºC |
| Humidity constancy | ±2.5%R.H |
| Temp. uniformity | ±2.0 ºC |
| Humidity uniformity | ±5.0%R.H |
FAQ
Q1: What is the Warranty?
Generally, 12 months warranty. But for drying oven, the warranty is 18 months. If any quality problems on
our side occured in this period ,we will take on the cost of shipping and component parts.
Q2: What's the delivery term?
Usually, 20 - 25 days after order confirmation. It will be took more time for customization service. If you are
in urgent need, we can make special arrangement for you. It could be shipped by sea, by air or by air
express.
Q3: What’s the payment term?
Accept different kinds of payment terms, such T/T, L/C, Paypal.
Q4: Is it ok for customization service?
Of course you can. We are manufacturer of environmental test equipment. Once with your detailed
requests, we could make environmental test chamber accordingly.

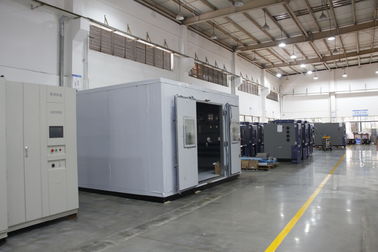

Prouduct Display
Packing and Shipment:
