Product Details:
Payment & Shipping Terms:
|
| Power Supply: | 380V, Three Phase, 50Hz | Saturated Barrel Temperature: | +47 ° C -63 ° C |
|---|---|---|---|
| Inner Material: | 8mm A Grade PVC Corrosion-resistant Plate | Cover Material: | The Cover Is Made Of Transparent And Impact Resistant Sheet |
| Temperature Sensor: | Anti-corrosion Platinum Resistance PT100Ω / MV | Package: | Plywood |
| High Light: | salt spray test equipment,salt spray testing machine |
||

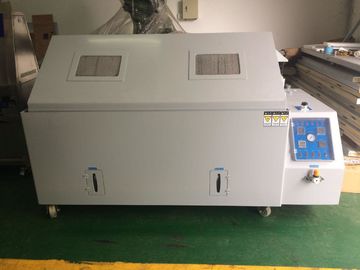

Corrosion resistance anti-aging high temperature resistance also salt spray corrosion test
chamber
Description
Salt spray test machine is specifically designed for materials surface corrosion resistance testing, these
materials are treated in kinds of paint, coating, plating, antirust oil treated, etc.; widely used in metal,
electro, electronic, chemical, automotive, aviation, aerospace, telecommunications and other industries.
Carrying out corrosion testing for the products of materials and coating, so as to analyze and evaluate
the samples’ performance under specific environmental conditions of marine environment.
Specifications
| Chamber Body | |
| Test space size | W 1600 × D 1000 × H 500 mm |
| Overall size | W 2250 × D 1200 × H 1250 mm |
| Power | |
| Power supply | 380V, three phase, 50Hz |
| Weight | |
| Net Weight | Approx. 200kg |
| Work environment | |
|
Using the environment temperature humidity |
10℃～35℃; ≤85% |
|
Using water quality |
Test solution deployment - distilled water (pure water) (the PH value should be between 6.5 to 7.2) Other water - tap water |
|
Air pressure setting |
Spray pressure - 1.0 ± 0.1kgf / cm2 Air compressor pressure regulator filter - 2.0 ~ 2.5kgf / cm |
|
Installation beside the windows, convenient for exhaust and drain |
|
| Wearing part | Salt spray nozzle, meter measuring cylinder |
|
Consumables |
Sodium chloride, purified water and tap water |
| Technical parameters | |
|
Laboratory temperature range: +35 ℃ ~ +50 ℃ Saturated barrel temperature: +47 ° C -63 ° C Salt water temperature: +35 ℃ ~ +55 ℃ (match the laboratory temperature) Temperature uniformity: ≤ ±2 ℃ Temperature fluctuation: ≤ ±0.5 ℃ Test time: 0-999 H, M adjustable Settlement: 1-2ml / 80cm2 / h Spray mode: cycle, continuous, program Defogging: exhaust mist by air extrusion Sample holder: meets the standards |
|
| Material | |
|

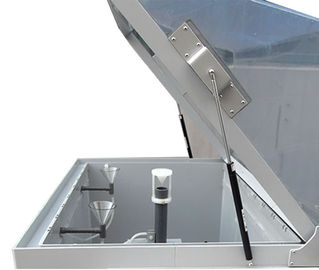

Chamber housing material: A-level 8mm PVC enhanced rigid plastic plate, the surface smooth, and anti-aging, corrosion-resistant; Inner material: 8mm A grade PVC corrosion-resistant plate. Cover material: The cover is made of transparent and impact resistant sheet, which is easy to observe when the test sample is tested. The cover and the box are sealed with water, so as to prevent leakage. Heating: inner sink heating mode, heating up fast, uniform temperature distribution. Three-dimensional observation reagent replenishment slot, you can always observe the consumption of salt water. Well-designed water storage system for water to ensure the smooth and reliable operation. Pressure tank made of SUS304 # stainless steel, the appearance of the electrolytic treatment, excellent corrosion resistance. |
|
Instruction:
(1) Spray tower
(2) Funnel cup
(3) Touch screen controller
(4) Regulator
(5) Pressure gauge
(6) Metering cylinder
Prouduct Display
Controller(figure 2)
Packing and Shipment:
Company information
KOMEG offers the newest and most modern salt fog testing chambers for your testing requirements.
KOMEG salt spray test chambers are offered in 60 Liter, 270 Liter, 800 Liter and 960 Liter models and
are cost effective solutions to acceleratedcorrosion testing of samples in salt fog. Models have an
uncomplicated design that has optimized the openarea to maximize the number of test coupons while
providing headroom for testing large and bulky objects
