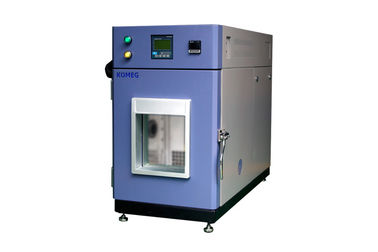

Mini Benchtop Type Climatic Test Chamber for Environmental Adaptability and Reliability Test

Mini Benchtop Type Climatic Test Chamber for Environmental Adaptability and Reliability Test
Mini Benchtop Type Climatic Test Chamber for Environmental Adaptability and Reliability Test Mini Benchtop Type Climatic Test Chamber for Environmental Adaptability and Reliability Test

Large Image :  Mini Benchtop Type Climatic Test Chamber for Environmental Adaptability and Reliability Test

Product Details:
Place of Origin: China Mainland
Brand Name: KOMEG
Certification: CE,ISO9001
Model Number: KMH-36L
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: 6000~20000 USD per set
Packaging Details: Strong wooden case for Cooling Chamber,High-Low Temperature Test Chamber,Temperature And Humidity Test Chamber
Delivery Time: 20 days after getting the payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Temperature Range: -70 ℃ ~ +180 ℃ Temp Deviation: ≦±2.0°C
Temp Constancy: ±0.5°C Temp Uniformity: ±2.0℃
Ramping Rate: -70°C ↑ +100°C Within 60 Min (no-load;ambient Temperature Of +25℃) Soaking Rate: -70°C ↑ +100°C Within 60 Min (no-load;ambient Temperature Of +25℃)
Humidity Range: Humidity Range Humidity Deviation: ±2.0%RH
Performance: Air-cooled, Ambient Temperature Of +25℃
High Light:

climatic test chambers

,

Environmental Test Chamber



Mini Platform Type Small Climatic Test Chamber for Environmental Adaptability and Reliability Test



Product Overview



Able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing equipment and test methods for the basic parameters of electric and electronic products under the condition of humidity, low temperature, high temperature, and constant heat.



Application



Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc.



Technical Specification for KMH-36L and KMH-64L





Model KMH-36L(Benchtop) KMH-64 series
64 R 64 L 64 S
Temp. range -40°C ~150°C -20°C ~150°C -40°C ~150°C -70°C ~150°C
Interior size W(mm) 300 400 400 400
H(mm) 400 400 400 400
D(mm) 300 400 400 400
Exterior size W(mm) 460 600 600 600
H(mm) 780 1526 1526 1526
D(mm) 1002 1200 1200 1200
Power(KW)   5.8 5.8 5.8
Weight(KG)   300 300 300





Specification for Other Model



KMH-R series



Model KMH-R series
150R 225R 408R 800R 1000R
Temp. range -20°C ~150°C
Interior size W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 240 280 400 500 580
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -20°C ~+100°C ,within 35 min
Pull down time +20°C ~-20°C , within 45 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles





KMH-L series



Model KMH-L series
150 L 225 L 408 L 800 L 1000 L
Temp. range -40°C ~150°C
Interior size W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 250 300 420 530 600
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -40°C ~+100°C ,within 45 min
Pull down time +20°C ~-40°C , within 60 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles



KMH-S series



Model KMH-S series
150S 225S 408S 800S 1000S
Temp. range -70°C ~150°C
Interior sizel W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 280 330 450 550 650
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -70°C ~+100°C ,within 60 min
Pull down time +20°C ~-70°C , within 80 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles





Chamber Structure

Overall structure and chamber was composed of three parts as below.

Insulation box, separate refrigeration units, and electrical control cabinet.

1.Dimension of the chamber

Interior size: W 300× H 400 × D 300 mm

Exterior size: W 460 × H 780 × D 1022 mm External dimensions excluding protruding parts

2. Insulation box

※ Wall material: high-quality carbon steel with static color spray

※ Inner wall material: SUS304 # matte stainless steel plate

※ Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

3.Door Single door, open on the left, heating wire was installed at the door frames to prevent condensation at low temperatures.
4.Observation window With 1 sets W210×H270mm (width × height) observation window, multi-hollow electric insulation coated glass prevent condensation effectively
5.Lighting device 1 LED lighting device located on observation window
6. Heater High quality nickel - chromium alloy wire electric heater, Contactless control mode (SSR)
7. Humidifier

Water heating with basin

Stainless steel armored heater

Heater control: Contactless control mode (SSR)

Device of water level control and heater anti-dry

8.Water outlet hole Available for drain the condensate water
9. Cable port Φ50mm*1 located on the left of chamber, with rubber stopper and stainless steel cover
10.Sample holder Two layers of sample holder, height is adjustable, Load weight 20kg / layer
11.Mobile Casters Mobile Casters *4 with foot cups
12. Electric control box Total power circuit breaker, over-temperature protection.
13.Water supply system Water pump automatic supply
Air-conditioning system
1.Working mode Mechanical compression refrigeration
2.Refrigeration compressor Hermetic compressor imported from Europe and the United States
3. Evaporator Automatic load capacity adjustment of high performance of fin type, able to use in low temperature and high humidity in a long term and without frost.
4. Cooling Sine wave pattern aluminum finned copper tube air heat exchanger (air-cooled)
5. Refrigerant R404A Environmental friendly high temperature level of refrigerant
6.Other attachment High-precision expansion valve, desiccant, and other components are imported internationally imported brands.
7.Refrigerant flow control Refrigeration system of energy consumption output control by automatic adjustment
8.Refrigeration Technology

※ Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable.

※water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber.



Climatic Chamber Used,Environmental Test Chamber,Temperature Humidity Test Chamber is for testing material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances,Communications, instrumentation, vehicles, plastic products, metal, food, chemical,building materials, medical, aerospaceand other products.



FAQ:



1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?



Yes, we are manufacturer of Temperature And Humidity Test Chamber. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.

If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



2. What’s the delivery term?



At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?



Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine
