Temperature Range: | -60 ~ 60 ℃ | Temp Deviation: | ≦±2.0℃ |
---|---|---|---|
Workspace Volume: | IW 1500 × IH 800 × ID 850 Mm | Exterior Size: | Approx. EW 2000 × EH 1760 × ED 1300 Mm |
Door: | Heating Wire Was Installed At The Door Frames To Prevent Condensation At Low Temperatures. | Humidity Deviation: | ±2.0%RH |
High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |

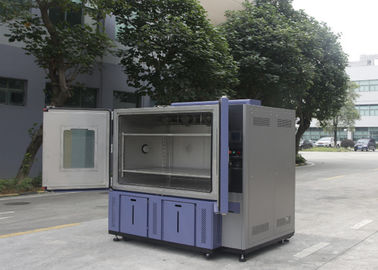

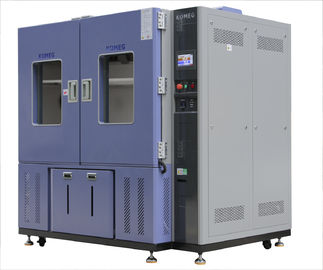

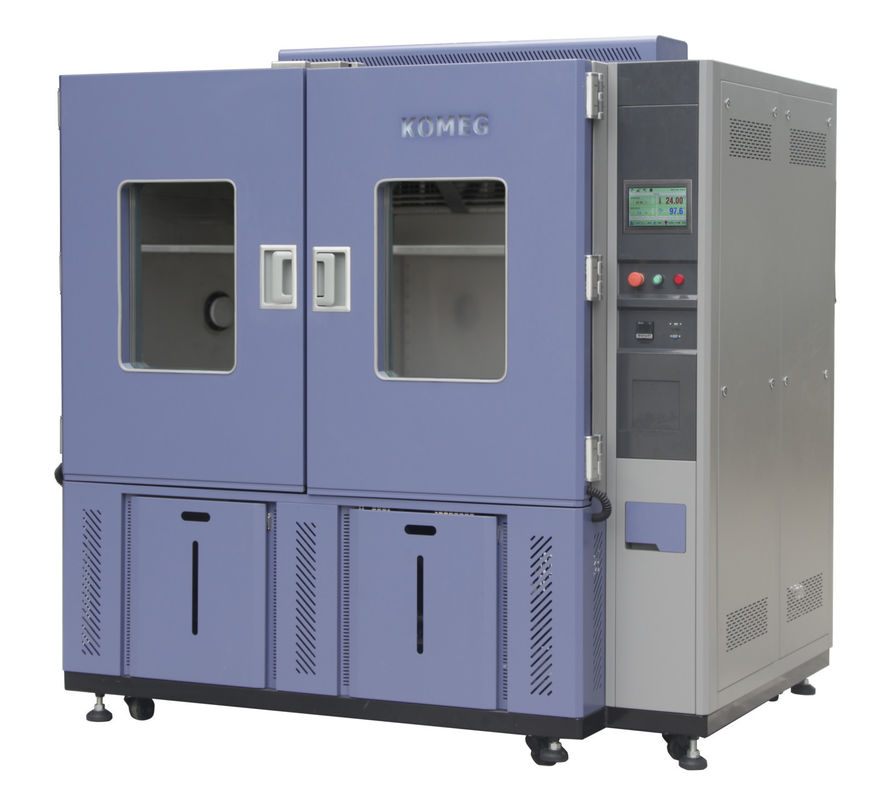

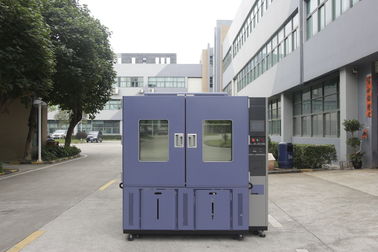

Double door stainless steel 1020L temperature and humidity test chamber
Product Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat.
Application
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research
institution, inspection and quarantine bureau, university etc...
Specifications
Chamber | ||||
Workspace volume | IW 1500 × IH 800 × ID 850 mm | |||
Exterior size | Approx. EW 2000 × EH 1760 × ED 1300 mm | |||
Temperature | ||||
Temperature range | -40 ℃ ~ +150 ℃ | |||
Temp Deviation | ±0.5℃ | |||
Temp Constancy | ±2.0℃ | |||
Temp Uniformity | ±2.0℃ | |||
Ramping and soaking rate |
-40℃↑ +100℃ within 45 mins (no-load, RT Iis +25C) +20℃↓ -40℃ within 70 mins (no-load, RT Iis +25C) |
|||
Humidity | ||||
Humidity range | 20%R.H.~ 98%R.H | |||
Control range |
|
|||
Humidity deviation |
±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) |
|||
Humidity uniformity | 3.0%RH | |||
Humidity deviation | ±2.0%RH | |||
Chamber Structure | ||||
The above specifications is measured in the environment of + 25 ℃, temperature and humidity performance measurement comply with related regulation of IEC60068-3-5 standard; Sensors placed in the air outlet. |
||||
Insulation box |
wall material: high-quality carbon steel with static color spray inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber |
|||
Door | Heating wire was installed at the door frames to prevent condensation at low temperatures. | |||
Observation window | With 1 set of observation window, multi-hollow electric insulation coated glass prevent condensation effectively | |||
Cable port | Φ100mm*1 located on left side with rubber stopper and plastic cover | |||
Lighting device | 11W/AC220V *1 located on observation window | |||
Water outlet hole | Available for drain the condensate water | |||
Sample holder | Two layers of stainless steel sample holder, weight bearing 30kg per layer | |||
Mobile Casters | Mobile Casters *4 with foot cups | |||
Electric control box | Total power circuit breaker, over-temperature protection. | |||
Water supply system | Water pump automatic supply | |||
Environmental test chamber Standard
● GB-2423. 1-89(IEC68-2-1)Test A: Low Temperature Test ● GB-2423. 2-89(IEC68-2-2)Test B: High Temperature Test ● GJB360. 8-87(MIL-STD. 202F) High Temperature Life Test ● GBJl50. 3(MIL-STD-810D) High Temperature Test ● GJBl50. 4(MIL-STD-810D) Low Temperature Test ● GB2423. 3-93(IEC68-2-3)Test Ca: Constant Heat Test ● GB2423. 4-93(IEC68-2—30)Test Db: Damp Heat Alternative Test ● GJBl50. 9-93(MIL-STD-810D) Damp Heat Test |
Product details
Packing and Shipment:
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
