Payment & Shipping Terms:
|Temp Range:||+50℃～250℃||Insulation Materials:||Rigid Polyurethane Foam Insulation Layer + Glass Fiber|
|Temp Fluctuation:||±1℃||Heat Up Rate:||1.0～5.0℃/min(adjustable)|
|Control Precisio:||±0.5%( Full Range)||Mobile Casters:||Mobile Casters *4 (with Foot Cups)|
large industrial ovens,
vacuum drying oven

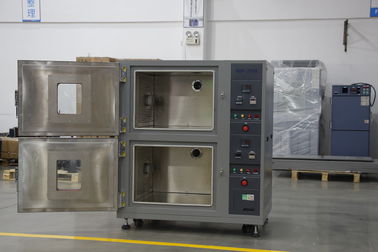

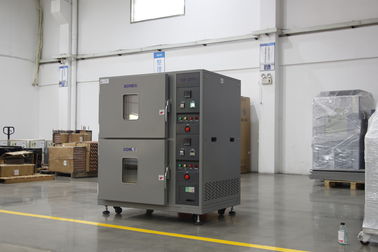

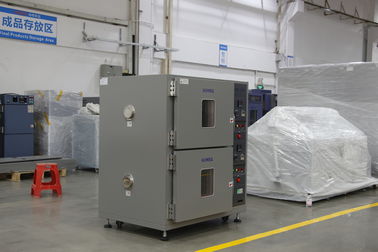

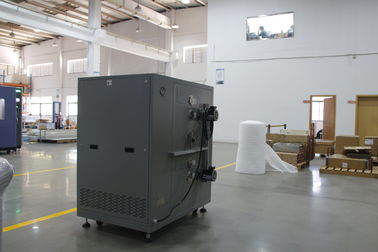

Temp range+50℃～250℃ 210L Industrial hot air circulating drying oven with 7"LCD toch panel
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB518.104.22.168.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat.
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research
institution, inspection and quarantine bureau, university etc..
|Workspace volume||W 20 × H 110 × D100 mm|
|Exterior size||W216 × H 188 × D129 mm|
|Control precision||±0.5%( full range)|
|Heat up rate||1.0～5.0℃/min(adjustable)|
Overall structure and chamber was composed of three parts as below.
Insulation box, separate refrigeration units, and electrical control cabinet.
wall material: high-quality carbon steel with static color spray
inner wall material: SUS304 # matte Stainless steel plate
Insulation materials: Rigid polyurethane foam insulation layer + glass fiber.
|Door||Heating wire was installed at the door frames to prevent condensation at low temperatures.|
|Sample holder||Two layers of stainless steel sample holder,bearing (uniform) 50 kg/layer.|
|Mobile Casters||Mobile Casters *4 (with foot cups)|
|Electric control box||Total power circuit breaker, over-temperature protection.|
● GB-2423．2-89(IEC68-2-2)Test B: High Temperature Test
● GJB360．8-87(MIL-STD．202F) High Temperature Life Test
● GBJl50．3(MIL-STD-810D) High Temperature Test
Packing and Shipment:
Before the purchase, our company will provide customers with detailed product-related information, and
welcome you to visit the company and check the goods.
After the completion of the transaction, our company will be arranged different after-sales service
according to the ease of the goods , and even arrange work engineers on-site service.
Our product warranty is 12 months and we are committed to responding within 48 hours of the problem,
providing a solution.
