8CBM LCD Display Burn-In Aging Test Chamber Reliablity CE, CUL, ISO For Computers

China 8CBM LCD Display Burn-In Aging Test Chamber  Reliablity CE, CUL, ISO For Computers supplier
8CBM LCD Display Burn-In Aging Test Chamber  Reliablity CE, CUL, ISO For Computers supplier 8CBM LCD Display Burn-In Aging Test Chamber  Reliablity CE, CUL, ISO For Computers supplier

Large Image :  8CBM LCD Display Burn-In Aging Test Chamber Reliablity CE, CUL, ISO For Computers

Product Details:

Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: KMHW-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs/day
Contact Now
Detailed Product Description
Temp. Range: RT ~RT +65℃ Load: Product Heating Max. 2000 W
Interior Material: SUS 304 Indoor Lighting: Inerior Lighting 2 Style
Compressor: Semi-Hermetic Compressor Cooling Mode: Air Cooled

8CBM LCD Display Burn-In Aging Test Chamber Reliablity CE, CUL, ISO For Computers


Application



The Aging room, also known as burning room, Burn-In Room, is one of the commonly used equipment in



various aging tests, widely used in electronics, computers, communications and other fields. Aging rooms



usually consist of enclosure structures, air duct systems, control systems, and indoor test structures.



Specifications:



1. Temp. range

RT ~RT +65℃



2. Temp. fluctuation

±0.5℃



3. Temp. uniformity

±5.0℃(No load))



4. Load

Product heating max. 2000 w



. Structure and material



1. Interior size

W 2000× H 2050× D 2000 mm (useful space)



2. Exterior size

About W 2450× H 2500 × D 2100 mm (external dimensions without protruding



bulges of the machine)

3. Door

Single door, size W900× H1900mm, with windows ( specific size, please



subject to the final design )

4. Interior material

Color steel plate



5. Exterior material

Color steel plate



6. Insulation Material

50mm high density rigid PU foam ( total for 5 pcs of insulation board, the



ground without insulation board)

7. Heating

Explosion-proof fin heat sink heater



8. Air supply system

Forced circulation air supply and air - conditioning box supply



9. Indoor lighting

Interior lighting 2 style



10. Cable port

Φ50mm*2 located on both sides (each*1) with rubber stopper and plastic



cover



. Control System



1. Temperature controller



South Korea imported thermostat ST-570



* Achieve high accuracy (0.1%), high performance



* Support for multiple input (T / C, RTD, DCV)



* Multi-output and simultaneous output (Max 4 points)



* The parameters of the operation is simple, available text settings



* Supports Overshoot function



* Alarm output 1 point



* Auxiliary output status of the operation screen display



* Interval input adjustment function (Max 4 Zone)



* To achieve the control of heating, cooling function



* PID auto adjustment function (AT Gain)



* Support for multiple communication protocols (Modbus, etc.)



* Achieve high quality, high reliability (CE, CUL, ISO, etc.)



Features



1. Accurate temperature control and high accuracy. Due to the unique air duct system design and



    electronic control system, the temperature uniformity of the entire room can be maintained, which is


   higher than similar products.





2. The room setting range is wide and continuously adjustable. In the range of room temperature ~ 70 °C



   can be set arbitrarily. If the customer specifically requests, higher temperature products can be



   designed.





3. Multi-point temperature scroll display in the room, monitoring is accurate and clear.



4. The system protection function is complete, and it can ensure long-term stability and trouble-free



    operation.



5. Beautiful appearance, convenient construction, short construction period.

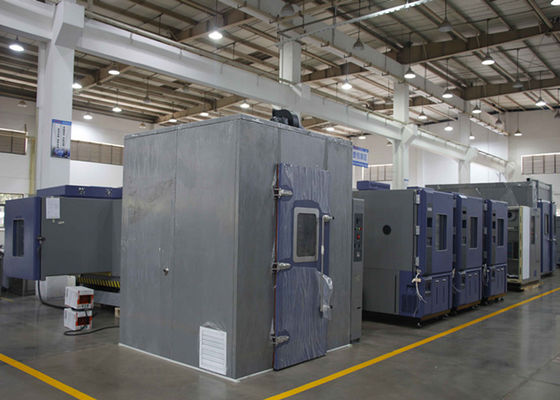

Photos show

8CBM LCD Display Burn-In Aging Test Chamber  Reliablity CE, CUL, ISO For Computers
