225L SU304 Temperature Humidity Climatic Test Chamber For Electronical Appliance

China 225L  SU304 Temperature Humidity Climatic Test Chamber For Electronical Appliance supplier
225L  SU304 Temperature Humidity Climatic Test Chamber For Electronical Appliance supplier 225L  SU304 Temperature Humidity Climatic Test Chamber For Electronical Appliance supplier 225L  SU304 Temperature Humidity Climatic Test Chamber For Electronical Appliance supplier 225L  SU304 Temperature Humidity Climatic Test Chamber For Electronical Appliance supplier

Large Image :  225L SU304 Temperature Humidity Climatic Test Chamber For Electronical Appliance

Product Details:

Place of Origin: China
Brand Name: Komeg
Certification: CE approval
Model Number: KMH-225

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: rigid poly foam and wooden box
Delivery Time: 35 day after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs /day
Contact Now
Detailed Product Description
Temp Range: -20℃ ~ +150℃ Temp Deviation: ≦ ± 2.0℃
Pressure Range: Normal Pressure ~1k Pa Interior Material: Stainless Steel
Exterior Material: Baked Painting Steel Heat Up Time: -20℃ ~ +100℃ Within 35 Min

225L SU304 Temperature Humidity Climatic Test Chamber For Electronical Appliance



Application



The product is suitable for inspection. Electrical and electronic products, components, parts and materials



are resistant to moisture under different conditions of temperature and humidity. They can also be used



as suitability tests for storage, transportation and use in high and low temperature environments.





Standards Implement and Met



● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test



● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test



● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test



● GJBl50.3-2009(MIL-STD-810D) High Temperature Test



● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test



● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test



● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test



● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test





Main technical specification

Temp. range

 KMH225-R :-20℃ ~ +150℃



KMH225-L :-40℃ ~ +150℃



KMH225-S :-70℃ ~ +150℃



(Can be make as your requirements)



Temp. deviation

≤±2.0℃



Temp. fluctuation

±0.5℃



Temp. uniformity

≦2.0℃



Heating and cooling rate

Heating up rate: -40℃↑ +100℃ about 45min (no-load, ambient temperature +25℃)



Cooling rate: 20 ℃to -40℃about 60min (no-load, ambient temperature +25℃)



Chamber size

Workspace volume: W 600 × H 400 × D 460 mm



Exterior size: W 800 × H 1635 × D 1485mm

Humidity uniformity

3.0%RH (no-load)



Humidity fluctuation

±2.0%RH



Humidity deviation

±3.0%RH(>75%RH)



±5.0%RH(≤75%RH)

Sensor

PT-l00





Other specification



Control system

LED display



Accuracy range

Setting Accuracy: Temperature ±0.1°C, Indicating Accuracy: Temperature ±0.1°C,



Resolution: ±0.1°C

Temperature Sensor

Platinum resistor PT100Ω/MV



Heating system

Fully self-contained system, Nichrome electric heating heater



Cooling system

French Schneider



Cycling system  Temperature and low noise air conditioning motor. Multi-leaf centrifugal wind wheel

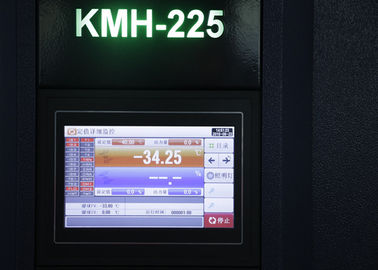

Operation interface

There are digital display, real-time curve, operation selection, timing setting, program

setting, alarm, parameter setting, etc.

Cable port



Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover

Curve recording function

In the machine power off,insert a USB flash drive at any time to export or upload data,



and you can view the exported file on the computer or convert it to EXCEL format



by using the random gift software.



The instrument is equipped with a USB port for direct preview and printing of the



mini-printer through the port (optional).



Grounding

Grounding resistance≦4Ω

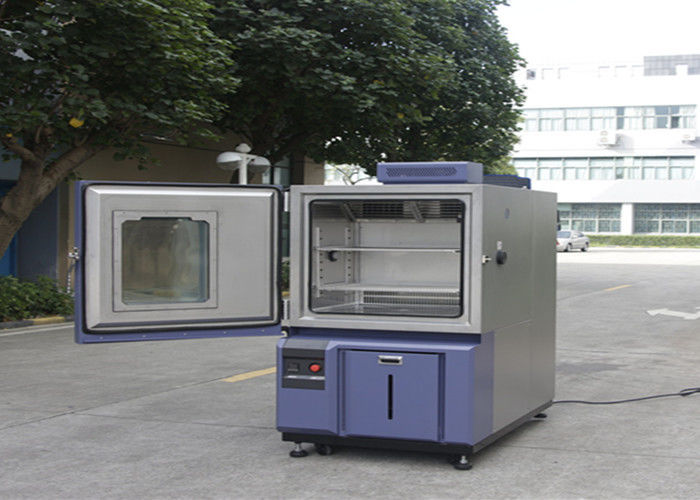

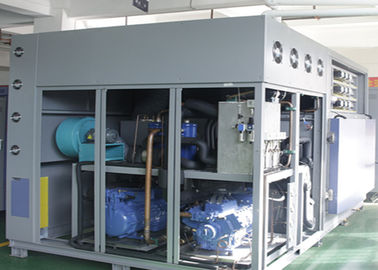

Photos show

225L  SU304 Temperature Humidity Climatic Test Chamber For Electronical Appliance



225L  SU304 Temperature Humidity Climatic Test Chamber For Electronical Appliance
