7 Inch Programmable LCD Touch Screen Controller Single Door Sand And Dust Chamber

China 7 Inch Programmable LCD Touch Screen Controller Single Door Sand And Dust Chamber supplier
7 Inch Programmable LCD Touch Screen Controller Single Door Sand And Dust Chamber supplier 7 Inch Programmable LCD Touch Screen Controller Single Door Sand And Dust Chamber supplier 7 Inch Programmable LCD Touch Screen Controller Single Door Sand And Dust Chamber supplier 7 Inch Programmable LCD Touch Screen Controller Single Door Sand And Dust Chamber supplier

Large Image :  7 Inch Programmable LCD Touch Screen Controller Single Door Sand And Dust Chamber

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE, ISO9001
Model Number: KM-SC1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1, 000~1, 500 SETS / YEAR
Contact Now
Detailed Product Description
Interior Dimension: W1000×D1000×H1000 Mm Exterior Dimension: About W1450×H1900×D1100 Mm
Humidity Range: <65%R.H Airflow Velocity: 2-10M/S
Door: Single Door Dustproof Socket: Box With 220V Power Outlet

Application:



This machine adopts the PLC programmable controller as the core control part. The performance is



stable and reliable. With touch screen and friendly screen, you can control, set, display test time (A. Dust



time: blowing, stopping, blowing), B. Preset test time can be controlled, etc.). Effectively guarantee the test



according to standard operation.



Programmable controllers individually or collectively control the blower fan, dust vibration and total test



time, No fuse protection switch, over temperature, overload protection, etc.





specifications:



Dimension


Volume 1 cubic
Interior dimension W1000×D1000×H1000 mm
Exterior dimension About W1450×H1900×D1100 mm

Technical specification


Test environmental conditions

Ambient temperature +25℃. Relative humidity≤85%

Atmospheric pressure:86~106kpa

Temperature range Room temperature
Humidity range <65%R.H
Dust concentration (dust) 2~4kg/m3
Airflow velocity 2-10M/S
Blowing dust time 1s~99h adjustable
Vibrating time 1s~99h adjustable
Dust for experiment

The talcum power can pass through a aquare-meshed sleve 75µm the nominal wire diameter is 50µm

Dust 2-4Kg/m3

Noise A sound level ≤ 75dB (A) (1m away from the ground in front of the ground height 1.2m, free space)

Structure and composition



Structure


Interior material 304 Stainless steel
Exterior material Double-sided galvanized steel, the surface spray treatment
Sealing strip Using high-quality silicone rubber seal, good sealing to prevent leakage, has good anti-aging and high temperature characteristics.
Door Single door
Observation window Tempered glass observation window with manual wiper
Lights Inside chamber installed high penetration indoor explosion-proof lights
Cable port With 1* Φ100 cable port on the left side of the chamber
Dustproof socket Box with 220V power outlet

Dust system


Blowing dust fan Domestic brand-name high-power vortex fan
Blowing dust The upper part of the chamber is equipped with sand dust outlet. The sand and dust in the dust funnel are blown into the laboratory through the dust blower to carry out sand and dust test.
Sample housing evacuated Equipped with a vacuum pump for evacuating the sample housing
Dust collection The inner box adopts a conical bottom which gathers in the vicinity of the blow hole of the inner box when the dust falls, and equipped with a periodic vibrator, dust outlet, shut down to remove dust.
System Configuration



Equipped with a pressure gauge, vacuum pump, air filtration, pressure regulator triple pieces, connecting pipe

Dust filtration Precision dust filters, filter bag. Balance the pressure inside and outside the box

Dust drying system


Temperature control equipment Heating ring, before the nozzle of dust
Control method Heater control: non-contact cycle pulse width modulation, SSR (solid state relay)

Control Panel

Siemens true color touch screen + Siemens PLC control

Remote control system (optional)

Controller remote control software is available. The customer installs by themself. (RS485 interface must be on the computer, the company can provide the RS485 interface, PCI card) or provide the computer installation and commissioning by the company. (Optional)

Vacuum pumping system


Vacuum pump Exhaust flow 3000L / h, the ultimate pressure of 2pa (vacuum pump parameters)
Pressure Sensor High-precision voltage sensor -100 ~ 0KPa
Electronic flowmeter High - precision gas flow sensor

Sample holder

Bearing more than 450KG

Standard configuration

Sample rack: 1 set

Test hole: Φ100 test hole 1,

Lighting: 1

Power cord hole

On the back of power distribution cabinet

Fixed foot

6# Channel steel chassis + high-strength casters

Electrical control system



Controller


Controller 7 inch Programmable LCD touch screen controller, standby constant (manual) parameter settings and program settings. Real-time display the vacuum pressure, flow.
Program execution With four output points at the same time complete the four different time program execution
Time period control Each output point of the programmable controller has two time period control (namely start time and stop time)
Time control mode Separate or collective time control of the blower fan, dust vibration and total test time.
Test time Maximum 9999
Vacuum control Through the pressure sensor, flow sensor controlled pressure





Product Main Features



1. Chamber exterior material: high-quality steel plate spray treatment. Interior material: stainless steel



plate. Double tempered glass with observation window (with wiper). It is easy to observe the status of the



test sample in the test chamber. The bottom of the chamber use high quality fixed casters. Replacement



dust device at the bottom of the chamber



2. Blowing dust fan time automatically alternately, vibration and stop vibration time automatically



alternately.

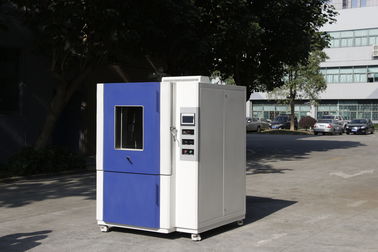

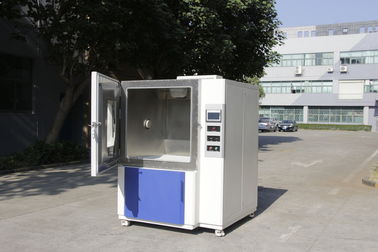

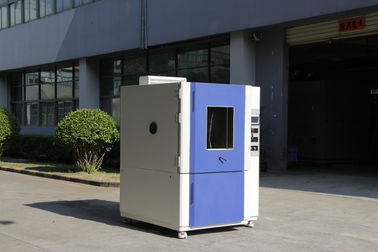

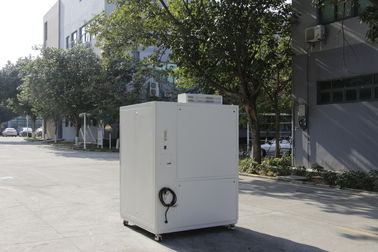

Product details



7 Inch Programmable LCD Touch Screen Controller Single Door Sand And Dust Chamber



7 Inch Programmable LCD Touch Screen Controller Single Door Sand And Dust Chamber





After-sales Service and Training



Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty



period, the user will be charged properly. Irregular examination and life-long service are available;



Note: If needed, provide 2 operators for on-site installation and training
