Different size Programmable Temperature Humidity Chamber Machine With PID Control

Certification
Good quality Temperature Humidity Chamber for sales
Good quality Temperature Humidity Chamber for sales
Fast delivery and quality products.

—— Gozia

Friendly and pleasant cooperator, "I like the factory, I like the design, I like the workstyle"

—— Wagner

The design and quality impress me a lot.

—— Mr Yee

" A trustworthy supplier of climatic test chamber".

—— Denis

I'm Online Chat Now

Different size Programmable Temperature Humidity Chamber Machine With PID Control

China Different size Programmable Temperature Humidity Chamber Machine With PID Control supplier
Different size Programmable Temperature Humidity Chamber Machine With PID Control supplier Different size Programmable Temperature Humidity Chamber Machine With PID Control supplier Different size Programmable Temperature Humidity Chamber Machine With PID Control supplier Different size Programmable Temperature Humidity Chamber Machine With PID Control supplier

Large Image :  Different size Programmable Temperature Humidity Chamber Machine With PID Control

Product Details:

Place of Origin: China
Brand Name: Komeg
Certification: CE approval
Model Number: KMH64R

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: rigid poly foam and wooden box
Delivery Time: 35 day after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs /day
Contact Now
Detailed Product Description
Temp Range: -20℃ ~ +150℃ Temp Deviation: ≦ ± 2.0℃
Temp Fluctuation: ±0.5℃ Chamber Size Exterior: W 600 × H 1550 × D 1220 Mm
Inner Size: W 400 × H 400 × D 400 Mm Humidity Range: 20%R.H~98%R.H





Different size Programmable Temperature Humidity Test Chamber/Machine With PID Control





Product Overview



Able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability



test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing



equipment and test methods for the basic parameters of electric and electronic products under the condition



of humidity, low temperature, high temperature, and constant heat.



Application



It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and



materials under the conditions of high and low temperature and high temperature and humidity. For quality



and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and



other products, parts and materials.



. Features



● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test



● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test



● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test



● GJBl50.3-2009(MIL-STD-810D) High Temperature Test



● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test



● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test



● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test



● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test

1



Main technical specification



Model KMH-
36 64 80 100 150 225 408 800 1000 1300
Working Chamber Volume (litter 36L 64L 80L 100L 150L 225L 408L 800L 1000L 1300L
Interior size (cm) 30 40 50 40 60 70 70 100 100 100
40 40 50 50 40 70 75 100 100 100
30 40 40 50 46 48 80 80 100 130
Temperature range ,R: -20ºC~ +150 ℃ L :-40ºC~ +150 ℃ S: -70ºC~ +150 ℃ (can be make as your requirements)
Temp fluctation ±0.5 ºC
Temp uniformity ±3.0 ºC
Heating and cooling rate , R :-20℃ ↑ +100℃ whithin 35min L: -40℃ ↑ +100℃ whithin 45min S: -70℃ ↑ +100℃ whithin 60min
, +20℃ ↓ -20℃ within 45min +20℃ ↓ -40℃ within 60min +20℃ ↓ -70℃ within 80min
Humidity range 20~98%RH
Humidity deviation ±3.0%RH(>75%RH)
±5.0%RH(≤75%RH)
Humidity uniformity ±3.0%RH(no-load)
Humidity deviation ±2%RH

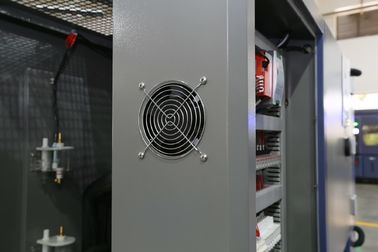

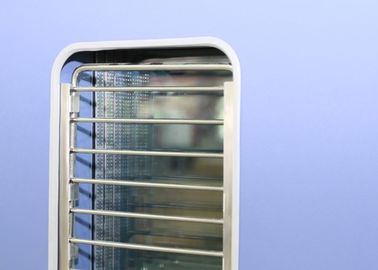

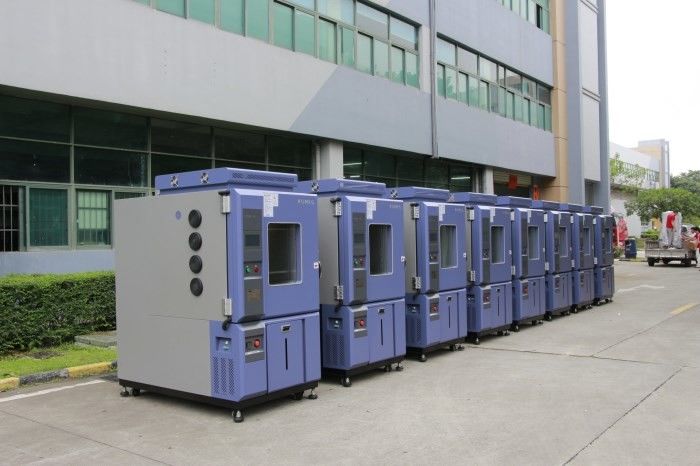

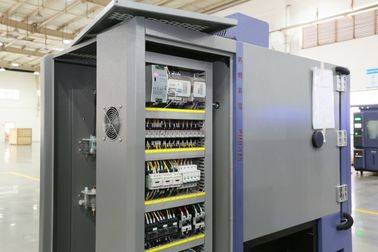

Photos show



Different size Programmable Temperature Humidity Chamber Machine With PID Control
