SUS304 # Temperature Humidity Test Chamber , Benchtop Humidity Chamber

China SUS304 # Temperature Humidity Test Chamber , Benchtop Humidity Chamber supplier
SUS304 # Temperature Humidity Test Chamber , Benchtop Humidity Chamber supplier SUS304 # Temperature Humidity Test Chamber , Benchtop Humidity Chamber supplier SUS304 # Temperature Humidity Test Chamber , Benchtop Humidity Chamber supplier SUS304 # Temperature Humidity Test Chamber , Benchtop Humidity Chamber supplier

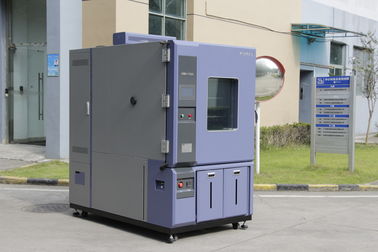

Large Image :  SUS304 # Temperature Humidity Test Chamber , Benchtop Humidity Chamber

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE, ISO9001
Model Number: KMH-1000L

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1, 000~1, 500 SETS / YEAR
Contact Now
Detailed Product Description
Temperature Range: -70 ℃ ~ +150 ℃ Temp Deviation: ≦±2.0℃
Workspace Volume: IW 1000 × IH 1000 × ID 1000 Mm Exterior Size: EW 1200 × EH 2035 × ED 2050 Mm
Door: Single Door, Left Open Inner Wall Material: SUS304 # Matte Stainless Steel Plate

Temperature range -70 ℃ ~ +150 ℃ 1000L single door temperature and humidity test chamber


Product Overview

Able to accurately simulate a wide range of complicated natural environments, and is suitable for

reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental

testing equipment and test methods for the basic parameters of electric and electronic products under

the condition of humidity, low temperature, high temperature, and constant heat.


Application

Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical

appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research

institution, inspection and quarantine bureau, university etc..




Specifications


Chamber
Workspace volumeIW 1000 × IH 1000 × ID 1000 mm
Exterior sizeEW 1200 × EH 2035 × ED 2050 mm
Temperature
Temperature range-70 ℃ ~ +150 ℃
Temp Deviation≦±2.0℃
Temp Constancy±0.5℃
Temp Uniformity≦2.0℃
Ramping and soaking rate

-70℃↑ +100℃ within 60 mins (no-load)
+20℃↓ -70℃ within 80 mins (no-load)

 Humidity
 Humidity range20%R.H.~98%R.H
Control range



Humidity deviation

±3.0%RH(>75%RH)
±5.0%RH(≤75%RH)

Humidity uniformity±3.0%RH(no-load)
Humidity constancy±2.0%RH
Temperature and humidity performance measurement comply with related regulation of IEC60068-3-5 standard; Sensors placed in the air outlet.
. Chamber Structure

Overall structure and chamber was composed of three parts as below.
Insulation box, separate refrigeration units, and electrical control cabinet.

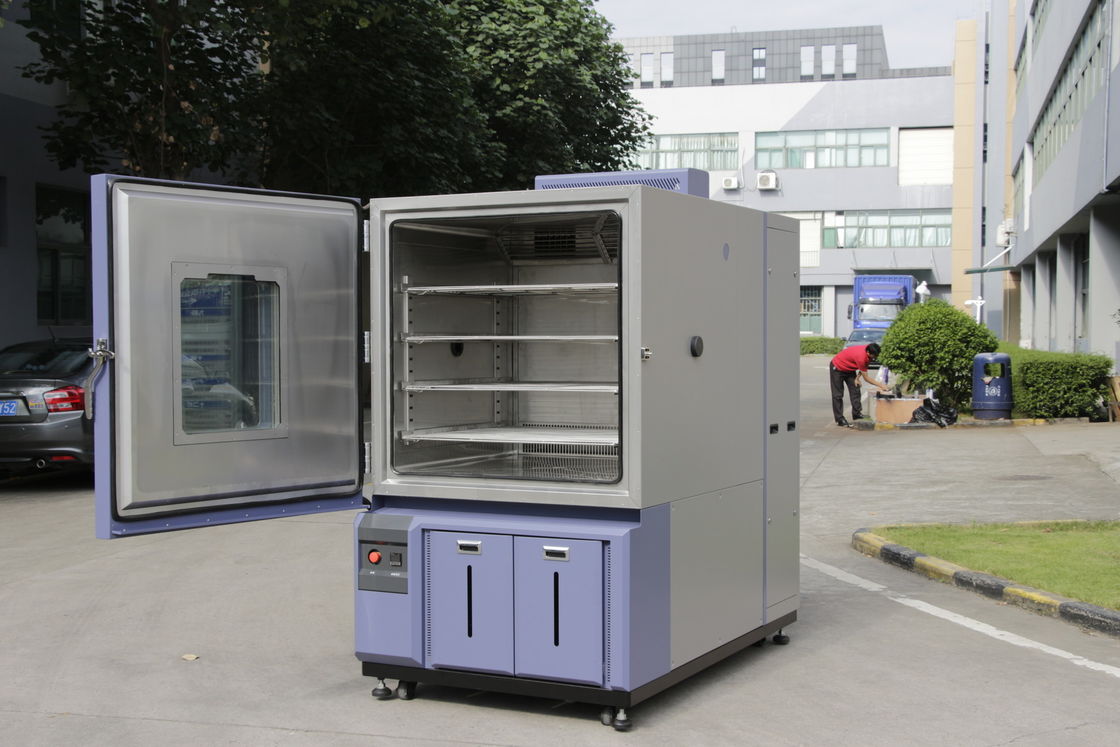

Insulation box

※ wall material: high-quality carbon steel with static color spray
※ inner wall material: SUS304 # matte stainless steel plate
※ Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

DoorSingle door, left open,Heating wire was installed at the door frames to prevent condensation at low temperatures.
Observation windowWith 1 set 460 × 560mm (width × height) observation window, multi-hollow electric insulation coated glass prevent condensation effectively
Cable portΦ50mm*2 located on both sides (each*1) with rubber stopper and plastic cover
Lighting device11W/AC220V *1 located on observation window
Heating

Quality nickel-chromium alloy wire electric heaters,
Non-contact control mode (SRR).

Humidifying

Steam heating and humidification method;
Stainless steel sheathed heater;
Heater control: contactless control (SSR);
Water level control device, heater anti-dry device.

Water outlet holeAvailable for drain the condensate water
Sample holderTwo layers of stainless steel sample holder.Layer height adjustable, Bearing weight 30kg/ layer
Mobile CastersMobile Casters *4 with foot cups
Electric control boxTotal power circuit breaker, over-temperature protection.
Water supply systemWater pump automatic supply


Environmental test chamber Standard

● GB-2423.1-89(IEC68-2-1)Test A:Low Temperature Test

● GB-2423.2-89(IEC68-2-2)Test B:High Temperature Test

● GJB360.8-87(MIL-STD.202F) High Temperature Life Test

● GBJl50.3(MIL-STD-810D) High Temperature Test

● GJBl50.4(MIL-STD-810D) Low Temperature Test

● GB2423.3-93(IEC68-2-3)Test Ca:Constant Heat Test

● GB2423.4-93(IEC68-2—30)Test Db:Damp Heat Alternative Test

● GJBl50.9-93(MIL-STD-810D) Damp Heat Test

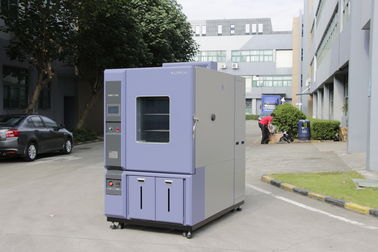

Product details

 SUS304 # Temperature Humidity Test Chamber , Benchtop Humidity Chamber


Packing and Shipment:


(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

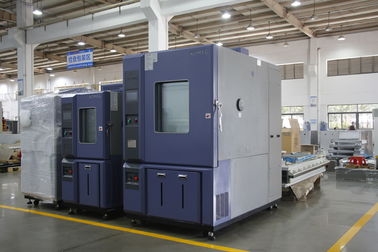

SUS304 # Temperature Humidity Test Chamber , Benchtop Humidity Chamber


After-sales Service and Training

Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty

period, the user will be charged properly. Irregular examination and life-long service are available;

Note: If needed, provide 2 operators for on-site installation and training
