Product Details:
Payment & Shipping Terms:
|
| Temp Range: | -50℃～+150℃ | Temp. Unifomity: | ±2.0℃ |
|---|---|---|---|
| Humidity Range: | 10%R.H.～98%R.H | Humidity Uniformity: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） |
| Power: | AC 3ψ4W 380V 50Hz（R.S.T.N Add Ground Wire)( Voltage Fluctuation≦±10%) | Interior Material: | SUS304# |
| High Light: | accelerated aging chamber,climatic test chambers |
||

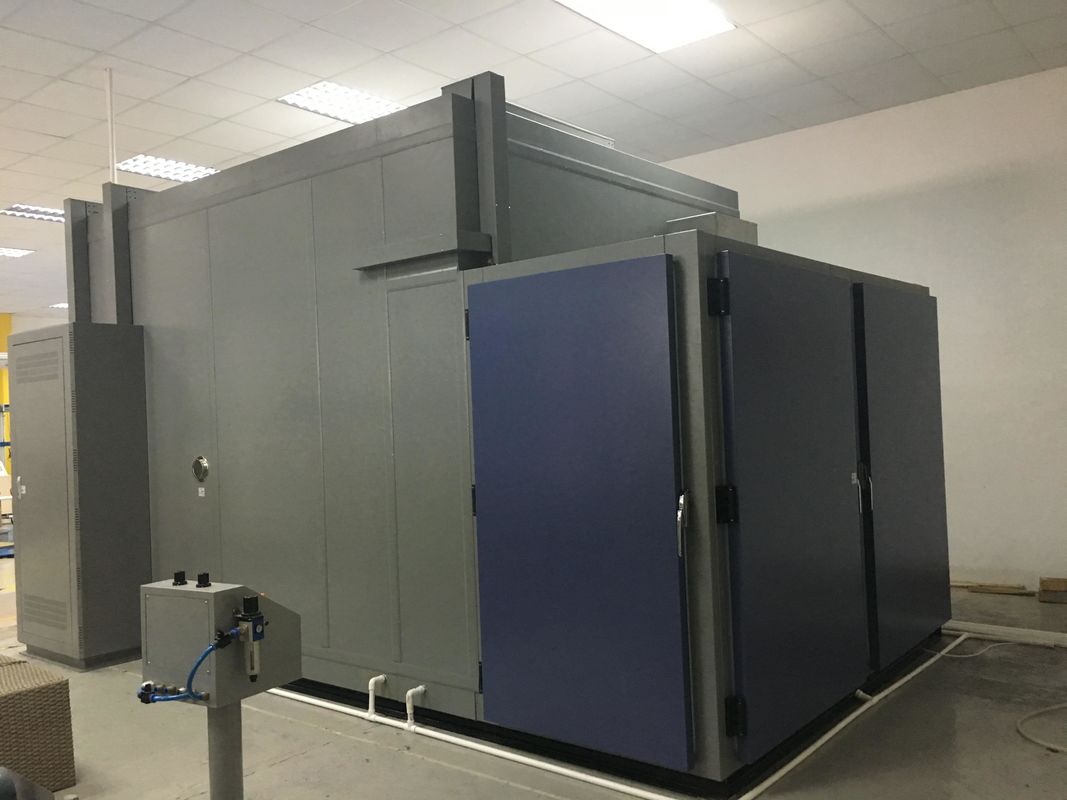

19m³ double door walk-in chamber and humidity chamber with Open φ100mm hole in the left side
Description
Able to temperature control accurately and wide range of control, and is suitable for reliability test in
industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing equipment
and test methods for the basic parameters of electric and electronic products under the condition of
humidity, low temperature, high temperature, and constant heat.
Applicationg
It is suitable for quality and reliability testing of products, parts and materials under high
temperature conditions for electrical, electronic, mechanical and other products, parts and materials.
Specifications
| Model | 4 | 6 | 8 | 13 | 17 | 21 | |
| Interrior material (cm) | W | 210 | 300 | 390 | 300 | 390 | 480 |
| H | 210 | 210 | 210 | 210 | 210 | 210 | |
| D | 205 | 205 | 205 | 430 | 430 | 430 | |
| Volume(M3) | 9 | 12.9 | 16.8 | 16.8 | 35.2 | 13.3 | |
| Exterrior dimensions | W | 325 | 416 | 505 | 505 | 505 | 595 |
| H | 235 | 235 | 235 | 235 | 235 | 235 | |
| D | 225 | 225 | 225 | 225 | 450 | 450 | |
| System | Balanced & Humidity Control Systerm | ||||||
| Temp. range | Maximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40ºC,-30ºC,-20ºC,-10ºC,0ºC | ||||||
| Humidity Range | 10%,20%,30%~95% | ||||||
| Temp. constancy | ±0.5ºC | ||||||
| Humidity constancy | ±2.5%R.H | ||||||
| Temp. uniformity | ±2.0ºC | ||||||
| Humidity uniformity | ±5.0%R.H | ||||||
| Heat up time | +20ºC~+80ºC ,Within 60 min | ||||||
| Pull down time | +20ºC~-55ºC -40ºC-20ºC-10ºC ,Within 120 or 90 or 60 or 45 min | ||||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane foam | ||||||
| Door size (mm) | Single wing:W800*H1800;Double wing:W1600*H1800 | ||||||
| Refrigeration system | Semi-hermetic compressor, single stage or cascade refrigeration system,CFC free refrigerant(HFC-507 and HFC-23) | ||||||
| Controllor | Touch controller, Chinese menu, Operation mode: setting/program | ||||||
| Safety Devices | No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection | ||||||
| Standard accessories | Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator | ||||||
| Ambient Temp. | +5ºC~+35ºC | ||||||
| Power | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | ||||||
| Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available |
|||||||
Standards Implemented and met
GB-2423. 1-89(IEC68-2-1) Test A: Low Temperature Test
GB-2423. 2-89(IEC68-2-2) Test B: High Temperature Test
GJB360. 8-87(MIL-STD．202F) High Temperature Operating Life Test
GBJl50. 3(MIL-STD-810D) High Temperature Test
GJBl50. 4(MIL-STD-810D) Low Temperature Test
GB2423. 3-93(IEC68-2-3) Test Ca: method for steady-state damp heat test
GB2423. 4-93(IEC68-2—30) Test Db: Damp Heat Alternative Test
GJBl50. 9-93(MIL-STD-810D) Damp Heat Test
FAQ
Q1: What is the Warranty?
Generally, 12 months warranty. But for drying oven, the warranty is 18 months. If any quality problems on
our side occured in this period ,we will take on the cost of shipping and component parts.
Q2: What's the delivery term?
Usually, 20 - 25 days after order confirmation. It will be took more time for customization service. If you are
in urgent need, we can make special arrangement for you. It could be shipped by sea, by air or by air
express.
Q3: What’s the payment term?
Accept different kinds of payment terms, such T/T, L/C, Paypal.
Q4: Is it ok for customization service?
Of course you can. We are manufacturer of environmental test equipment. Once with your detailed
requests, we could make environmental test chamber accordingly.
