100L 3 Zone Climatic Test Chamber Semi - Hermetic Compressor Shell Tube Condenser

100L 3 Zone Climatic Test Chamber Semi - Hermetic Compressor Shell Tube Condenser
100L 3 Zone Climatic Test Chamber Semi - Hermetic Compressor Shell Tube Condenser 100L 3 Zone Climatic Test Chamber Semi - Hermetic Compressor Shell Tube Condenser 100L 3 Zone Climatic Test Chamber Semi - Hermetic Compressor Shell Tube Condenser 100L 3 Zone Climatic Test Chamber Semi - Hermetic Compressor Shell Tube Condenser

Large Image :  100L 3 Zone Climatic Test Chamber Semi - Hermetic Compressor Shell Tube Condenser

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE ,ISO
Model Number: KTS-100D
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
High Temperature Setting: +60℃ ~ +150℃ Interior Material: SUS 304
Low Temperature Setting: -65℃ ~ -10℃ Compressor: Semi-Hermetic Compressor
Condenser: Shell And Tube Condenser (water-cooled) Insulation Material: Rigid Polyurethane Foam+glass Fibre Wool
High Light:

climatic test chambers

,

Environmental Test Chamber

100L 3-Zone thermal shock chamber with Independent product testing are





Prouduct Application



3 zones Themral Shock Test Equipment is used to test the bearing extent of the material structures and



composite material in an instant and continuous high temperature and extremely low temperature



environment, can used to test its thermal expansion and contraction caused by chemical change or



physical harm in the shortest time, are widely applied for metal, plastic, rubber, electronics and other



materials and it can be used as an important reference for improving product quality.





Main features of Thermal test chamber:


Direct-drive system for reliable transfer between zones


Compact design with integrated mechanical refrigeration


Two specimen baskets


Includes caster and leveling pads for easy movement


Designed for performance with maximum load





Prouduct Specifications



Model KTS-100D
Temp.range High Temp.chamber +60℃ ~ +150℃
pre-heat time +60 ℃~+200 ℃ Within 20 Min
Low Temp.chamber -65℃ ~ -10℃
pre-heat time +20℃~-70 ℃ Within 60 Min
Test.chamber  -65℃~+150 ℃
Recovery time Exposure 30 min
Exposure 30 min
Within 5 min
Test weight(kg) 5
Inside Dimension (mm) W 500
H 450
D 450
Outer Dimension (mm) W 1520
H 1990
D 2050
Interior material Stainless Steel Plate(SUS304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fibre wool
Refrigeration system Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant
Controllor Panel Operation model Memory capacity Accuracy Input Comm.port LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option)
Safety Devices No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector.
Standard Accessories Shelvesw*2,cable port(portØ50mm)*1
Ambient Temp +5℃~+35℃
Power AC380±10%50Hz 3phase 4 wires+Groud Wires





Feathers



● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test



● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test



● GJB360.5-1986 Temperature Shock Test



● GJBl50.3-2009(MIL-STD-810D) High Temperature Test



● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test



● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test



● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test



● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test

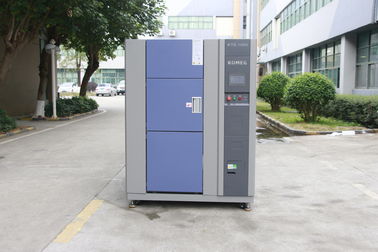

Prouduct Display



100L 3 Zone Climatic Test Chamber Semi - Hermetic Compressor Shell Tube Condenser 0







Packing and Shipment:



(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

100L 3 Zone Climatic Test Chamber Semi - Hermetic Compressor Shell Tube Condenser 1


Pre-sales service

1) More than 20 years manufacturer experience and 8 years export experience.

2) Acceptable customization for all kinds of special specification products.

3) We value very inquiry sent to us, ensure quick and competitive offer.

4) We put your order into our tight production schedule,ensure your punctual delivery time.

5) We are a sales team, with more than 4 years experience, more professional and reliable.

6) Welcome to view our factory at any moment .


After-sales service

1) We deal with your complains within 24 hours.

2) Training how to install the machine, training how to use the machine.

3) Engineers available to service machinery overseas.

4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be

    dedicated to provide high quality service and products for you.
