Product Details:
Payment & Shipping Terms:
|
| Workspace Volume (W X H X D): | 700*750*800mm | Temperature Range: | -40 °C To 150 °C |
|---|---|---|---|
| Material: | SUS304 Stainless Steel | Power Supply: | AC 380V±10％ 50Hz ,3 Phase 4 Wires +Ground Wires |
| Controllor: | Touch Screen Controller | Exterior Material: | Baked Painting Steel |
| Warranty: | 15 Months | ||
| High Light: | high temperature test chamber,low temperature test chamber |
||
408 Liter Two Zone Type High Low Temperature Test Chamber with Two Controller
1. High and low temperature test chamber: It is suitable for high temperature and low temperature reliability test of industrial products. The parts and materials of electronic products, automotive motorcycles, aerospace, marine weapons, universities, research institutes, and other related products are tested under various conditions of high temperature and low temperature (alternative) cyclic changes.
Application:
High-low temperature test chamber products simulate the temperature variation in the atmospheric environment. Mainly for electrical, electronic products, and its components and other materials in the high-temperature, low-temperature comprehensive environment transport, use the adaptability test. For product design, improvement, identification and testing and so on.
Specifications for Climatic Test Chambers:
Standard Met and Implemented:
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
MIL - STD - 202G - 103B humidity test
IEC60068-2-30 humidity temperature cycle
GB/T2423.3 constant humidity heat test method
2. High temperature limits of test chambers
Features:
a. High-quality appearance, the body adopted an arc shape, surface automobile coating technology processing, and mechanical explosion-proof handle, easy to operate, safe and reliable.
b. Rectangular multi-layer glass View window, the use of guinea pigs observed in the test window with anti-sweat heaters device prevents water gas condensate, knot, water droplets, LED lamps to keep the inside lighting.
c. Door frame with airtight packing, can be effectively isolated from the internal temperature of the leak
d. With external water supply system, convenient to supplement the cylinder water supply, and automatic recovery using.

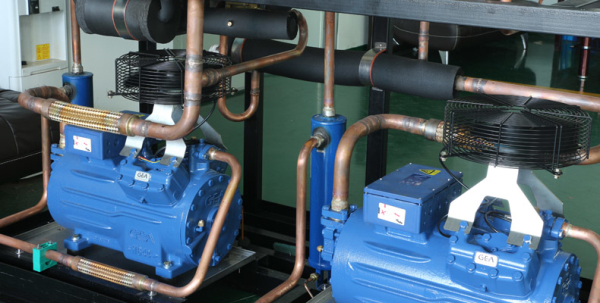

e. Compressor cycling system used France “Tecumseh” brand which can effectively remove condenser pipe and between capillary Lubricating oil and whole series adopt environmental protection refrigerant (R23, R404)
f. Controller uses the imported LCD display screen, can display measured values (PV) and setting values (SV) time
g. Controller with multi-segment program editor and temperature and humidity can be fast (QUICK) or slope (SLOP) controlled.
h. Built-in mobile wheels allow easy movement and placed, with a strong positioning screw position.
3. Parameter Specifications:
| Secifications ( at +20℃ room temp. Or+25℃ water temp with empty load) | |||||
| Model | KMH-L series | ||||
| KMH-150L | KMH-225L | KMH-408L | KMH-800L | KMH-1000L | |
| Interrior material(cm) | 60*60*46 | 70*70*48 | 70*75*80 | 100*100*80 | 100*100*100 |
| Exterrior material(cm) | 88*173*140 | 98*189*146 | 98*194*174 | 128*216*175 | 128*216*195 |
| Weight(Kg) | 250 | 300 | 420 | 530 | 600 |
| Equipment power(KW) | 7.5 | 7.5 | 8.5 | 14.5 | 14.5 |
| Tempeture range | -40 ℃ ～ +150 ℃ | ||||
| Humidity range | 20 ～ 98%R.H | ||||
| Tempeture constancy | ±0.5℃ | ||||
| Humidity constancy | ±2.5% R.H | ||||
| Tempeture uniformity | ±2.0 ℃ | ||||
| Humidity uniformity | ±3.0% R.H(＞75%) ±5.0% R.H (≤75%) | ||||
| Heating rate | -40℃～+100℃ Within 45 minutes | ||||
| Cooling rate | +20℃～-40℃ Within 60 minutes | ||||
| Controllor | Touch screen controller English menu Operation mode:setting or program | ||||
| Refrigeration system | Air cooled (Water Cooled Type is option) | ||||
| Hermetic compressor, stage refrigeration system | |||||
| Interior material | Stainless Steel Plate ( SUS 304 ) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| System | Balanced & Humidity Control System | ||||
| Wiring method | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||

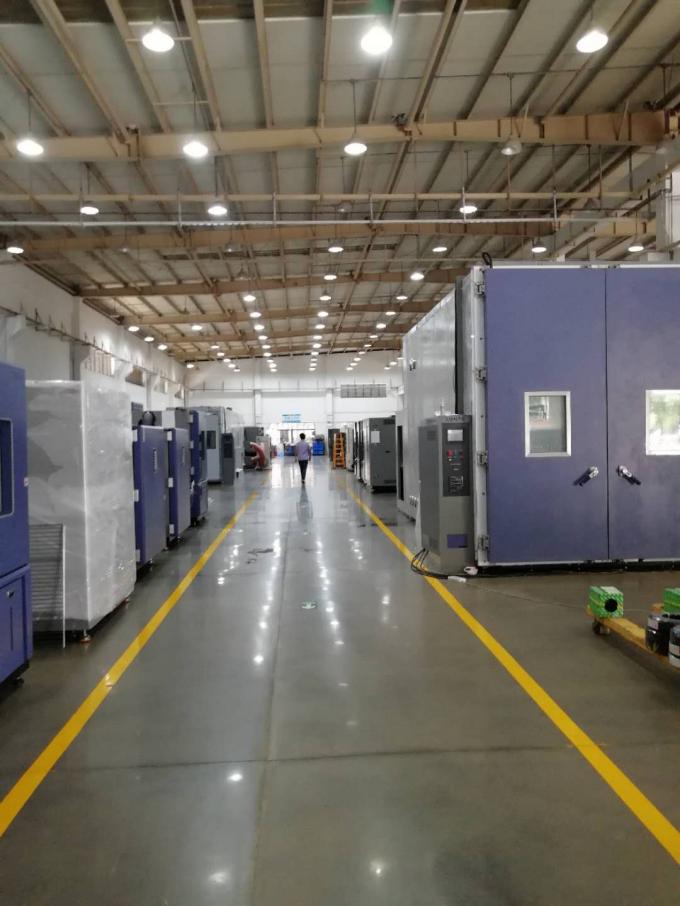

4. Factory Tour --- Why KOMEG IS Your Right Choice?
Specialized in climatic test chamber since 1990
Main parts are imported famouse brand like Tecumseh, Danfoss, Bizter, ESK,Ranco,Castel,etc.
Passed ,CE,TUV,etc. third party certification
Recognized by Global 500 Enterprises like EMERSON, SIEMENS, Minolta, Epson, HUAWEI, TCL,etc
Environmental friendly, low energy consumption and easy maintenance
High cost-effective and steady delivery time
Experienced and trained staffs assure good service

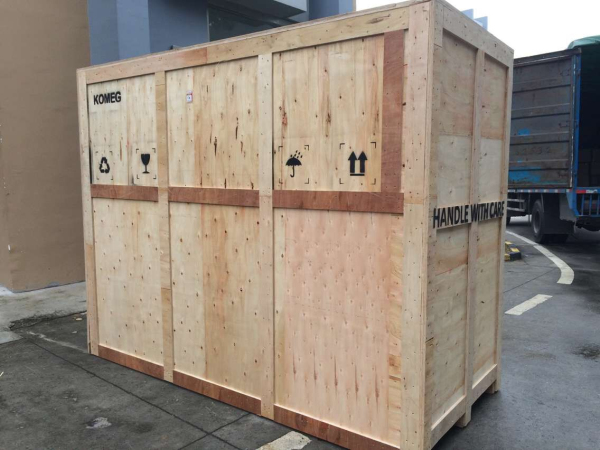

Packing Details:
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.

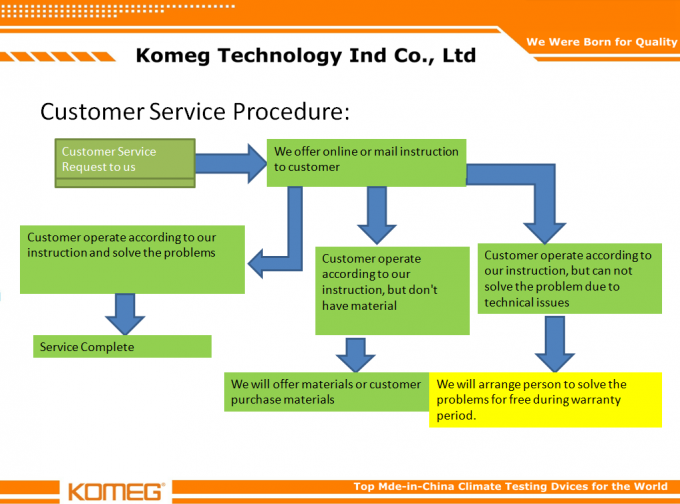

After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Better Idea, Design and Quality
We strive for continuous innovation, releasing no less than five new designs each year. Our strong R&D team and skilled workers is the key to our success. No matter it is standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more when working with us. And to ensure your specific test standards are met, the key components and parts we are using are imported famous brands. That's why , Konica Minolta, Senko, Midea, TCL and Huawei are among our long-term clients.
