| Interior Size: | W 600 X H 600 X D 600 Cm | Exterior Size: | W 960 × H 1360 ×D 800 Mm |
|---|---|---|---|
| Temp Range: | 50℃～200℃ Approx 50 Min ( No Load ) | Interior Material: | Stainless Steel |
| Exterior Material: | Baked Painting Steel | Heating Method: | PID+S.S.R |
| High Light: | laboratory drying oven,large industrial ovens |
||
High Temperature Precise Drying Chamber Hot Air Circulating Drying Oven For Industrial
OEM and ODM are welcome ,kindly contact: anna@komegtech.com
Application
The chamber is applicable to the reliability test/production of industrial products. It has the characteristics of
temperature control accuracy and wide control range. The performance index complies with
GB5170.2.3.5.6-95 "High-Temperature Test Equipment for Basic Parameters Verification of Electrical and
Electronic Products Environmental Testing Equipment.
| Ⅱ. Specifications | |
| 1.Air supply mode |
Forced air circulation
|
| 2.Temperature Range |
+20℃ ～ +220℃
|
| 3. Temp fluctuation |
±0.5℃
|
| 4. Temp Uniformity |
±2.0℃ (RT+20℃ ～ +100℃) ±3.0℃ (+101℃ ～ +200℃) ±4.0℃ (+201℃ ～ +220℃)
|
| 5. Heat up time |
RT ～ + 220℃ 50min (no-load)
|
| 6. Control mode |
PID+SSR output
|
| 7. Interior dimension |
W600 × H 600 × D 600 mm
|
| 8. Exterior dimension |
about W 960×H 1360 ×D 800 mm
|

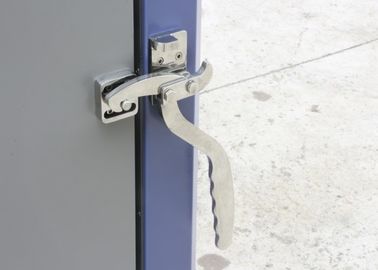

| 9. Door |
Silicone, single door
|
| 10. Materials: |
interior material :SUS201# stainless steel；
External material: high-quality carbon steel |
| 11.Insulation materials: |
glass fiber.
|
| 12. Heater |
Fins radiator pipe shaped stainless steel electric heater
|
| 13.Temperature controller |
Korea imported thermostat ST-570
* High precision (0.1%), high performance
* Support multi imput (T / C, RTD, DCV)
* Multi output and simultaneous output (Max 4 points)
* Parameter operation is simple, the text can be set
* Supports suppression of Overshoot function
* Alarm output 1 point
* Operation display of auxiliary output status
* Input adjustment function for each zone (Max 4 Zone)
* Control the heating and cooling functions
* PID automatic adjustment function (AT Gain)
* Supports multiple communication protocols (Modbus, etc.)
* To achieve high quality, high reliability (CE, CUL, ISO, etc.) |
| 14.Temperature measurement |
K thermoelectric pairs
|
| 15. Work timer |
Digital timer type 1, range 0 to 9999min (after the temperature is
reached, timing starts, timing is completed, and operation stops) |
| 16.Frame material |
Two stainless steel partitions (adjustable height), 30kg/ply.
|
| 17. Protective device |
Over-temperature protection, motor overload protection, buzzer, fault
indicator, no fuse switch. |
| 18. Accessory |
Power cord 3 meters
|

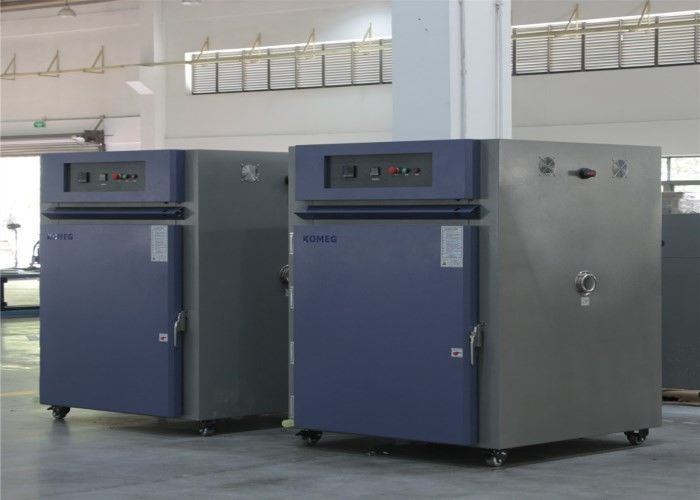

Photos show
