3 In One Axis Temperature Humidity Chamber Vibration Combined Water Cooled

3 In One Axis Temperature Humidity Chamber Vibration Combined Water Cooled
3 In One Axis Temperature Humidity Chamber Vibration Combined Water Cooled 3 In One Axis Temperature Humidity Chamber Vibration Combined Water Cooled 3 In One Axis Temperature Humidity Chamber Vibration Combined Water Cooled 3 In One Axis Temperature Humidity Chamber Vibration Combined Water Cooled

Large Image :  3 In One Axis Temperature Humidity Chamber Vibration Combined Water Cooled

Product Details:
Place of Origin: China
Brand Name: komeg
Certification: CE ,CMC
Model Number: THV-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: foam and wooden box
Delivery Time: 35 days after order confirmed
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100pcs/day
Detailed Product Description
Interior Material: Stainless Steel Temp Range: -80℃ ~ +150℃
Cooling Mode: Water Cooled Insulation Material: Rigid Poly Foam And Glass Fiber Wool
Controllor: Touch Screen Controller Room Temperature: +25℃ (no Load )
High Light:

temperature and humidity chamber

,

temperature test chamber

3 In One Axis Temperature Humidity Chamber Vibration Combined Water Cooled



OEM&ODM are welcome , more information ,pls kindly contact :anna@komegtech.com



Description :



The temperature and humidity vibration comprehensive test box is an instrument for users to screen the



entire temperature (humidity, humidity, and vibration) of the whole machine (or parts), electrical appliances,



instruments, and materials.





Specification



Temperature range

-80℃ ~ +150℃



Temperature deviation

≦±2.0℃



Temperature fluctuation

±0.5℃



Temperature uniformity

≦2.0℃



Ambient Temp

+5℃~+35℃



Chamber Structure





Chamber size

Interior: W 100*H100*D100 cm



Workshop Size:1000L

Temp change rate



.≦5℃/Min or 10℃/Min (-55℃~+80℃ Humidity range )



Heater

High-quality nickel-chromium alloy wire electric heater, non-contact control (SRR).



Supply air circulation system

A. Special stainless steel lengthened axis of the motor 1



B. SIROCCO FAN



C. Adjustable shutter outlet



Refrigeration system



1.Compressor

BOCK Semi-hermetic compressors



2.Refrigerant

R404A/R23 (Ozone damage index is 0)environmental friendly



3.Condenser

Air cooling fin condenser.



Evaporator

Copper aluminum finned evaporator.



5. Other accessories

High-precision expansion valve, oil separator, desiccant, etc. components are



imported using internationally renowned brands

6.Refrigerant flow control Automatic adjustment of energy consumption output of the refrigeration system.
7.Refrigeration Technology

1. Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal



cooling system clean and reliable.



2.water tray located at the bottom of the compressor to ensure condensate water



drain through pipe freely at the rear of the chamber.

Temp sensor

PT-100 Platinum resistance sensor



Controller

Touch screen programmable controller



Vibration table

Optional accroding to customer requirements







Application:



The temperature and humidity vibration comprehensive test chamber mainly provides the temperature and



humidity change environment for scientific research and production units such as aerospace, aviation,



petroleum, chemical, electronics and communications. At the same time, the electric vibration stress can be



applied to the test sample in the test box according to the specified period. In order to assess the



adaptability of the test sample or evaluate the behavior of the test sample. Compared with the effect of a



single factor, it can more truly reflect the adaptability of the electrical and electronic products to changes in



temperature and humidity and vibration in the process of transport and actual use. The defects of the



exposed products are new product development, prototype testing, and product qualification. The test is an



indispensable test for the entire process.

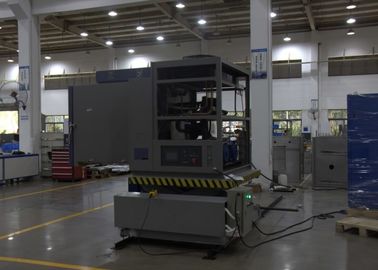

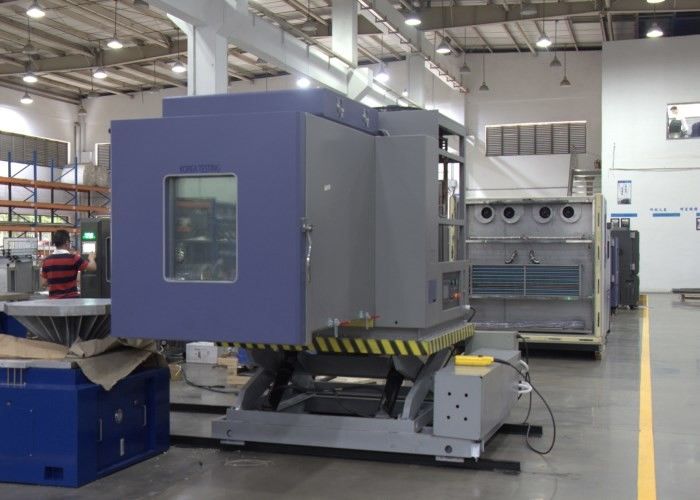

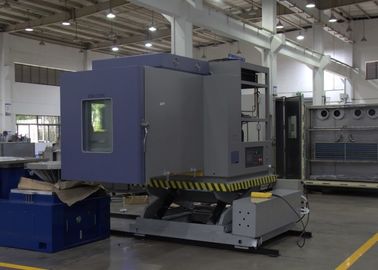

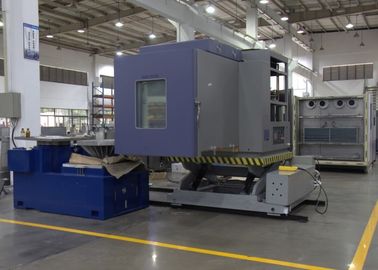

Photos Show



3 In One Axis Temperature Humidity Chamber Vibration Combined Water Cooled 0



3 In One Axis Temperature Humidity Chamber Vibration Combined Water Cooled 1
