Product Details:
Payment & Shipping Terms:
|
| Temperature Range: | -40 ～ 150 ℃ | Temp Deviation: | ±2.0℃ |
|---|---|---|---|
| Workspace Volume: | IW 700× IH 700 × ID 480 Mm | Exterior Size: | IW 980× IH 1920× ID 1503mm |
| Humidity Range: | 20～98%RH | Inner Wall Material: | SUS304 # Matte Stainless Steel Plate |
| High Light: | humidity and temperature controlled chamber,temperature test chamber |
||

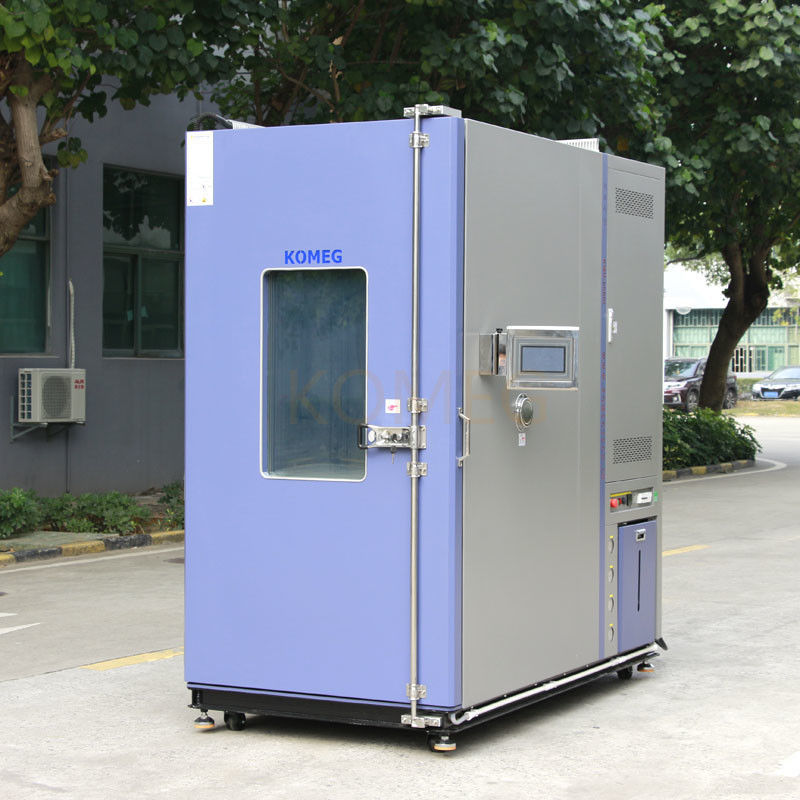

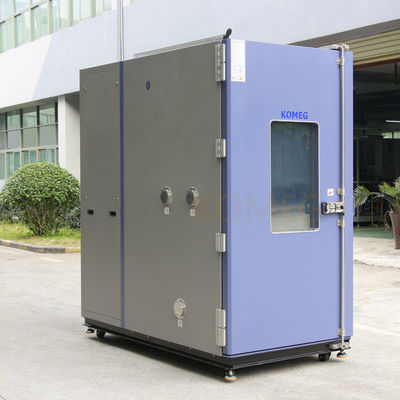

Single Door 200L Temperature Humidity Chamber / Walk In Environmental Chamber
Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat
Application
Applicable to environmental adaptability and reliability test in such industrial units as electronics,
electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material,
research institution, inspection and quarantine bureau, university etc.
Specifications
| Chamber | |||
| Workspace volume | IW 650× IH 650 × ID 480 mm | ||
| Exterior size | IW 980× IH 1920× ID 1503mm | ||
| Temperature | |||
| Temperature range | -40 ～ 150 ℃ | ||
| Temp Deviation | ±2.0℃ | ||
| Temp Constancy | ±0.5℃ | ||
| Temp Uniformity | ±2.0℃ | ||
| Ramping and soaking rate |
+20℃ ↓ -40℃ within 60 min(no-load) -40℃ ↑ +100℃ within 45 min(no-load) |
||
| Humidity | |||
| Humidity range |
20%R.H.～98%R.H |
||
| Control range | |||
| Humidity deviation | ±2％RH | ||
| Humidity uniformity | 3.0％RH | ||
| Humidity deviation | ±2.0％RH | ||
| Chamber Structure | |||
|
Overall structure and chamber was composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet. |
|||
| Insulation box |
wall material: high-quality carbon steel with static color spray inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
||
| Door | Heating wire was installed at the door frames to prevent condensation at low temperatures. | ||
| Observation window | With 1 set 380 × 500mm (width × height) observation window, multi-hollow electric insulation coated glass prevent condensation effectively | ||
| Cable port | Φ50mm*2 located on both sides(each*1) with rubber stopper and plastic cover | ||
| Lighting device | 11W/AC220V *1 located on observation window | ||
| Water outlet hole | Available for drain the condensate water | ||
| Sample holder | Two layers of stainless steel sample holder. | ||
| Mobile Casters | Mobile Casters *4 with foot cups | ||
| Electric control box | Total power circuit breaker, over-temperature protection. | ||
| 10. Water supply system | Water pump automatic supply | ||
Product details
Packing and Shipment:
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
