|Interior Material:||Stainless Steel Plate(SUS304)||Exterior Material:||Baked Painting Quality Steel Sheet|
|Controller:||Programmable LCD Touch Screen||Door:||Single Door|
|Temp Range:||-40℃ ～ +150℃||Temperature Fluctuation:||±0.5℃(no-load)|
high temperature test chamber,
low temperature test chamber

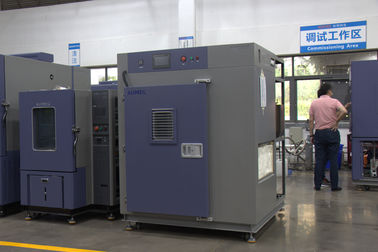

225 L Benchtop High And Low Temperature Test Chamber With LCD Touch Panel
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5188.8.131.52.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat.
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research
institution, inspection and quarantine bureau, university etc..
W 650× H 640× D550 mm(single test chamber)
W 1490 × H 1760 × D1205 mm(excluding the protruding part like motor,etc)
-40℃ ～ +150℃
≦±2.0℃(no-load) ≦±2.0℃(standard load) the test space temperature deviation reach standard after the temperature reach the setting value for 30 mins.
≦2.0℃(no-load)≦5.0℃(standard load) the test space temperature deviation reach standard after the temperature reach the setting value for 30 mins.
|Chamber size||Interio size:W650XH640XD550mm(single test chamber) Exterio size: W1490xh1760xD1205mm(excluding the protruding part like motor,etc)|
|Heating and cooling rate||R+25 ℃↓-40 ℃ average cooling rate≥1℃ /min(standard load)|
|R-40 ℃↑+150℃average heating rate≥3℃ /min(standard load)|
|System||Balanced&Humidity Control System|
|Interior material||Matte Stainless Steel Plate(SUS304)|
|Exterior material||Baked Painting quality steel sheet|
High-density rigid polyurethane foam+glass fiber wool
|Chamber door||single door|
|Left open,with heating wire was installed at the door frames to prevent condensation at low temperatures.|
|Lighting device||One light of 11W/AC220V,located on observation window|
|Observation window||With 1 set 400x500mm(widthxheight)observation window installed on the door|
|multi-hollow electric in sulation cated glass prevent candensation effectively|
|Heater||Quality nickel-chromium alloy wire electric heaters,Non-contact control mode(SSR)|
|Condensate outlet hole||Equipped with drainage hole and pipes for test space condensed water and refrigeration system condensate.|
|Cable hole||Two cable holes of ∅100mm loated on both sides of the test chamber ,with rubber stopper and plastic cover.|
|Sample-holder||Two layers of stainless steel sample holder, Weight bearing 30KG/layer|
Environmental test chamber Standard
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about
the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link
power in your lab, then can start to operate;
Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it;
Thirdly, some of customized chambers we should to install and teach your team to operate.
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched
first, then use strong plywood case for easyload and transport, and to keep the chambers from potential
crash or impact.
If you face any problems in future during testing process we promise we will give you a reply within 48
hours and solution provide within 3 working days. We can offer operation video and English operation
muanual. We can provide video-conference. If customers require on-site service, the transport and travel
expense shall be borne by customer.
