|Power:||Electronic||Usage:||Universal Testing Machine|
|Product Name:||Altitude Test Chamber,Pressure Testing Chamber||Pressure Up Rate:||100KPa～40KPa, Within 15min|
|Pressure Down Rate:||26KPa～100KPa,about 10KPa/min||Pressure Range:||Normal Pressure～26kPa|
|Temperature Range:||-30℃～+150℃||Temperature Deviation:||2.0℃（Normal Pressure）|
|Customization Service:||Yes||Test Space Dimension:||W×H×D:800×900×700mm|

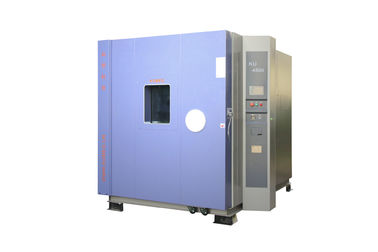

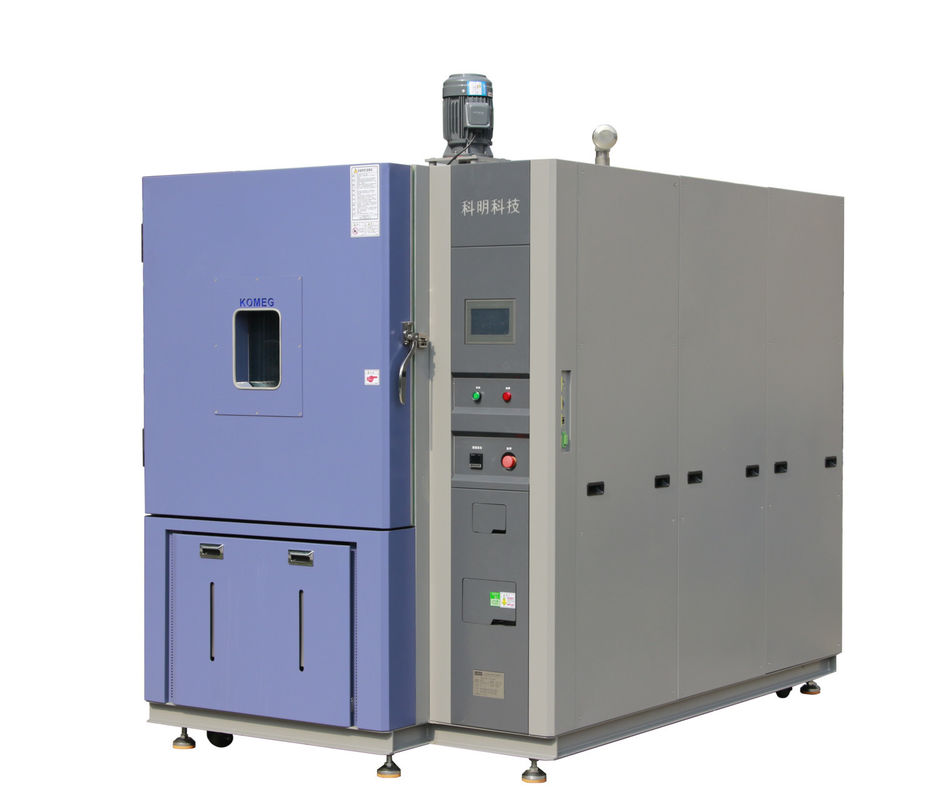

High Altitude Test Chamber / High And Low Temperature Low Pressure Test Equipment
Low pressure climate chamber for auto parts test simulates reliable storage and transportation climate of high altitude, sky, plateau area and low pressure high low temperature, it is applied to defense industry, aerospace industry automation components, auto parts, electronics, electrical components, plastic, chemical industry, pharmaceutical industry, food industry and other related products.
Control methods and characteristics
High precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system’s heating and humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.
|1 Test space dimension||W×H×D:800×900×700mm|
|2 External dimension||
W×H×D: 1610×1990×2250 mm
PS: not including external dimensions protruding part
|3 External material||External material use high-quality carbon steel with static color spray|
|4 Internal material||Stainless steel plate (SUS # 304)|
|5 Insulation material||High-density rigid Polyurethane foam + glass wool, (high strength, non-flammable, no deformation)|
|6 Door||Single open door, Explosion - proof handle, observation window 210*270mm, with lighting lamp inside.|
|7 Cable port and binding post||
One Φ100mm cable hole on the left;
with glass sintered sealing binding post (14 core - 10A) flange
|8 Manual charging valve||Manual inflation valve for manual pressure relief during power failure.|
|9 Shelf||Stainless steel shelf *2 layer.|
|10 Air heater in the box||Fin type heat pipe stainless steel electric heater.|
11 Heating control
|SSR (solid state relay) non-contact pulse width modulation.|
|12 Vacuum pump||SV-10B vacuum pump|
Other proposed models
|Inner Size (D*W*H)mm||600*600*700||800*700*900||1000*1000*1000||1200*1400*1200|
|Temp deviation||≥100℃, ±3.0℃(at 101kPa, ATM no load)|
|<100℃, ±2.0℃(at 101kPa, ATM no load)|
|Cooling rate||0.7℃~1.0℃/min (Average)|
|Pressure range||101kPa ~1kPa|
|Pressure accuracy||±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa)|
|Depressurization rate||101kPa ~1kPa≤30mins (Room temp)|
|Pressure recovery rate||10kPa/Min(adjustable)|
Control mode for pressure
The up and down rate of pressure is adjustable, firstly, change altitude linearly,
till to the testing altitude, and then adjust the temperature linearly.
Model: UNIK 5072 (USA GE)
Measuring range: 0 ~ 200KPa
Comprehensive accuracy: ± 0.2% FS. BSL
Output: 4 ~ 20mA
Pressure interface: G1 / 4 internal thread
Two sample holders; an observation window; φ50 or φ100 cable hole.
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including communications software, computer)
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Tecumseh, Bock Compressor;
High quality electronic components (DANFOSS, Carlo Gavazzi, Omron, SPORLAN, HONEYWELL, Schneider solenoid valve)
Standards Implemented and Met
B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
1. Are you a Manufacturer ? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer of Climatic Test Chamber,Competitive Price Altitude Test Chamber,Pressure Testing Chamber,Pressure Chamber .Every machine from our factory has a 13-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 1 month for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 25-30 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
