Machine Type: | Environmental Test Chamber High And Low Temp. | Temperature Range: | -20℃ ~ +150℃ |
---|---|---|---|
Temp Deviation: | ±2.0℃ | Temp Fluctuation: | ±0.5℃ |
Interior Size: | W 700 × H700 × D 480 Mm | Inner Wall Material: | SUS304 # Matte Stainless Steel Plate |
Door: | Single Door, Open On The Left, Explosion-proof Handle | Water Outlet Hole: | Available For Drain The Condensate Water |
Power: | Electronic | Usage: | Process Testing Machine |
High Light: | high temperature test chamber,low temperature test chamber |

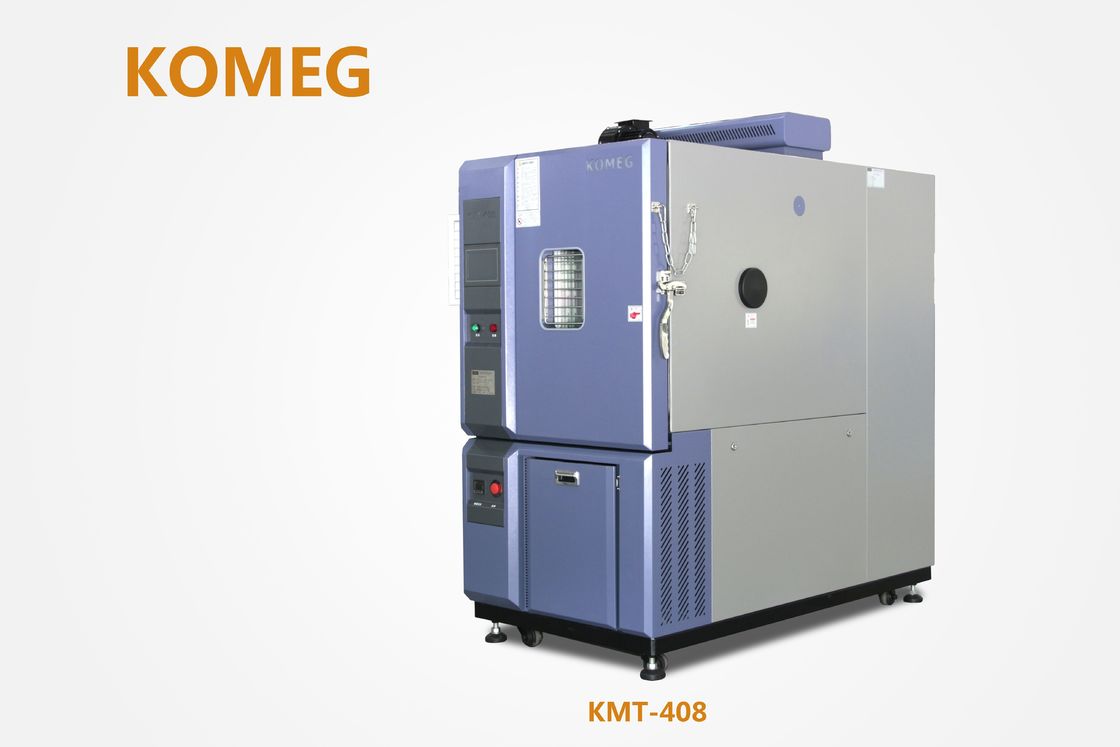

Programmable High Low Temperature Test Chamber Lithium Battery Explosion - Proof Testing
Product Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing equipment and test methods for the basic parameters of electric and electronic products under the condition of low temperature, high temperature, and constant heat.
Application
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc..
Features
● GB-2423.1-2008(IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009(MIL-STD-810D) Low Temperature Test
Model |
KMT-64 |
KMT-150 |
KMT-225 |
KMT-408 |
KMT-800 |
KMT-1000 |
|
Inner Size W×H×D(cm) |
40×40×40 |
60×60×46 |
70×77×48 |
70×75×80 |
100×100×80 |
100×100×100 |
|
External Size W×H×D(cm) |
60×155×122 |
80×163×149 |
90×174×150 |
90×179×182 |
120×204×182 |
120×204×202 |
|
Volume(L) |
64 L |
150L |
225L |
408L |
800L |
1000L |
|
Temp. Control Range |
Temp. Range: R: -20°C~150°C L: -40°C~150°C S: -70°C~150°C (Other temperature and humidity range can be customized) |
||||||
Temp. Fluctuation |
±0.5°C |
||||||
Temp. Departure |
±2°C |
||||||
Controller Resolution |
±0.3°C; |
||||||
Controller Brand |
KOMEG KM-5166 |
||||||
Material |
Inwall |
SUS 304# steel plate |
|||||
|
Housing |
SUS 304# steel plate surface fog processed |
|||||
|
Heat Insulator |
resistance to high temperature, high chlorine acid b vinegar foam insulation materials |
|||||
Aie Circulation Way |
centrifugal fan-broadband type force air circulation |
||||||
Refrigeration Way |
cascade type multiple refrigeration |
||||||
Refrigerater |
fully enclosed piston compressor Taikang France |
||||||
Refrigerants |
R4O4Aor American dupont environmental protection cold media(R23+R404) |
||||||
Condensing Way |
Air-cooling |
||||||
Heater |
nickel chrome heating wire heater |
||||||
Water Supply Way |
automatic cycle water supply |
||||||
Standard Accessaries |
*50mm test hole on the both side....................................................2PCS *PL inner lamp................................................................................1PCS *Adjustable clapboard.....................................................................2PCS *Fuses..............................................................................................3PCS *Power line.......................................................................................1PCS *Software CD....................................................................................1PCS *Operation manual.............................................................................1PCS |
||||||
Safety Devices |
*Leakage current *Overload *Compressor overload *Over temperature |
||||||
Power |
380V or 220V AC±10% 50/60Hz |
Air-conditioning system |
|
1.Working mode |
Mechanical compression refrigeration |
2.Refrigeration compressor |
Hermetic compressor imported from Europe and the United States |
3. Evaporator |
Automatic load capacity adjustment of high performance of fin type, able to use in low temperature and high humidity in a long term and without frost. |
4. Cooling |
Sine wave pattern aluminum finned copper tube air heat exchanger (air-cooled) |
5. Refrigerant |
R404A Environmental friendly high temperature level of refrigerant |
6.Other attachment |
High-precision expansion valve, desiccant, and other components are imported internationally imported brands. |
7.Refrigerant flow control |
Refrigeration system of energy consumption output control by automatic adjustment |
8.Refrigeration Technology |
※ Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable. ※water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber. |
