36 L Temperature And Humidity Environmental Test Chamber With Observation Window

China 36 L Temperature And Humidity Environmental Test Chamber With Observation Window supplier
36 L Temperature And Humidity Environmental Test Chamber With Observation Window supplier 36 L Temperature And Humidity Environmental Test Chamber With Observation Window supplier 36 L Temperature And Humidity Environmental Test Chamber With Observation Window supplier 36 L Temperature And Humidity Environmental Test Chamber With Observation Window supplier

Large Image :  36 L Temperature And Humidity Environmental Test Chamber With Observation Window

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE, ISO9001
Model Number: KMH-36R

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1, 000~1, 500 SETS / YEAR
Contact Now
Detailed Product Description
Temperature Range: -20℃ ~ +150℃ Temp Deviation: ±2.0℃
Workspace Volume: W 300 X H 400 X D 300 MM Exterior Size: W 460 × H 780 × D 1022 Mm
Humidity Range: 20%R.H.~98%R.H Inner Wall Material: SUS304 # Matte Stainless Steel Plate



36 L Temperature And Humidity Environmental Test Chamber With Observation Window





Product Overview



Able to accurately simulate a wide range of complicated natural environments, and is suitable for



reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental



testing equipment and test methods for the basic parameters of electric and electronic products under



the condition of humidity, low temperature, high temperature, and constant heat.





Application



Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical



appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research



institution, inspection and quarantine bureau, university etc..





Specifications





  Chamber
  Workspace volume W 300 x H 400 x D 300 MM
  Exterior size

W 460 x H 780 x D 1022 MM

PS: External dimensions excluding protrusions part

  Temperature
  Temperature range -20℃ ~ +150℃
  Temp Deviation ±2.0℃
  Temp Constancy ±0.5℃
  Temp Uniformity ±0.5℃(0℃~50℃)
  Ramping and soaking rate

From -20℃ to +100℃ less than 60mins no load

From +20℃ to -20℃ less than40mins no load

  Humidity
  Humidity range 20%R.H.~98%R.H
  Control range
  Humidity deviation

±3.0%RH(>75%RH)

±5.0%RH(≤75%RH)

  Humidity uniformity 3.0%RH(no-load)
  Humidity deviation ±2.0%RH
  Chamber Structure


Overall structure and chamber was composed of three parts as below.

Insulation box, separate refrigeration units, and electrical control cabinet.

  Insulation box

wall material: high-quality carbon steel with static color spray

inner wall material: SUS304 # matte stainless steel plate

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

  Door Heating wire was installed at the door frames to prevent condensation at low temperatures.
  Observation window With observation window, multi-hollow electric insulation coated glass prevent condensation effectively
  Cable port Φ50mm*2 located on both sides(each*1) with rubber stopper and plastic cover
  Lighting device 11W/AC220V *1 located on observation window
  Water outlet hole Available for drain the condensate water
  Sample holder Two layers of stainless steel sample holder.
  Mobile Casters Mobile Casters *4 with foot cups
  Electric control box Total power circuit breaker, over-temperature protection.
  Water supply system Water pump automatic supply







Environmental test chamber Standard



GB-2423.1-2008(IEC68-2-1)Test A: Low Temperature Test



GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test



GJB360.8-2009(MIL-STD.202F)High Temperature Life Test



GBJl50. 3 (MIL-STD-810D) High Temperature Test



GJBl50. 4 (MIL-STD-810D) Low Temperature Test

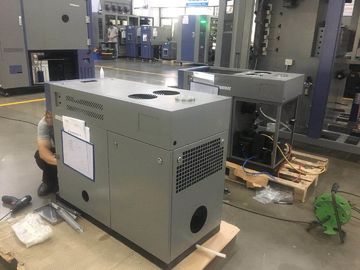

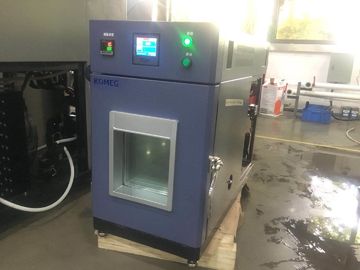

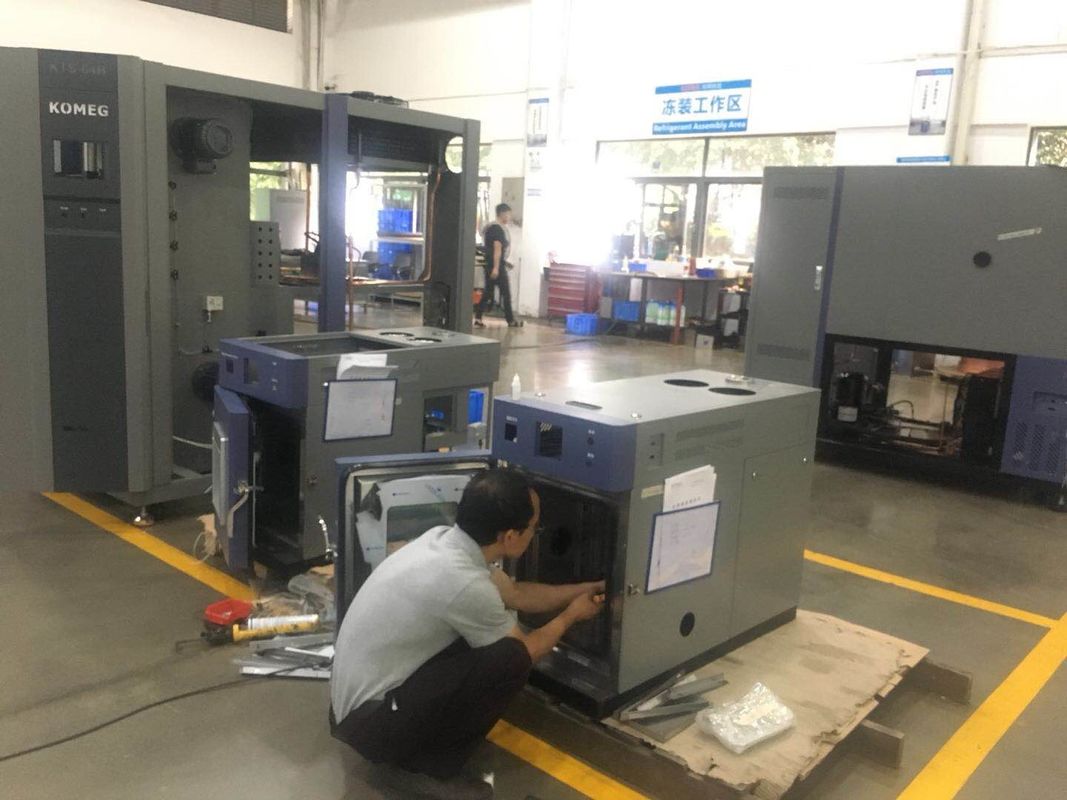

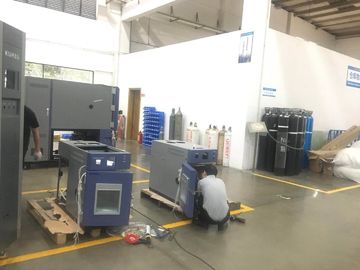

Product details



36 L Temperature And Humidity Environmental Test Chamber With Observation Window



36 L Temperature And Humidity Environmental Test Chamber With Observation Window





Packing and Shipment:



(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.



36 L Temperature And Humidity Environmental Test Chamber With Observation Window





After-sales Service and Training



Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty



period, the user will be charged properly. Irregular examination and life-long service are available;



Note: If needed, provide 2 operators for on-site installation and training



36 L Temperature And Humidity Environmental Test Chamber With Observation Window
