64L Stainless Steel Temperature Humidity Chamber Temperature Range -65 ℃ ~ +150 ℃

China 64L Stainless Steel Temperature Humidity Chamber Temperature Range -65 ℃ ~ +150 ℃ supplier
64L Stainless Steel Temperature Humidity Chamber Temperature Range -65 ℃ ~ +150 ℃ supplier 64L Stainless Steel Temperature Humidity Chamber Temperature Range -65 ℃ ~ +150 ℃ supplier 64L Stainless Steel Temperature Humidity Chamber Temperature Range -65 ℃ ~ +150 ℃ supplier 64L Stainless Steel Temperature Humidity Chamber Temperature Range -65 ℃ ~ +150 ℃ supplier

Large Image :  64L Stainless Steel Temperature Humidity Chamber Temperature Range -65 ℃ ~ +150 ℃

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE, ISO9001
Model Number: KTS-64D

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1, 000~1, 500 SETS / YEAR
Contact Now
Detailed Product Description
Workspace Volumeial: IW 400 × IH 400 × ID400mm Exterior Size: EW 1410× EH1930× ED1900 Mm
Controller: LCD Touch Panel Temperature Range: Single Stage Refrigeration System
Ramping And Soaking Rate: -65℃~+150℃ High And Low Temperature Impact Thermostat Time: 30min Or More



64L Stainless Steel Temperature Humidity Chamber Temperature Range -65 ℃ ~ +150 ℃





Product Overview



Able to accurately simulate a wide range of complicated natural environments, and is suitable for



reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental



testing equipment and test methods for the basic parameters of electric and electronic products under



the condition of humidity, low temperature, high temperature, and constant heat.



Application



Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical



appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research



institution, inspection and quarantine bureau, university etc..





Specifications



Workspace volume IW 400 × IH 400 × ID 400 mm
Exterior size EW 1410 × EH 1930 × ED 1900mm
Temperature
Temperature range -65 ℃ ~ +150 ℃
Temp Deviation ±0.5℃
Temp Constancy ±2.0℃
Temp Uniformity ±2.0℃
Ramping and soaking rate

-65℃~ +150℃ approximately 5mins (Load 2.0kg)



The above specifications is measured in the environment of + 25 ℃, temperature and humidity performance measurement comply with related regulation of IEC60068-3-5 standard; Sensors placed in the air outlet.
Chamber Structure

Overall structure and chamber was composed of three parts as below.

Insulation box, separate refrigeration units, and electrical control cabine

Insulation box

 wall material: high-quality carbon steel with static color spray

 inner wall material: SUS304 # matte stainless steel plate

 Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

Door Heating wire was installed at the door frames to prevent condensation at low temperatures.
Observation window With 1 set 460 × 560mm (width × height) observation window, multi-hollow electric insulation coated glass prevent condensation effectively
Cable port Φ50mm*2 located on both sides (each*1) with rubber stopper and plastic cover
Lighting device 11W/AC220V *1 located on observation window
Heating

Quality nickel-chromium alloy wire electric heaters,

Non-contact control mode (SRR).

Humidifying

Steam heating and humidification method;

Stainless steel sheathed heater;

Heater control: contactless control (SSR);

Water level control device, heater anti-dry device.

Water outlet hole Available for drain the condensate water
Sample holder Two layers of stainless steel sample holder.
Mobile Casters Mobile Casters *4 with foot cups
Electric control box Total power circuit breaker, over-temperature protection.
Water supply system Water pump automatic supply





Environmental test chamber Standard



GJB150.3 high-temperature testing



GJB150.4 low-temperature testing



GJB150.9 humid testing



GB11158 Technical conditions for high-temperature testing box



GB10589-89 Technical conditions for low-temperature testing box



GB10592-89 Technical conditions for high and low temperature testing box



B/T10586-89 technical conditions for humidity testing chamber



GB/T2423.1-2001 Low-temperature testing methods



GB/T2423.2-2001 High-temperature testing methods



B/T2423.3-93 Testing Method for humidity Test Chamber



GB/T2423.4-93 Alternating hot and humid testing method



GB/T2423.22-2001temperature testing method



IEC60068-2-1.1990 low-temperature testing method



IEC60068-2-2.1974 high-temperature testing method

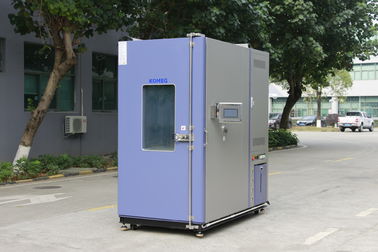

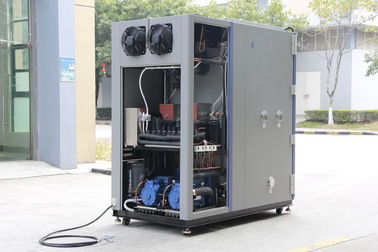

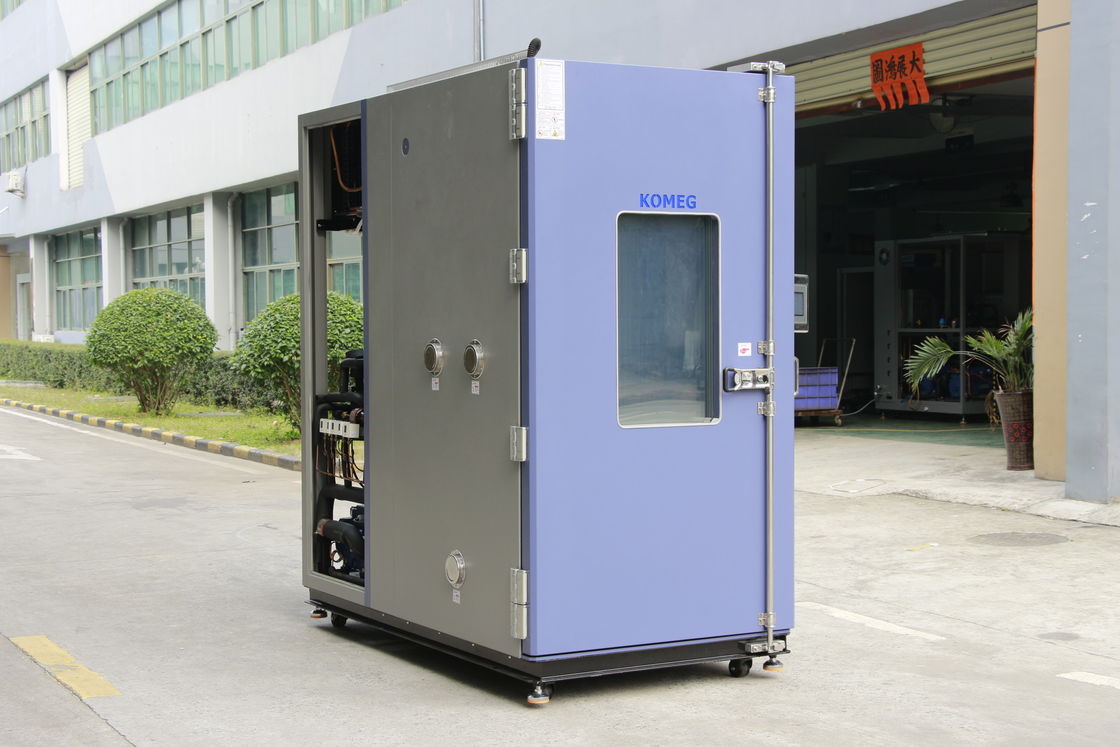

Product details



64L Stainless Steel Temperature Humidity Chamber Temperature Range -65 ℃ ~ +150 ℃





Packing and Shipment:



(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.



64L Stainless Steel Temperature Humidity Chamber Temperature Range -65 ℃ ~ +150 ℃





After-sales Service and Training



Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty



period, the user will be charged properly. Irregular examination and life-long service are available;



Note: If needed, provide 2 operators for on-site installation and training





Company introduction:



Since 1990, manufacturers of custom environmental chambers and standard environmental chambers,



Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude



chambers, temperature chambers, temperature and humidity chambers, environmental test chamber



manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar



panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in



chambers, laboratory test chambers, environment test rooms.



64L Stainless Steel Temperature Humidity Chamber Temperature Range -65 ℃ ~ +150 ℃
