Touch Screen Temperature Humidity Controlled Cabinets Reliability Testing Different Size

China Touch Screen Temperature Humidity Controlled Cabinets Reliability Testing Different Size supplier
Touch Screen Temperature Humidity Controlled Cabinets Reliability Testing Different Size supplier Touch Screen Temperature Humidity Controlled Cabinets Reliability Testing Different Size supplier Touch Screen Temperature Humidity Controlled Cabinets Reliability Testing Different Size supplier

Large Image :  Touch Screen Temperature Humidity Controlled Cabinets Reliability Testing Different Size

Product Details:

Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: KMH-1280R

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs/day
Contact Now
Detailed Product Description
Temp Range: -40℃ ~ +150℃ Capacity: 2000L
Interior Material: SUS 304 System: Balanced And Humidity Control System
Safety Devices: No Fuse Breaker,over Pressure Packing: Rigid Foam And Wooden Box


Touch Screen Temperature Humidity Controlled Cabinets Reliability Testing Different Size


Description :


Able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability



test in industrial products.



Technical Specification



Different size and temperature range ,humidity range can be according to your requirements .



Model KMH-
36 64 80 100 150 225 408 800 1000 1300
Working Chamber Volume (litter 36L 64L 80L 100L 150L 225L 408L 800L 1000L 1300L
Interior size (WXH XD cm) 30 40 50 40 60 70 70 100 100 100
40 40 50 50 40 70 75 100 100 100
30 40 40 50 46 48 80 80 100 130
Temperature range ,R: -20ºC~ +150 ℃ L :-40ºC~ +150 ℃ S: -70ºC~ +150 ℃ (can be make as your requirements)
Temp Deviation

≦ ± 2.0℃



Temp Fluctuation ±0.5℃
Heat up rate

Heating up rate:from -20℃ ↑ +80℃ Nonlinear 2℃min no load



Humidity range

10%R.H~98%R.H



Cooling rate

Cooling rate:from +80℃ down to -20℃ Nonlinear 3℃min no load



Chamber size

Interior size: W 1280 × H 1000× D 1000 mm



Load

Product calorific value 1000w



Insulation box

 Wall material: high-quality carbon steel



nner wall material: SUS304 # matte stainless steel plate



 Insulation materials: rigid polyurethane foam insulation layer + glass fiber.



Other specification


Door

Single door, left open. Heating wire was installed at the door frames to prevent



condensation at low temperatures.

Water outlet hole

Available for drain the condensate water



Lighting device

LED Lighting device *1 located on observation window



Heater

High quality nickel-chromium alloy wire electric heaters,



Non-contact control mode(SSR)

Condensate drain hole

With workroom condensate and condensate drain.

Cable port

Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover



Shelf for samples

stainless steel sample holder 8pcs,Adjustable, load capacity 30kg/ layer




Application :

It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and

materials under the conditions of high and low temperature and high temperature and humidity. For quality

and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and

other products, parts and materials.



Feathers



● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test



● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test



● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test



● GJBl50.3-2009(MIL-STD-810D) High Temperature Test



● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test



● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test



● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test



● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test

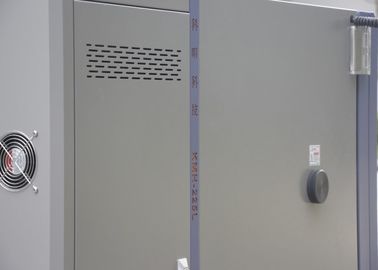

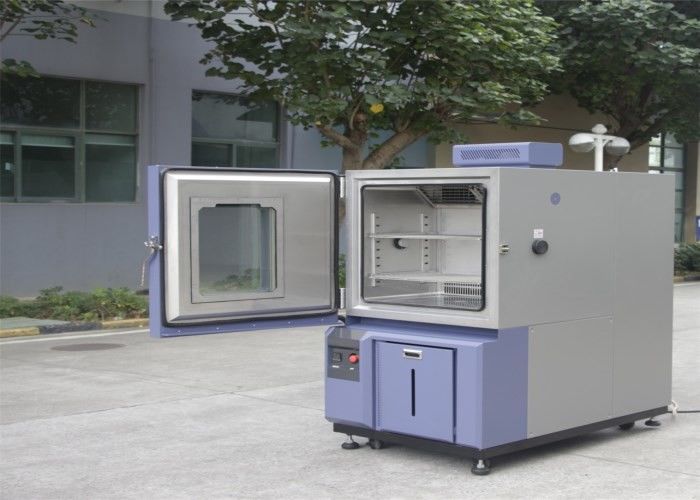

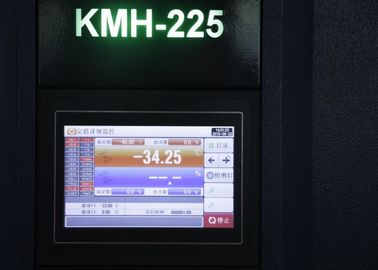

Photos show



Touch Screen Temperature Humidity Controlled Cabinets Reliability Testing Different Size



Touch Screen Temperature Humidity Controlled Cabinets Reliability Testing Different Size
