Environmental Temperature Humidity Chamber With Large Observation Door

China Environmental Temperature Humidity Chamber With Large Observation Door supplier
Environmental Temperature Humidity Chamber With Large Observation Door supplier Environmental Temperature Humidity Chamber With Large Observation Door supplier Environmental Temperature Humidity Chamber With Large Observation Door supplier

Large Image :  Environmental Temperature Humidity Chamber With Large Observation Door

Product Details:

Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: KMH408

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs/day
Contact Now
Detailed Product Description
Cable Port: Φ50mm*1 Located On Each Side Of Chamber, With Rubber Stopper And Stainless Steel Cover Humidity Uniformity: 3.0%RH (no-load)
Interior Material: SUS 304 Ramping And Soaking Rate: Heating Up Rate: -20℃↑ +100℃ About 35min (no-load, Ambient Temperature +25℃) Cooling Rate: 20 ℃to -20℃ About 45min (no-load, Ambient Temperature +25℃)
Humidity Deviation: ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) Cooling Mode: Water Cooled


Environmental Temperature Humidity Chamber With Large Observation Door

OEM and ODM are welcome  , more detail information ,pls kindly contact :anna@komegtech.com

Description :

It can simulate different environment condition. It's appropria-te for testing material

performance, such as resist heat, resist dry,resist humidity and resist cold. That can define

perform-ance of material.


Specification

Different size for choose


Model KMH-
36 64 80 100 150 225 408 800 1000 1500
Working Chamber Volume (litter 36L 64L 80L 100L 150L 225L 408L 800L 1000L 1500L
Interior size (WXH XD cm) 30 40 50 40 60 70 70 100 100 150
40 40 50 50 40 70 75 100 100 100
30 40 40 50 46 48 80 80 100 100
Temperature range

L style :-20℃ ~ +150℃

R style : -40℃ ~ +150℃

S style : -70℃ ~ +150℃(different temperature range per customer requirements )

Temp Deviation ≦ ± 2.0℃
Temp Fluctuation ±0.5℃
Ramping and soaking rate

Heating up rate: -40℃↑ +100℃ about 45min (no-load, ambient temperature +25℃)
Cooling rate: 20 ℃to -40℃about 60min (no-load, ambient temperature +25℃)

Humidity range 20%R.H~98%R.H
Humidity deviation


±5.0%RH(≤75%RH)

Humidity uniformity 3.0%RH (no-load)
Humidity fluctuation ±2.0%RH
Humidifier

Water basin heating and humidification method;
Stainless steel sheathed heater;
Heater control: no-contact control (SSR);
Water level control device, heater anti-dry device



Cooling System


Working mode Mechanical compression refrigeration
Compressor Europe and the United States imported hermetic compressor
Refrigerant Environmental-friendly refrigerant: R404A
Condenser Shell and Tube condenser(air -cooled)
Ambient temp. and humidity +5 ~ 35℃
Evaporator Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of low temperature and humidity conditions
Other accessories Use internationally-known brand, such as high precise expansion valve, oil extractor, dryer and many other accessories.
Refrigerant flow control Adjust energy consumption output and control automatically to the refrigeration system.
Refrigeration Technology

※ Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable.
※water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber.

Pre-set function Boot time can be set freely and machine runs automatically when turning on power

Application :


The chambers is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Programmable Temperature Humidity Climatic Test Chamber Price applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

Feathers

● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test




Competitive Advantage

1. Have 27 years experience on environmental chambers and standard environmental chambers, Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude chambers, temperature chambers, temperature and humidity chambers, environmental test chamber manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in chambers, laboratory test chambers, environment test rooms.

2. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.


3.  NO 1 BEST SELLER


KOMEG brand of temperature and humidity test chamber is the ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range. Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 150 °C and 10% to 98% RH.Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 150 °C with humidity.

For more detail information ,kindly contact : anna@komegtech.com  whats app ,wechat :+86-18029096856



Photos show

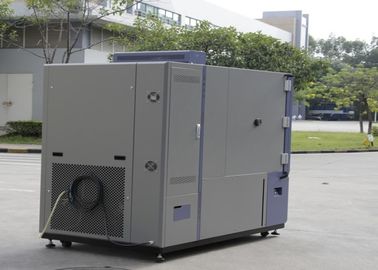

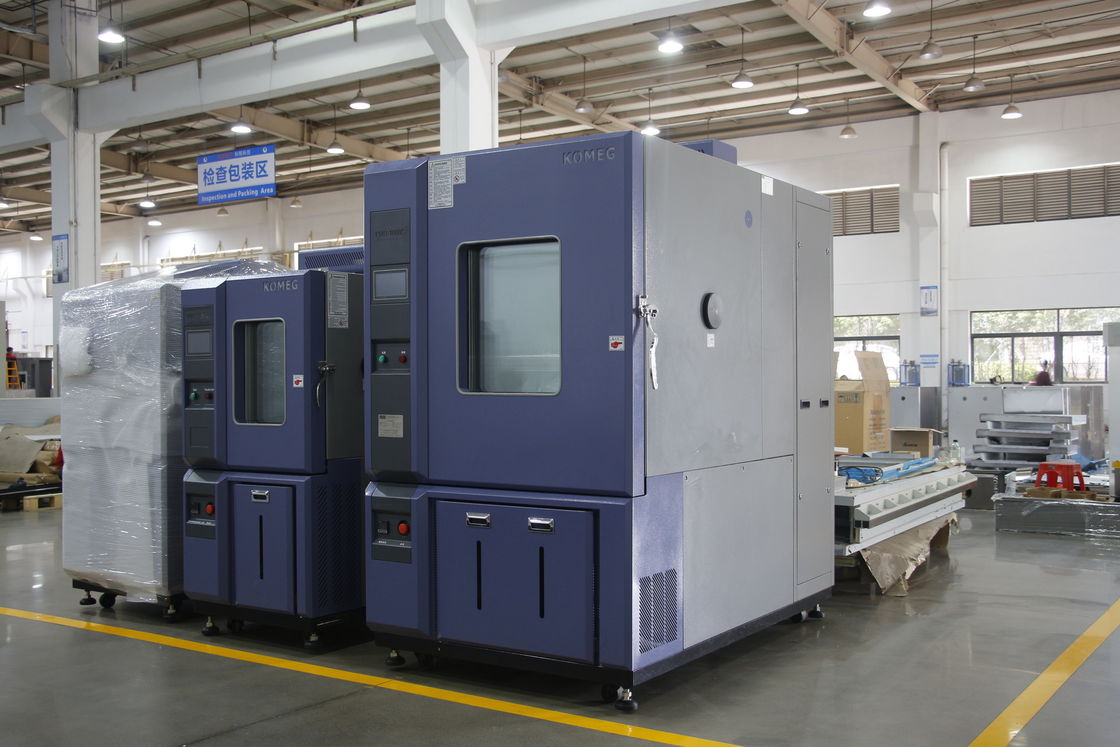

Environmental Temperature Humidity Chamber With Large Observation Door
